Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XTG4000
MOQ :
5 sets
Price :
$1000-$1200
Packaging Details :
square steel frame and wooden box
Delivery Time :
15-30 days
Payment Terms :
T/T, Western Union, MoneyGram, Cash
Supply Ability :
800 sets per month
Lifting Capacity :
4000kg (3500kg,3800kg,4200kg,4500kg,5000kg)
Lifting Height :
1800mm
Total Width :
3340mm
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift
Total Height :
3700mm
Width between piliars :
2800mm
Lane width :
2520mm
Description

Manual Lock Release Clear Floor 2 Post Car Lift 4000kg/1800mm

Top Selling Car Lifts 4000kg/1800mm Gantry Auto Lift Manual Lock Release Clear Floor 2 Post Car Lift

Features

  • Clear floor design makes the operator work easier under the vehicle.
  • Adopt double cylinder, plate chain and steel rope balance system to make lifting stable
  • Hydraulic power unit configuration throttling device, can adjust the rate of decline.
  • Manual lock release.
  • The two stage arm design is suitable for different kinds of vehicle chassis.
  • Retractable tray with three screw designed, adjustment range from 85mm to 115mm
  • With 24V limit switch;
  • Preventing rubber pad and foot protection.
  • Safety guard
  • Adopt 360°circumferential teeth of limit lock, strengthen the tensile strength and reliability.
  • Pass 115% dynamic and 150% static loading test.
  • CE approved.

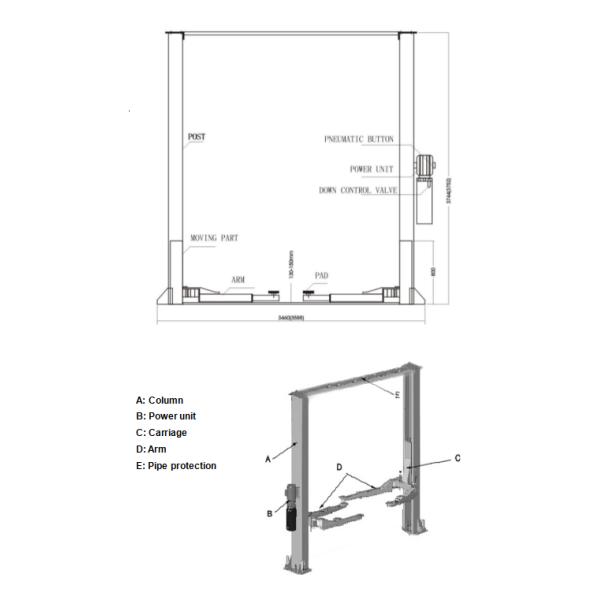

Technical Drawings

Top Selling Car Lifts 4000kg/1800mm Gantry Auto Lift Manual Lock Release Clear Floor 2 Post Car Lift

Technical Parameters

Lifting height 1800mm
Lifting capacity 4000kg
Lifting time 45s
Total height 3700mm
Total width 3340mm
Width between Columns 2800mm
Lane width 2470mm
Power 2.2KW / 3.0KW
Power Supply 220V/380V, 1ph/3ph,50Hz/60Hz

Functions for Optional

Lock Release

two sides lock release

one side lock release

electric lock release
Lifting Arm

2 sections lifting arms

3 sections lifting arms
Column Design

6 fold column

8 fold column S column
Oil Drum plastic drum, steel drum

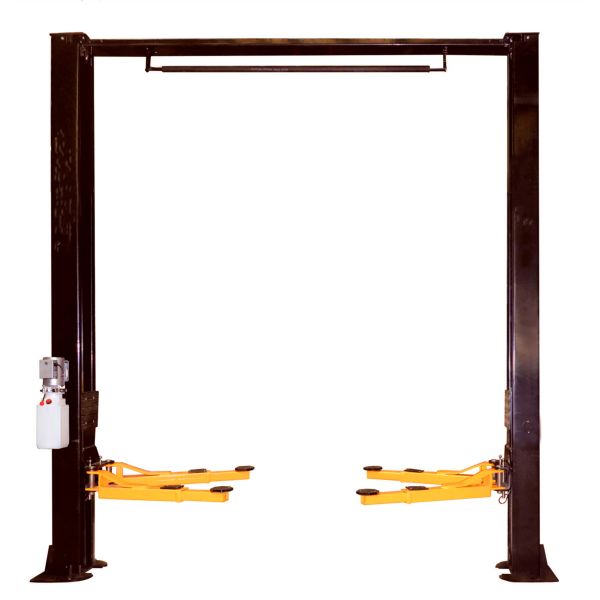

Detailed Pictures

Top Selling Car Lifts 4000kg/1800mm Gantry Auto Lift Manual Lock Release Clear Floor 2 Post Car Lift

More Models for option

Top Selling Car Lifts 4000kg/1800mm Gantry Auto Lift Manual Lock Release Clear Floor 2 Post Car Lift
