Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XTF4000E
MOQ :
3 sets
Price :
$1200-$1350/set
Packaging Details :
square steel frame and wooden box
Delivery Time :
15-30 days
Payment Terms :
T/T, Western Union, MoneyGram, Cash
Supply Ability :
800 sets per month
Lifting Capacity :
4000kg(4500kg, others is optional)
Lifting Height :
1800mm
Total Width :
3460mm
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift
Width between pillars :
2800mm
Description

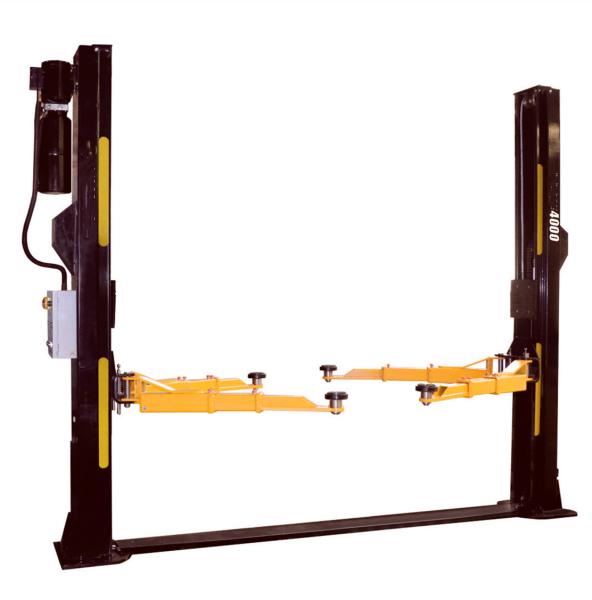

Floor Plate Two Post Car Lift 4000kg/1800mm with Electric Lock Release

Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm

Features

  • 4000KG lifting capacity
  • Electrical release at single side
  • Solid reliable lifting arm and sliding table.
  • Aluminum shell motor prevents overheated;
  • Operating control system with 24V safety voltage;
  • 24V height limit switch provided;
  • Preventing rubber pad and foot protection ;
  • Screw type support and height support
  • Hydraulic pressure pre-setting can avoid lifting exceed rated load.
  • Remote control as option.
  • Pass 115% dynamic and 150% static loading test.
  • CE approved.

Technical Drawings

Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm

Technical Parameters

Lifting Capacity 4000kg
Lifting Height 1800mm-110mm
Lifting Time 50-60s
Total Height 2790mm
Total Width 3340mm
Width between pillars 2800mm
Lane Width 2470mm
Power Supply 220v/380v,1ph/3ph, 50/60Hz
Net Weight 530kg

Functions for Optional

Lock Release

two sides lock release

one side lock release

eletric lock release
Lifting Arm

2 sections lifting arms

3 sections lifting arms
Column Design

6 fold column

8 fold column S column
Oil Drum plastic durm, steel drum

Detailed Pictures

Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm

Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm

More Models for option

Top Quality Floor Plate Car Lifts Electric Lock Release 2 Post Car Lift 4000kg/1800mm
