In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XSG3200
MOQ :
3 sets
Price :
$1570- $1830
Packaging Details :
wooden box and carton
Delivery Time :
15-30 days
Payment Terms :
T/T, Western Union, MoneyGram, Cash, L/C
Supply Ability :
800 sets per month
Lifting Capacity :
3200kg
Lifting Height :
1800mm
Design :
Scissor
Type :
Double Cylinder Hydraulic Lift
Total Length :
1550mm(singe puller)/1700mm (double puller)
Total Width :
1900mm
Warranty :
5-Year Structural Parts, 2-Year Hydraulic Electric
Description

Tubular Arm Design In Floor installation Scissor Car Lift 3200kg/1800mm

In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation

Features

  • In-ground installation;
  • Double cylinder structure, 300mm under trench installation;
  • Aluminum shell motor prevents overheated;
  • Operating control system with 24V safety voltage;
  • With 24V limit switch;
  • Safety signal when lowering to 500mm above ground.
  • Two platforms can extend for different length of vehicles;
  • Pass 115% dynamic and 150% static loading test.
  • CE approved.

Technical Drawings

In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation

Technical Parameters

Lifting capacity

3200KG

Lifting height

2100mm (300mm+1800mm)

Mini height

300mm

Platform length

1550mm/1700mm

Platform width

550mm

Width between platforms

800mm

Lifting time

50-60s

Motor power

2.2KW

Power supply

1ph/3ph, 220V/380V, 50/60Hz

N. Weight

820KG

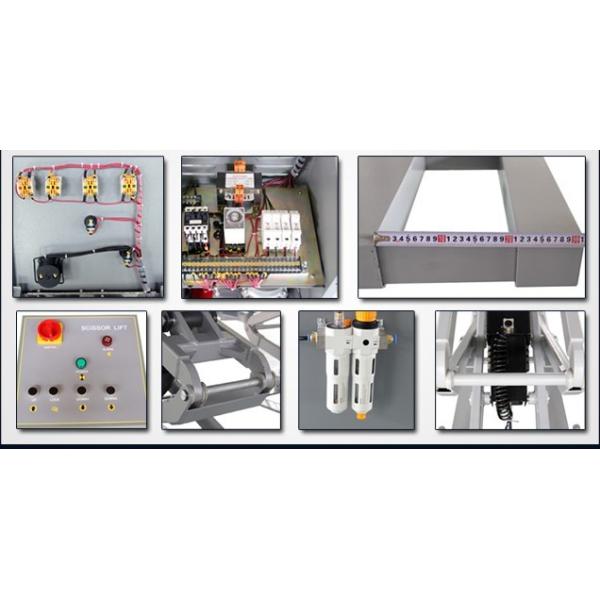

Detailed Pictures

In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation

In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation

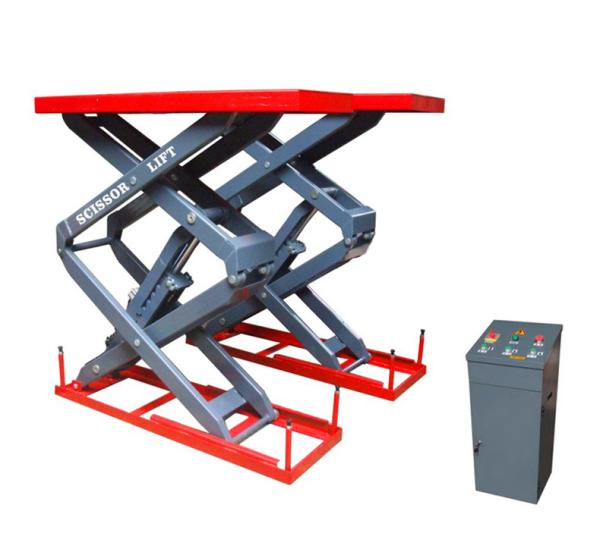

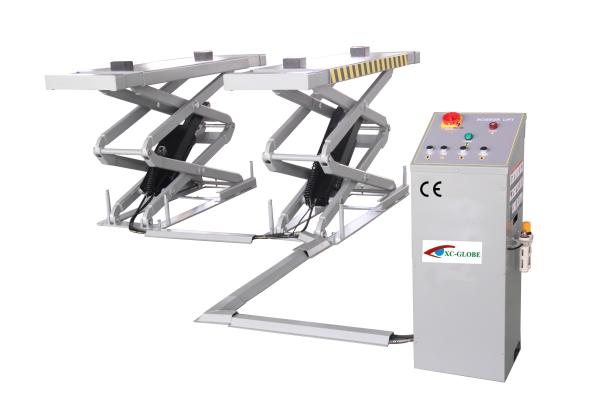

More Models for option

In Floor Scissor Car Lifts 3200kg/1800mm Tubular Arm Design Scissor Car Lift In Ground Installation
