WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
Specifications
Brand Name :
WNK
Model Number :
WNK8010-TT
Place of Origin :
Anhui, China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 Piece/Pieces per Month level pressure sensor
Delivery Time :
5-8 work days
Packaging Details :
Each set into one individual carton, protection with foam. Then into master carton
Warranty :
1 YEAR
Customized support :
OEM, ODM
Pressure range: :
0...2~200 metres
Output :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy :
0.2%FS, 0.5%FS,
Power supply :
12~36VDC
Protection class :
IP68
Application :
Rainwater, Drinking water,Wastewater, Sewage, Seawater
Housing Material :
304SS, 316L
Operating temperature: :
-40~85 ℃
Type :
Gauge
OEM service :
OEM, ODM, customization available
Port :
Shanghai/Ningbo
Description

Underground Water Tank Level Sensor

Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

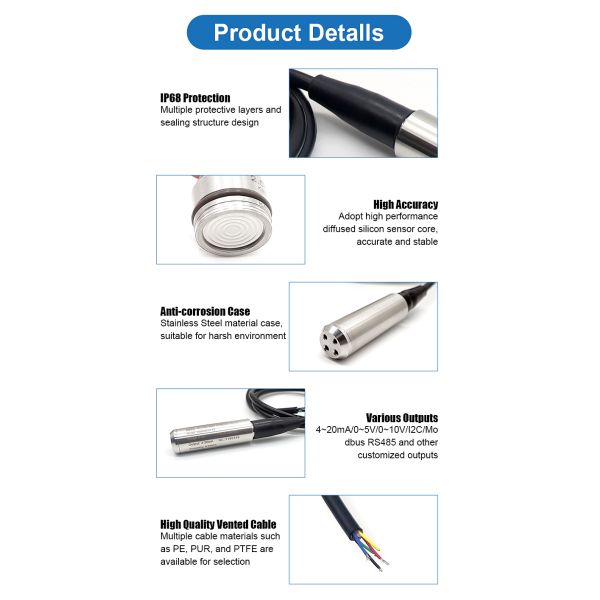

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

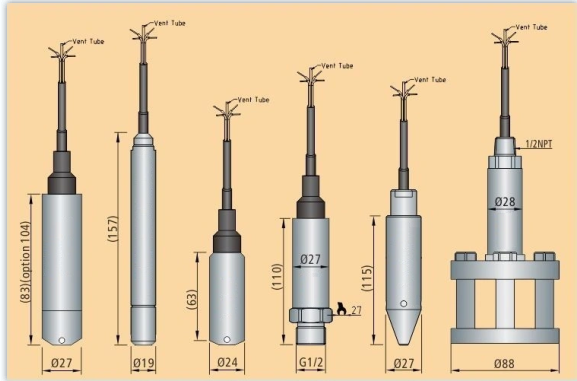

Dimensions - IP68 Sumbersible Liquid Level Sensor

WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
Product Show
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank
