WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel
Specifications
Model Number :
wnk8010
Pressure range :
0...1~200 metres
Application :
Rainwater, Drinking water,Wastewater, Car washes, Seawater
Brand Name :
WNK
Port :
Shanghai, Ningbo, Shenzhen, Guangzhou
Certification :
CE
Housing material :
304SS, 316L
Supply Ability :
3000 Set/Sets per Week water level sensor
Power supply :
12~36VDC
Packaging Details :
Each set into one individual carton, protection with foam. Then into master carton
Sensor Contact :
316L
Ingress Protection :
IP68
Place of Origin :
Anhui, China
Price :
$35.00 - $50.00/Pieces
MOQ :
1pcs
Delivery Time :
5-8 work days
Customized support :
OEM, ODM
Grade :
Industrial
Output signal :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy :
0.2%FS, 0.5%FS,
Working temperature :
-40~85 ℃
Pressure type :
Gauge
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Warranty :
1 YEAR
Description

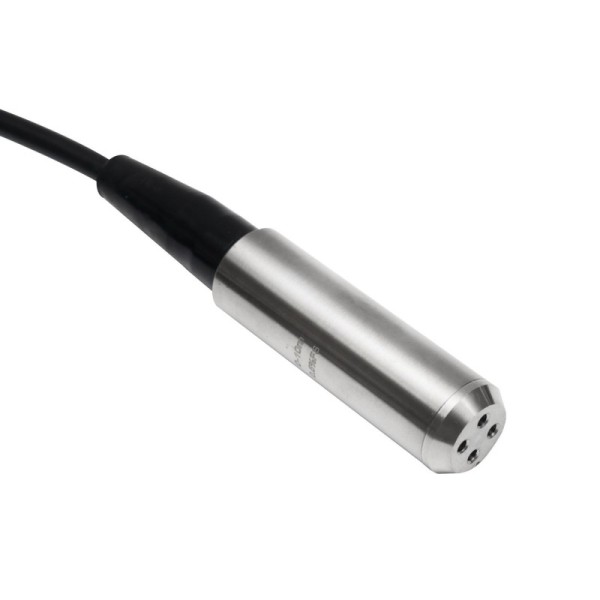

Submersible Water Level Sensor With Rs485 Modbus


- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)


Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price


WNK RS485 Modbus Submersible Water Level Sensor for Water and DieselWNK RS485 Modbus Submersible Water Level Sensor for Water and DieselWNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel

WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel


WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel



Company Information


WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel

Certification

WNK RS485 Modbus Submersible Water Level Sensor for Water and Diesel

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
