0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
0-5M Measuring Range 4-20mA Submersible Water Level Sensor For Deep Wells
Specifications
Brand Name :
WNK
Model Number :
WNK8010-T
Certification :
CE/ROHS
Place of Origin :
Anhui, China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 Piece/Pieces per Week Water Tank Level Sensor
Delivery Time :
5-8 work days
Packaging Details :
Each set into one individual carton, packed with foam protection
Grade :
Industrial
Warranty :
1 year
Customized support :
OEM, ODM
Pressure range :
0-200 metres
Accuracy :
0.2%FS, 0.5%FS
Output signal :
4-20mA, 0-5V, 0-10V
Application :
liquid, water
Pressure type :
Guage Pressure
Power supply :
12~36VDC
Working temperature :
-40~85 ℃
Process connection :
G1/2, Customization
Compensation temperature :
-20~70℃
Keywords :
Hydrostatic Level Sensor/ Water Tank Level Sensor
Port :
Shanghai, Ningbo, Other ports in China
Description

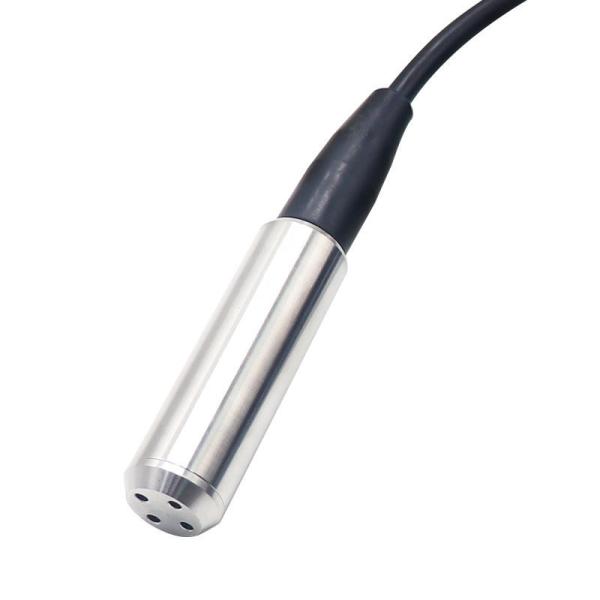

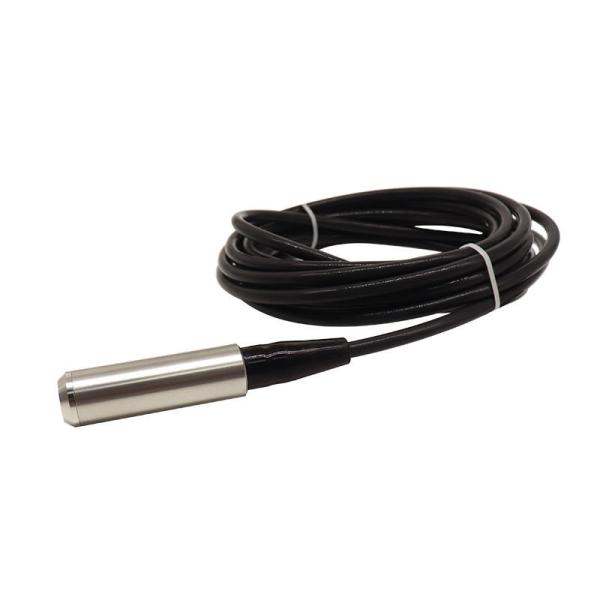

WNK 0-5M 0.5-4.5Submersible Water Level Sensor for Deep Wells

WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.

Applications:

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features:

• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Specification
Output
4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range
0-0.5~200mH2O
Overload
150% of sensor range
Measuring medium
Liquid
Accuracy
±0.2%FS, ±0.5%FS
Stability
0.25%FS/ year
Housing material
Stainless steel
Cable material
Polyvinyl Fluoride, PTFE
Power Supply
24VDC
Ambient temperature
-20~85℃
Process temperature
-20~85℃
Compensation temperature
-20~85℃
Protection class
IP68
