Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Specifications
Brand Name :
WNK
Model Number :
WNK125SP
Place of Origin :
Chian
Mechanical Connection :
M6*1, Customized
Applicable Media :
Liquid, Gas
Pressure type :
Gauge Pressure, Absolute Pressure
Toal error band :
±1.0%
Pressure Range :
0-5bar, 0~10bar, 0~20bar, 0~40bar
Power Supply :
5VDC
Output :
0.5~4.5V,I2C
Accuracy :
±1%FS
Description

WNK Low Cost Pressure Sensor for Beer Coffee Machine




The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media
Liquid, Gas
Pressure Range
5bar,10bar,20bar,40bar
Pressure measurment
Gauge Pressure,Absolute pressure
Output
0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.(Typical)
Power supply
5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Power(electrical) connect
Customization Connector, Cable outlet
Mechanical Connection
M6*1
Housing Material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP68

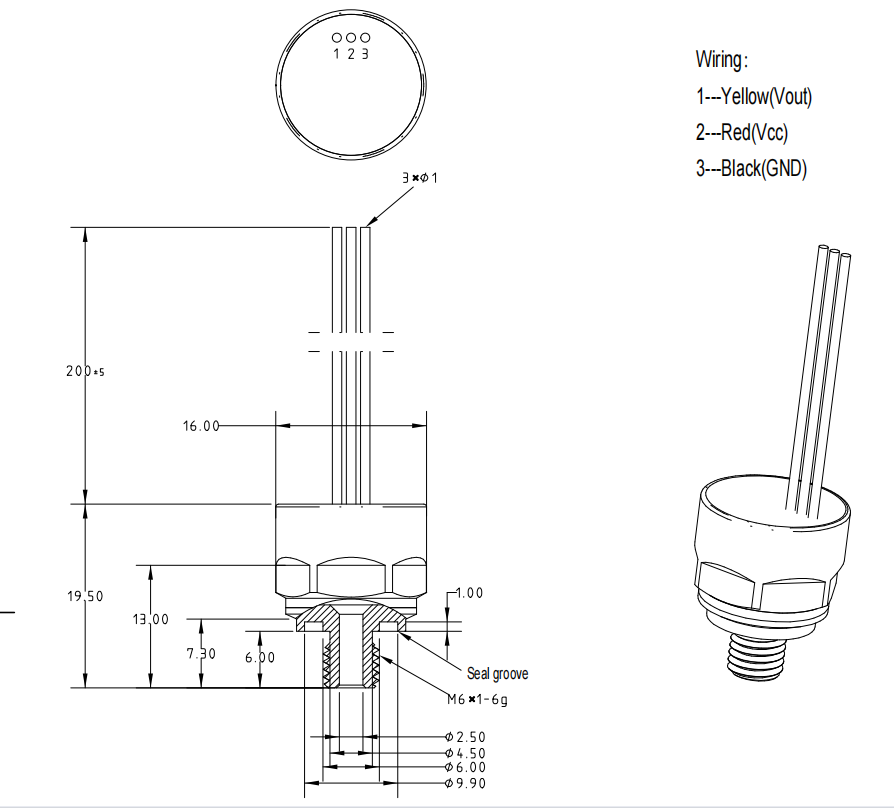

Dimensions
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee MachineLow Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
AQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
