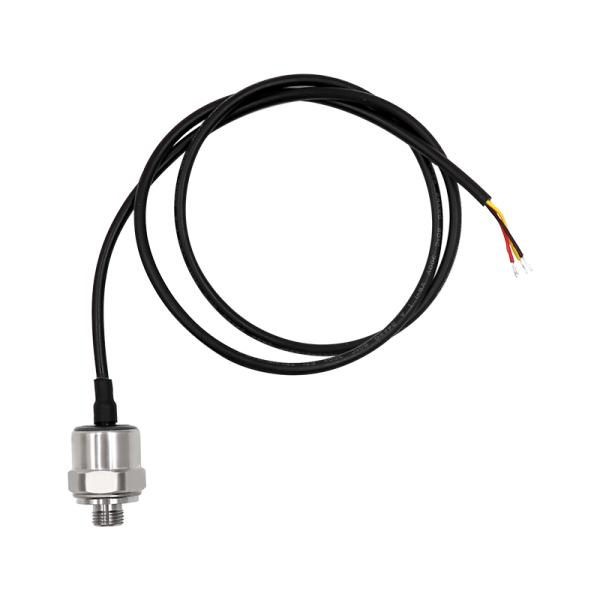

WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
WNK 0.5-4.5V Air Compressor Pressure Sensor Pressure Transmitter for Engine Process Control and Automation
Specifications
Brand Name :
WNK
Model Number :
WNK125P
Place of Origin :
Chian
Storage Temperature :
-50℃~135C
Meadium :
Engine Oil, POE Oil, Refrigerant, Gas, Water Or Liquid
Accuracy :
+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Electrical connector :
Packard/ Cable Outlet
Pressure Range :
0~5Bar, 0~10Bar, 0~20Bar, 0~40Bar, (Cutomized)
Output :
0.5V~4.5V DC,(10%-90%Vcc)
Process Connection :
G1/ 4, 7/ 16-UNFfemale, (cusomized)
Material :
Housing 304 SST; Wetted Parts 316L
Description
Product Description
Model
WNK125P
Power Supply
4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current
15mA MAX
Pressure range
0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output
0.5V~4.5V DC,(10%-90%VCC)
Process Connection
G1/4,7/16-UNFfemale,(cusomized)
Electrical connector
Pack
Working Temperature
-40℃C~130℃℃
Storage Temperature
-50℃~135C
Safe Pressure
1.5~2 time of the pressure range
Burst Pressyre
100Bar G
Accuracy
+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band
Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium
Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque
10~20N·m
Anti-freeze function
The sensor has no anti-freezing function when the sensor's working medium is water.
Material
Housing 304 SST; wetted parts 316L
The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Dimensions
Customer Feedback
Product Show
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
