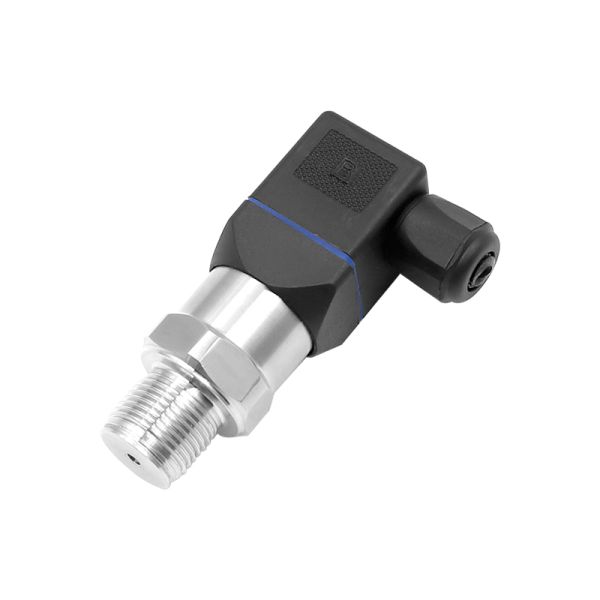

WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
Specifications
Brand Name :
WNK
Model Number :
WNK81ma
Certification :
CE/ROHS
Place of Origin :
Chian
Measured media :
Water, Air, Gas, Steam
Housing material :
304SS, 316SS
Accuracy :
0.5%FS
Pressure range :
10kpa, -100kpa...70Mpa
Applications :
Water Air Refrigerant HVAC, Automobile
Output signal :
4-20mA, 0.5-4.5V, 0--10V, 3.3V, I2C, RS485
Pressure Type :
Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating :
IP65
Description

WNK Hirschmann Absolute Pressure Sensor

Product Description

Electrical connection DIN43650
Power supply 24V DC
Pressure type Gauge Absolute Pressure Seal Pressure
Output signal 4-20mA 0.5-4.5V
Work temperature 40-85C
Accuracy 0.5%FS 1%FS
Pressure range 10 Kpa-60 Mpa
Sensor Type Diffused silicon

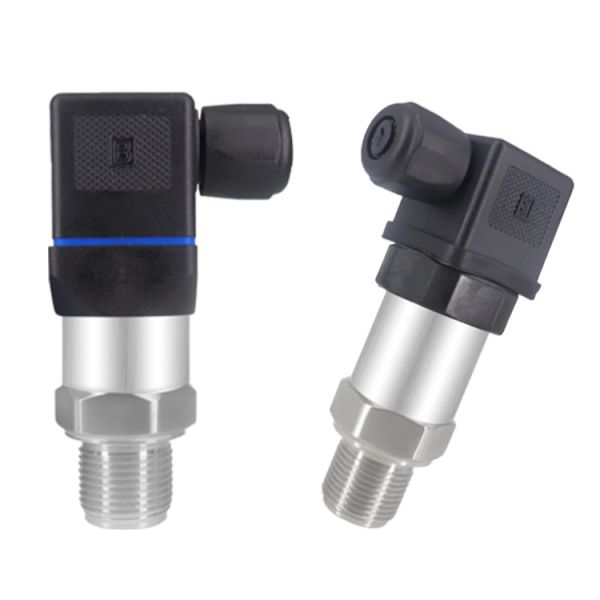

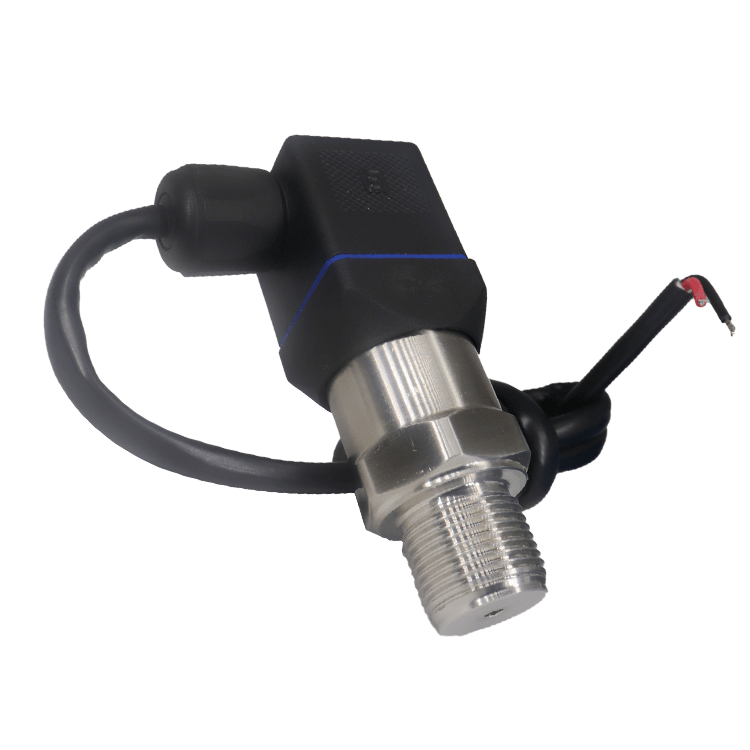

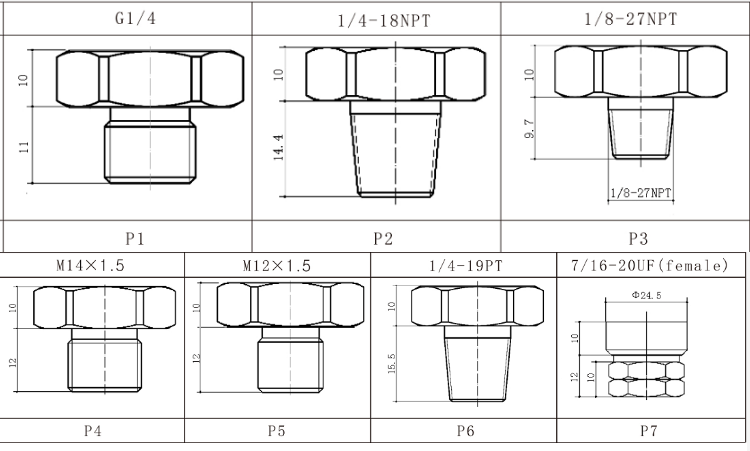

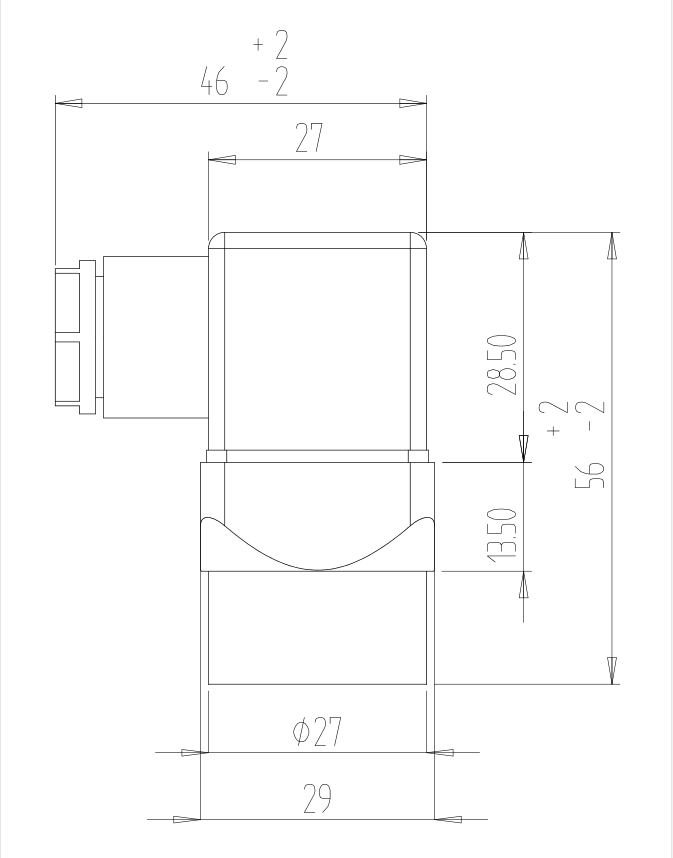

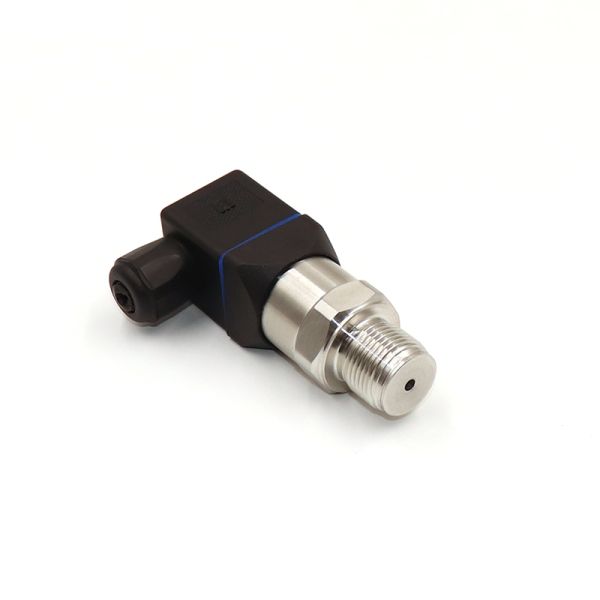

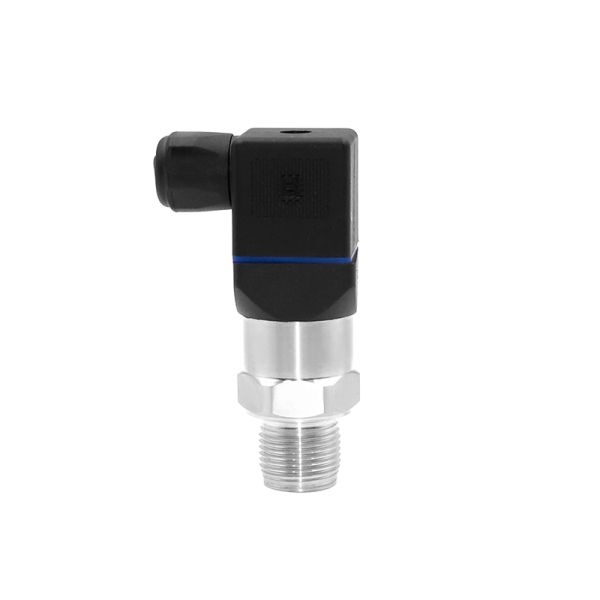

Product Show

WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas

WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas

WNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil GasWNK81MA 4-20mA 0.5-4.5V Diffused Silicon Pressure Sensor for Air Oil Gas
