Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Specifications
Brand Name :
WNK
Model Number :
WNK125P
Place of Origin :
Chian
Storage Temperature :
-50℃~135C
Meadium :
Engine Oil, POE Oil, Refrigerant, Gas, Water Or Liquid
Accuracy :
+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Electrical connector :
Packard/ Cable Outlet
Pressure Range :
0~5Bar, 0~10Bar, 0~20Bar, 0~40Bar, (Cutomized)
Output :
0.5V~4.5V DC,(10%-90%Vcc)
Process Connection :
G1/ 4, 7/ 16-UNFfemale, (cusomized)
Material :
Housing 304 SST; Wetted Parts 316L
Description
WNK SS316L G1/4 Pressure Sensor for Boiler Coffee Machine
Product Description
Model
WNK125P
Power Supply
4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current
15mA MAX
Pressure range
0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output
0.5V~4.5V DC,(10%-90%VCC)
Process Connection
G1/4,7/16-UNFfemale,(cusomized)
Electrical connector
Pack
Working Temperature
-40℃C~130℃℃
Storage Temperature
-50℃~135C
Safe Pressure
1.5~2 time of the pressure range
Burst Pressyre
100Bar G
Accuracy
+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band
Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium
Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque
10~20N·m
Anti-freeze function
The sensor has no anti-freezing function when the sensor's working medium is water.
Material
Housing 304 SST; wetted parts 316L
The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

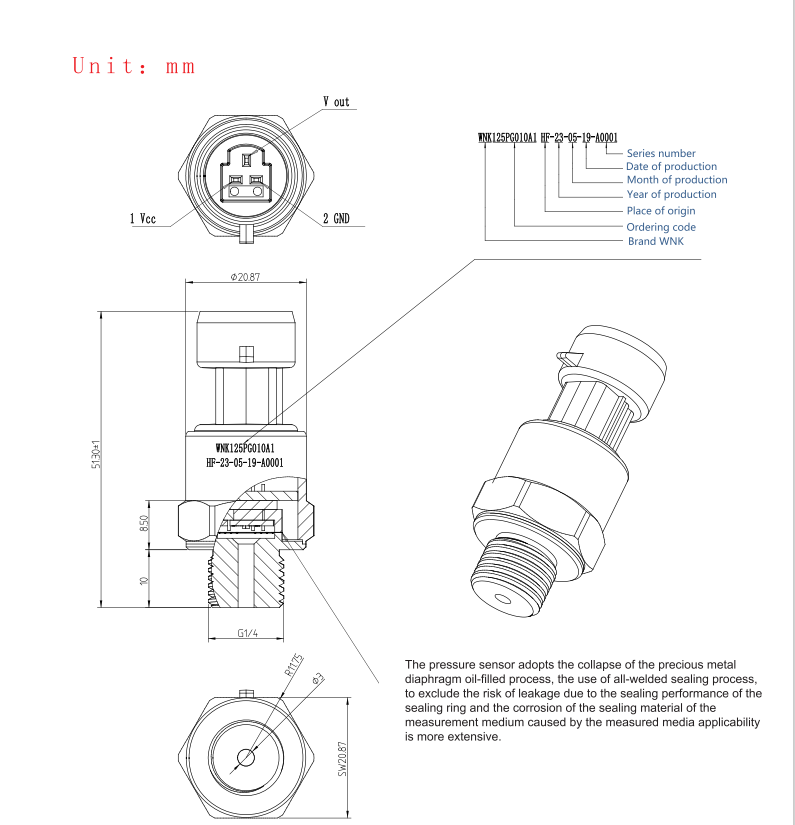

Dimensions
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Customer Feedback
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Product Show
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine
