36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
wnk8010
Packaging Details :
Each set into one individual carton, protection with foam. Then into master carton
Supply Ability :
3000 Set/Sets per Week water level sensor
Price :
$35.00 - $50.00/Pieces
MOQ :
1pcs
Payment Terms :
T/T, Western Union, , Paypal
Delivery Time :
5-8 work days
Grade :
Industrial
Warranty :
1 YEAR
Customized support :
OEM, ODM
Pressure range :
0...1~200 metres
Accuracy :
0.2%FS, 0.5%FS,
Output signal :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application :
Rainwater, Drinking water,Wastewater, Car washes, Seawater
Ingress Protection :
IP68
Power supply :
12~36VDC
Working temperature :
-40~85 ℃
Pressure type :
Gauge
Housing material :
304SS, 316L
Sensor Contact :
316L
Port :
Shanghai, Ningbo, Shenzhen, Guangzhou
Description

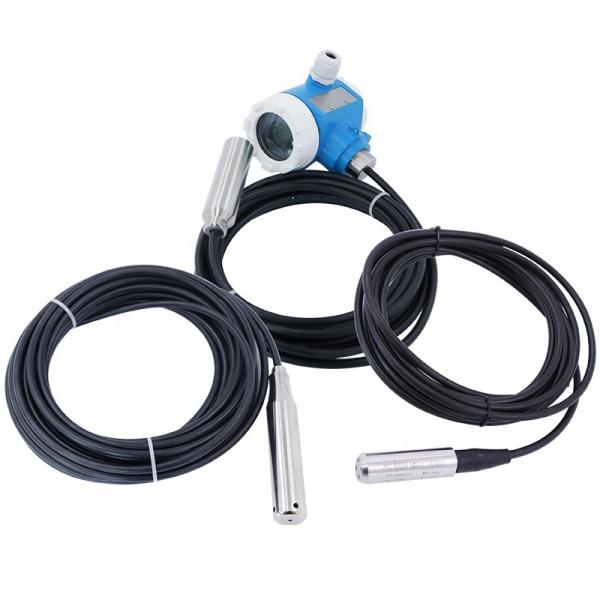

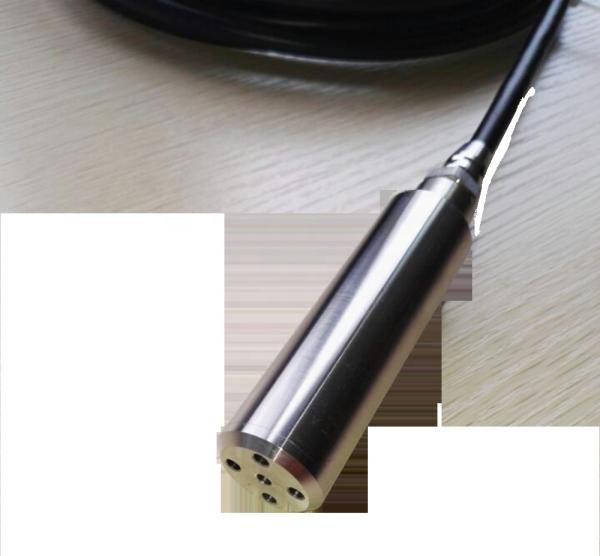

4-20mA Submersible Liquid Level Transmitter/Hydrostatic Water Level Sensor

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Product Name
High Stability 4-20mA Liquid Level Sensor Transmitter For Drinking Water
Pressure measurment
Liquid,Water
Accuracy
±0.25% FS/year, ±0.5% FS/year
Output
4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, IIC,HART,RS485
Power supply
24V/12V/5V/3.3V
Ambient/Process/Compensation temperature
-20~80℃
Housing material
Stainless steel
Ingress Protection
IP68


Product Show

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

Specifications

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor


Low Cost Water Level Sensor For Deep Well/ Open Tank/Pool

Ordering Code

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

Company Information

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

Exhibition

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

Certification

36VDC Water Level Transmitter , WNK Hydrostatic Liquid Level Sensor

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

Send us inquiry message at the bottom of this page to get reply within 2 hours
