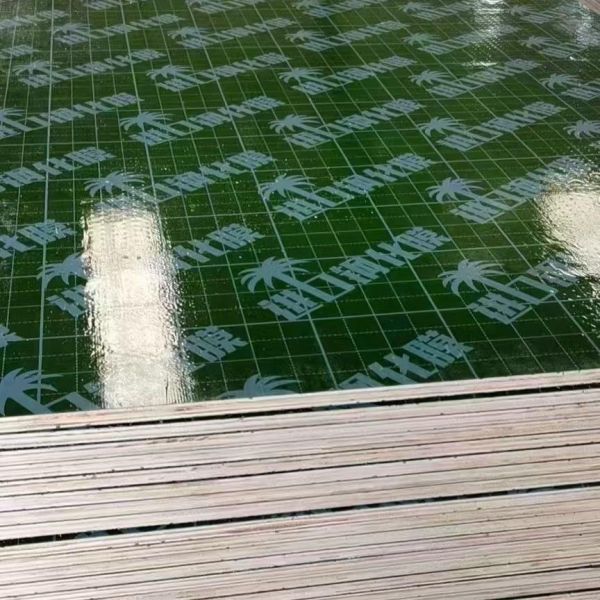

Green Film Faced Shuttering Plywood 18mm Thick for Slab and Wall Form
Product Overview
Green Plastic Film Faced Plywood is a high-performance concrete formwork panel featuring a green phenolic film coating on both sides. Designed for durability and repeated use, it provides a smooth concrete finish ideal for demanding construction projects like bridges, tunnels, and high-rise buildings.
Features & Functions
- Exceptional Durability: High-density phenolic film and waterproof glue provide excellent resistance to water, moisture, abrasion, and chemicals, ensuring long-lasting performance.
- Superior Concrete Finish: Delivers a consistently smooth, uniform concrete surface, reducing post-construction finishing work and saving time and labor costs.
- High Reusability: Engineered for 30+ reuses under normal conditions, offering excellent cost efficiency and reducing material waste.
- Easy Handling & Storage: Lightweight yet strong, easy to cut, drill, and install. The green film also resists UV exposure, preventing degradation during outdoor storage.
Key Specifications
- Core Material: Poplar, Eucalyptus, or Hardwood
- Film Color: Green, also available in brown/black
- Sizes: 1220x2440mm, 1250x2500mm (customizable)
- Thickness: 12mm, 15mm, 18mm, 21mm
- Reuse Times: 30+ cycles
- Glue Type: WBP (Weather & Boil Proof) waterproof glue
Competitive Advantages
- Optimized Cost Efficiency: Balances moderate initial cost with high reuse potential, delivering lower long-term expense compared to standard plywood.
- Enhanced Project Performance: Consistent quality ensures reliable results across pours, improving project timelines and reducing finishing costs.
- Eco-Friendly & Sustainable: Made from renewable wood sources with waterproof, low-emission glue, supporting sustainable construction practices.
Specifications & Features
| Item |
Specification & Features |
| Product Name |
Film Faced Plywood |
| Core Material |
Poplar/Birch/Eucalyptus/Combine |
| Color of film faced paper |
Brown/Red/Black/Customized Pattern |
| Glue |
Melamine glue/Phenolic glue/MR Glue |
| Size(mm) |
1200×1800, 1200×2400, 1220×2440, 1250×2500, etc. |
| Length (width) Tolerance |
+/-2mm |
| Thickness(mm) |
8-30mm |
| Thickness tolerance |
+/-0.5mm |
| Density |
550-770kg/m³ |
| Number of Layers |
from 5 up to 21 depending on thickness |
| Processing of edge |
waterproof paint in different color |
| Moisture Content |
6-12% |
| Manufacturing Process |
a. First or second level veneer formed by one-time hot pressing. b. First or second level veneer formed by two-times pressing, one-time cold press and one-time hot press. c. First grade veneer formed by three-times pressing, one-time cold press, one-time burnishing&press and one-time hot press. d. Recycling film faced plywood insertion/finger connection for one-time hot pressing molding. |
Application Scope
- Construction Industry: As one of the molds for concrete pouring, film faced plywood is widely used in various construction buildings, such as high-floor apartments, commercial buildings, villas, bridges, hospitals, schools, and so on.
- Outdoor Stage: The film paper on the surface of the Film Faced Plywood can be customized to press and stick the anti slip facial mask paper, which is used for various types of outdoor stage construction.
- Goods Shelves and Box Type Vehicle Flooring: Due to the waterproof, wear-resistant, and pressure resistant properties of Film Faced Plywood, they are also widely used in warehouses (shelves), railway freight cars, and truck floors and sidewalls.
Frequently Asked Questions
- How to get a sample? Is the sample chargeable or free? Please contact us via WhatsApp, WeChat, or email and let us know your real needs. We will promptly contact you and confirm the accurate requirements before mailing you the samples.
- Are you a trading company or a manufacturer? Firstly, we are a subsidiary foreign trade company of a group company, mainly responsible for operating the export business of formwork and scaffolding products for the group company. Secondly, our group company has two major production bases, specializing in the production and processing of formwork and scaffolding products for over 20 years.
- How to get quotation? Please provide us the required list with the details of production's quality, specifications, and quantity, and we will provide you with an accounting quotation.
- How long is your delivery cycle? Under normal circumstances, the delivery cycle is around 5 days. If you require fully customized production of the product, the delivery cycle is generally around 10-15 days.
- What is the payment method you require? T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy. Or L/C.
- What's your quality guarantee? We have 100% quality guarantee to customers. We will be responsible for any quality problem.
