High Strength Marine Board Film Faced Plywood with Phenolic Film Coating and Marine-Grade Core for Concrete Formwork
High Strength Marine Board Film Faced Plywood with Phenolic Film Coating and Marine-Grade Core for Concrete Formwork
Specifications
Place of Origin :
Hebei,China
Density :
Around 520 kg/m3
Certification :
ROHS
Moisture Content :
6-12%
Price :
US $55.00 - 70.00/ Square Meter
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Thickness :
Typically ranges from 12mm to 25mm
Weight :
Varies depending on thickness and core material
Supply Ability :
1000 piece in 10 days
Specification :
1250*2500 (customized size)
Payment Terms :
T/T
Coretype :
Poplar, eucalyptus, or other hardwood cores
Delivery Time :
10-30 workday
Size :
Standard size 1220mm x 2440mm (4ft x 8ft)
Brand Name :
WKS
Product name :
Film Faced Plywood
Layers :
3/5/7/9/11/13/15/18 Layers
MOQ :
US $7.50 - 10.80/ Piece
Gluetype :
Melamine urea formaldehyde (MUF) or phenolic resin adhesive
Description

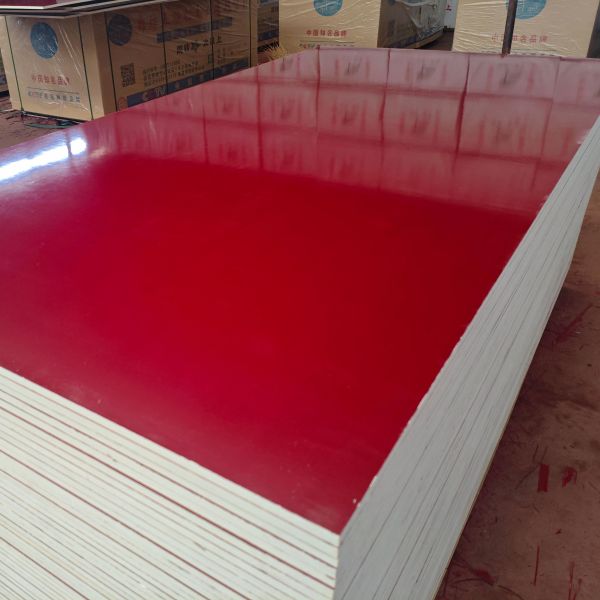

High Strength Marine Board Film Faced Plywood for Concrete Formwork
Product Overview

Marine Board Film Faced Plywood is a premium-grade concrete formwork panel engineered with a high-density hardwood core and a phenolic resin film coating on both surfaces. Combining the superior core quality of marine-grade plywood with the durable film facing of traditional formwork panels, this product delivers exceptional waterproof performance, outstanding reusability, and a smooth concrete finish. It is widely used in residential construction, commercial buildings, bridges, tunnels, and infrastructure projects where high-strength formwork and reliable concrete casting are required.

Key Advantages
  • Phenolic Film Coating - Provides a smooth, non-stick surface that releases cleanly from concrete and delivers a plaster-free finish
  • Marine-Grade Core - High-density hardwood construction with void-free bonding ensures structural integrity under heavy loads
  • Superior Waterproof Performance - WBP (Weather and Boil Proof) phenolic glue withstands extreme moisture and humid conditions
  • High Reusability - Delivers multiple pour cycles with proper maintenance, significantly reducing formwork costs
  • Excellent Dimensional Stability - Maintains flatness and thickness tolerance across repeated uses
  • Easy On-Site Handling - Can be cut, drilled, and installed with standard woodworking tools
Customization Capabilities

We offer full customization to suit your project requirements:

  • Panel sizes: 1220×2440mm, 1250×2500mm, 915×1830mm, 1200×1800mm (custom available)
  • Thickness: 6mm, 9mm, 12mm, 15mm, 18mm, 21mm, 25mm, 30mm
  • Film type: Black film, brown film, anti-slip film
  • Core materials: Poplar, birch, hardwood, combi core
  • Glue grade: MR, WBP melamine, WBP phenolic
  • Edge sealing: Waterproof acrylic paint treatment
Technical Specifications
Parameter Specification
Core Material Hardwood / Poplar / Birch / Combi Core
Film Type Phenolic (Black / Brown / Anti-slip)
Film Weight 120 g/m² (brown) - 240 g/m² (black)
Standard Sizes 1220×2440mm / 1250×2500mm / 915×1830mm
Thickness Range 6mm - 30mm
Glue Type WBP Phenolic (Water & Boil Proof)
Density 520-720 kg/m³
Moisture Content 8% - 12%
Thickness Tolerance ±0.5mm
Edge Treatment Waterproof paint sealing
Quality Features
  • High-density marine-grade core with void-free construction
  • Phenolic film overlay for superior release and concrete finish
  • WBP phenolic glue bond for maximum water resistance
  • Precision sanding for consistent thickness and flatness
  • Waterproof edge sealing to prevent delamination
Typical Applications
  • High-rise residential and commercial building formwork
  • Bridge deck and tunnel concrete lining
  • Column, beam, and slab formwork
  • Foundation and retaining wall construction
  • Precast concrete element manufacturing
  • Infrastructure and heavy civil engineering projects
Quality Assurance
  • Manufactured under strict quality control standards
  • Each panel inspected for thickness, dimensions, moisture content, and bonding strength
  • Premium raw materials sourced from certified suppliers
Lead Time & Minimum Order
  • Standard orders: 15-20 days
  • Custom projects: 20-30 days (depending on specifications)
  • Factory direct - competitive pricing
