Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant
Specifications
Brand Name :
WKS
Certification :
ROHS
Place of Origin :
Hebei,China
MOQ :
200/Piece
Price :
US $10.00 - 11.40/ Piece
Payment Terms :
T/T
Supply Ability :
1000 piece in 10 days
Delivery Time :
10-30 workday
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product name :
Ring Lock Scaffold
Color :
Silver
Material :
Q235
Diameter :
60mm&48mm
Pipe Wall Thickness :
3.0mm/3.2mm/3.25mm or customized
Surface Treatment :
Powder Coated/Hot Dip Galvanizing
Weight :
1.8KG-18.75KG according to different sizes
Length :
200mm/250mm/300mm/350mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm
Design Style :
Morden
Description
Ring-Lock Scaffolding System
Ring-Lock scaffold is an advanced modular scaffolding system, also known as chrysanthemum disc scaffold. Its robust supporting structure consists of upright poles, horizontal poles, and diagonal poles connected through an innovative disc system with eight holes - four small holes for horizontal poles and four large holes for diagonal poles.
System Advantages
Flexibility and Versatility
  • Single connection point accommodates multiple angles simultaneously
  • Capable of constructing complex scaffolding structures
  • Rapid installation reduces work time and saves space
Enhanced Safety Features
  • Single riser bearing capacity: 15-35kN, meeting safety technical specifications
  • Stable disc connections between vertical and cross rods improve overall structural stability
  • Reduced assembly errors for safer construction environments
Wide Application Range
  • Single and double row scaffolding for industrial and civil buildings
  • Horizontal concrete structure engineering formwork support
  • Construction of tall structures including chimneys and water towers
  • Trestle, wharf, and highway viaduct construction
  • Various temporary building structures
Technical Specifications

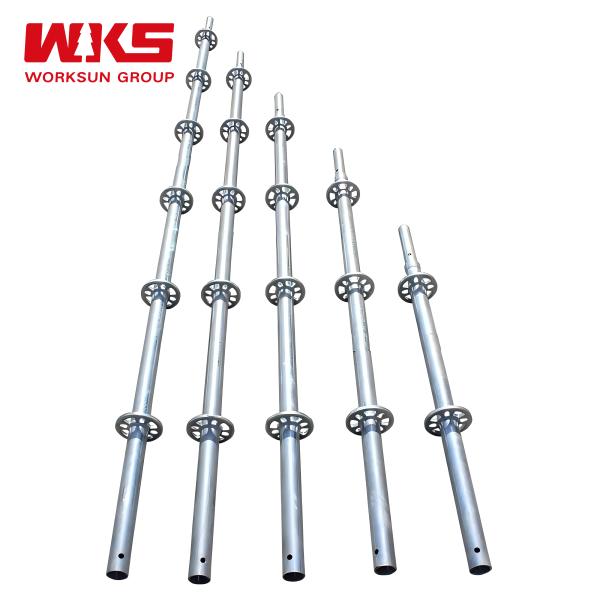

Vertical Standards
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q345/Q355B
Diameter: 60mm & 48mm
Pipe Wall Thickness: 3.0mm/3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 1.8KG-18.75KG according to different sizes
Length: 200mm-3000mm various sizes available
Main stressed part of ring-lock scaffold with inner fittings for height adjustment
Adjustable Base Jack
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q235/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 4mm/4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.7KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Arranged at the bottom of ring-lock scaffolding system
U Head Jack
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q235/Q235B/Q345
Pipe Type: Hollow or Solid
Screw Rod Diameter: 30mm-48mm or customized
Pipe Wall Thickness: 3.5mm-4.75mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 2.91KG-8KG according to different sizes
Adjustable Length: 100mm To 1000mm as required
Used to support keel and adjust scaffold height
Truss (Bridge) Ledger
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.25mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 9.35KG-19KG according to different sizes
Length: 1.52m-3.05m or customized
Enhances scaffolding stability
Lattice Beam (Girder)
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q235/Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.0mm-4.0mm
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Weight: 25KG-150KG according to different sizes
Length: 2070mm-6140mm or customized
Enhances scaffolding stability
Side Bracket
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q355
Diameter: 48.3mm
Pipe Wall Thickness: 3.2mm/3.25mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Length: 360mm-1090mm or customized
Used when main frame cannot reach required positions
Steel Plank
Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion ResistantMaterials: Q235
Diameter: 48.3mm
Thickness: 1.2mm-2.0mm or customized
Surface Treatment: Powder Coated/Hot Dip Galvanizing
Size: Various standard and custom sizes available
Facilitates safe worker movement during construction

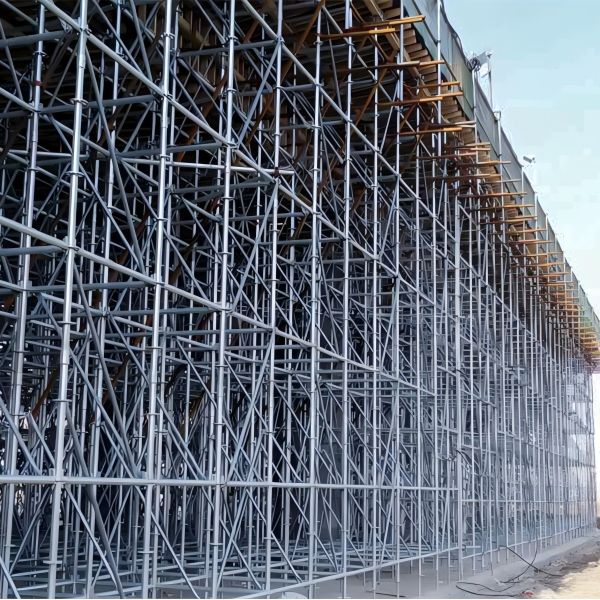

Application Scope
Widely used in bridge engineering including general elevated bridges, tunnel engineering, factory buildings, elevated water towers, power plants, refineries, and special factory building support design. Also suitable for pedestrian overpasses, span sheds, storage shelves, chimneys, water towers, indoor and outdoor decoration, large-scale concert stages, background frames, stands, viewing platforms, styling frames, staircase systems, stage construction, sports competition stands, and various other projects.

Wedge Connection Ring Lock Scaffold High Strength Modular Steel Scaffolding Corrosion Resistant

Competitive Advantages
  • Experienced engineering team with average 10+ years working experience
  • Over 20 years of production experience ensuring stable product quality
  • Strategic factory location in industrial cluster area providing significant cost advantages
  • Full cycle project services ensuring smooth Ring-Lock Scaffold application
Professional Services
  • Professional engineering team provides detailed product application solutions
  • Expert consultation for optimized engineering application plans
  • Dedicated service teams for each project ensuring perfect product-demand matching
  • Efficient construction support through timely product delivery
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for exporting formwork and scaffolding products. Our group company operates two major production bases with over 20 years of specialized production experience.
What services do you provide?
We provide professional implementation solutions, high-quality products, and efficient technical support services in the field of templates and scaffolding.
Do you provide samples?
Yes, we can provide samples. Customers are responsible for shipping costs.
How to get a quotation?
Provide specific requirements list, or inform us of your intended product use - we will develop a customized plan based on your needs.
Quotation and delivery timeline?
Specific quotations typically completed within 2 days. Delivery time after contract signing usually 10-30 days depending on project complexity.
Payment terms?
T/T 30% deposit before manufacture, 70% balance against B/L Copy, or L/C.
