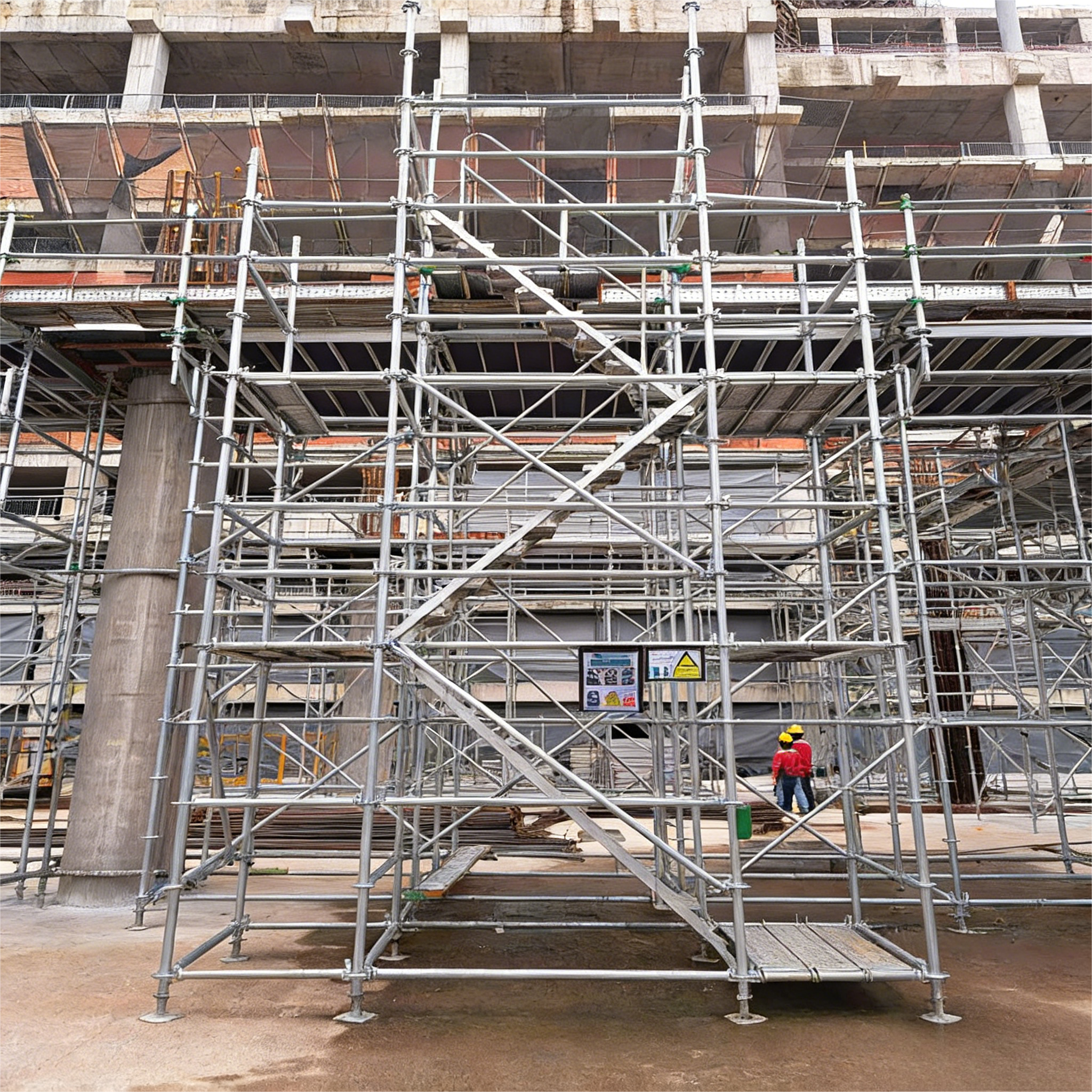

Heavy Load Capacity Ring Lock Scaffold with Hot-Dip Galvanized Finish and 8-Way Rosette Joint
Heavy Load Capacity Ring Lock Scaffold with Hot-Dip Galvanized Finish and 8-Way Rosette Joint
Specifications
Material :
Q235
Certification :
ROHS
Surface Treatment :
Powder Coated/Hot Dip Galvanizing
Color :
Silver
Price :
US $10.00 - 11.40/ Piece
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Design Style :
Morden
Corrosionresistance :
Galvanized coating
Delivery Time :
10-30 workday
Length :
200mm/250mm/300mm/350mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm
Supply Ability :
1000 piece in 10 days
Weight :
1.8KG-18.75KG according to different sizes
Payment Terms :
T/T
Diameter :
60mm&48mm
Place of Origin :
Hebei,China
Product name :
Ring Lock Scaffold
Brand Name :
WKS
Pipe Wall Thickness :
3.0mm/3.2mm/3.25mm or customized
MOQ :
200/Piece
Scaffolding Part Type :
Cuplock Scaffolding Accessories
Description
Durable Ring Lock Scaffolding System for Heavy Load Projects
Product Overview

The Ring Lock Scaffolding System is a robust modular access platform engineered for demanding construction and industrial applications. Utilizing a unique 8-hole rosette joint design, this system allows multi-directional connections at 45-degree intervals, providing exceptional adaptability for complex building geometries. Fabricated from high-grade Q355B steel and finished with a hot-dip galvanized coating, it offers superior corrosion resistance and structural integrity under heavy loads. With a safe working load capacity of up to 150 kN per vertical standard and full compliance with EN 12810/12811 standards, this system is trusted by contractors worldwide for bridge falsework, high-rise formwork support, and large-scale industrial maintenance.

Key Features
  • High-Strength Steel Construction - Q355B material with 3.2mm wall thickness ensures maximum durability
  • 8-Way Rosette Joint - Allows connections at 45° increments, enabling curved facades and irregular structural layouts
  • Heavy Load Capacity - Supports up to 150 kN per leg at standard spacing, ideal for high-volume concrete pours
  • Hot-Dip Galvanized Finish - Provides 20+ years of corrosion protection, reducing maintenance costs
  • Tool-Free Wedge Lock - Self-retaining wedges eliminate loose parts, speeding up assembly by up to 50%
  • Comprehensive Safety - Meets EN standards, ensuring reliable performance on international job sites
Customization Options

We offer full customization to fit your project requirements:

  • Standard heights from 0.5m to 3.0m, with custom lengths available
  • Ledgers in various widths (0.6m to 2.4m) for different bay sizes
  • Accessories including base jacks, U-head jacks, toe boards, guardrails, and stair towers
  • Choice of galvanized or painted finish
Technical Specifications
Parameter Detail
Material Q355B High-Strength Steel
Pipe Diameter 48.3mm OD × 3.2mm wall
Rosette Plate 8 holes, 10mm thick, spaced at 0.5m
Wedge Type Drop-forged, self-locking
Max Leg Load 150 kN (at 1.2m × 1.2m)
Surface Coating Hot-dip galvanized (≥65μm)
Load Capacity Guide
Spacing (m×m) Max Safe Working Load (kN)
1.2 × 1.2 120 - 150
1.5 × 1.5 80 - 100
1.8 × 1.8 50 - 70
Typical Applications
  • Formwork support for slabs, beams, and columns
  • Access scaffolding for complex building facades
  • Bridge construction and heavy civil engineering
  • Industrial plant maintenance and repair work
  • Temporary shoring and event staging structures
Lead Time & Minimum Order
  • Standard items: 15-20 days
  • Custom projects: 20-35 days
  • Competitive factory-direct pricing with volume discounts
