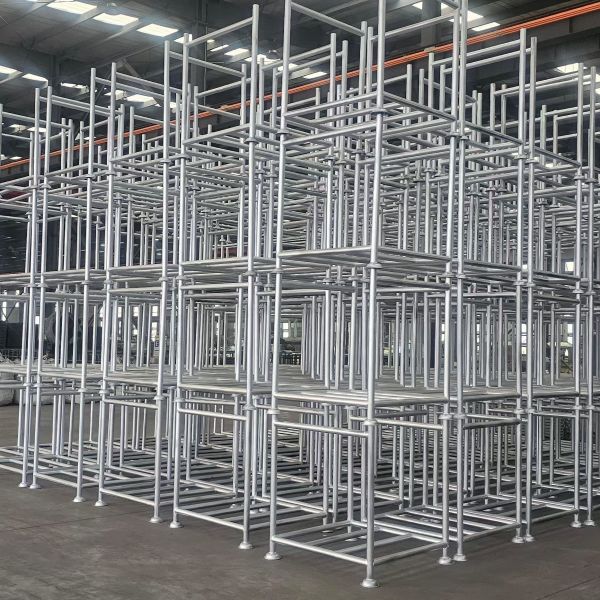

Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard
Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard
Specifications
Brand Name :
WKS
Certification :
ROHS
Place of Origin :
Hebei,China
MOQ :
200/Piece
Price :
US $8.90 - 12.00/ Piece
Payment Terms :
T/T
Supply Ability :
1000 piece in 10 days
Delivery Time :
10-30 workday
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Product name :
Cuplock System Scaffolding
diameter :
48mm
thickness :
3.0/3.25mm
Quality guarantee :
2 year
technology :
CO2 arc welded
peculiarity :
Easy Assembling
colour :
Customized Colour
Surface treatment :
Painted/Galvanized
Customize or not :
Available in custom or standard sizes
dimension :
1200,1800,2400mm or as your request
Description
Cuplock Scaffolding 2.5m Standard for Event Stage and Temporary Grandstand
Product Overview

Cuplock Scaffolding is a versatile modular system featuring a unique cup-and-blade locking mechanism, designed for high-load applications in commercial construction, bridge falsework, and industrial maintenance. It provides exceptional stability and rapid assembly for complex scaffolding structures.

Features & Functions
  • Rapid Cup-Lock Mechanism: Horizontal ledgers are secured by rotating the top cup to lock four connections simultaneously, enabling tool-free assembly 40% faster than traditional scaffolding systems.
  • High Structural Integrity: The 500mm uniform node spacing creates a rigid grid structure capable of supporting concentrated loads up to 4.5 kN/m², ideal for concrete formwork and heavy equipment.
  • Multi-Directional Flexibility: Components connect at 90-degree intervals, allowing versatile configurations for straight walls, circular structures, and complex access towers without special adapters.
  • All-Weather Durability: Hot-dip galvanized finish provides superior corrosion resistance for long-term outdoor use in harsh environments, with minimal maintenance requirements.
Key Specifications
  • Material: Q235B/Q345B Structural Steel
  • Standard Tube: Ø48.3mm x 2.75mm/3.0mm
  • Node Spacing: 500mm standard, 750mm available
  • Max Working Height: 60m+ with proper bracing
  • Load Capacity: 4.0-4.5 kN/m² (Heavy Duty)
  • Surface Treatment: Hot-Dip Galvanized 85μm
Competitive Advantages
  • Optimal Labor Efficiency: One worker can assemble multiple connections simultaneously, reducing crew size requirements by 30% compared to frame scaffolding systems.
  • Enhanced Safety Performance: The positive mechanical lock eliminates accidental disassembly, while the rigid structure meets EN12811 safety standards for high-level work.
  • Long-Term Economic Value: 500+ reuse cycles with proper maintenance provide the lowest cost-per-use ratio in the heavy-duty scaffolding category, with full component recyclability.
Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard
Product Parameters - Standards (Uprights)
Item No. Length Weight Picture
BSCS 300 3m/9'10" 17.5kg/38.25 Ibs Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard
BSCS 250 2.5 m/8'2" 14.57 kg/32.12 Ibs
BSCS 200 2m/6'2" 11.82 kg/26.07 Ibs
BSCS 150 1.5 m/4'11" 9.05 kg/19.95 Ibs
BSCS 100 1 m/3'3" 6.3 kg/13.91 Ibs
BSCS O50 0.5m/1'8" 3.5 kg /7.77 Ibs
Product Parameters - Ledgers (Horizontal Braces)
Item No. Length Weight Picture
BSCL 250 2.5 m/8'2" 9.35 kg/20.61 Ib Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard
BSCL 180 1.8 m/6' 6.85 kg / 15.1 Ibs
BSCL 150 1.5 m/4'11" 5.75 kg/9.46 Ibs
BSCL 120 1.2m/4 4.29 kg/13.91 Ibs
BSCL 090 0.9m/3' 3.55 kg /7.83 Ibs
BSCL 060 0.6m/2' 2.47 kg / 5.45 Ibs
Our Services
  • Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
  • Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
  • Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.
Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for operating export business of formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

How can I get a quotation?
For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop an application plan based on your engineering drawings.

How long does it usually take to complete the plan and quotation?
Generally 5-8 days to complete specific plans and detailed quotations.

Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?
Usually 30-60 days depending on project complexity. More accurate delivery times are provided during planning.

Is the plastic template prone to deformation?
In long-term high temperature environments, slight deformation may occur. We recommend aluminum alloy formwork or steel frame wood formwork for high temperature areas.

What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?
Payments ≤1,000USD: 100% in advance. Payments ≥10,000USD: 30% T/T in advance, balance before shipment. L/C also accepted.
