High Load Cuplock Scaffolding for Construction and Heavy Support Work
High Load Cuplock Scaffolding for Construction and Heavy Support Work
Specifications
diameter :
48mm
Certification :
ROHS
Quality guarantee :
2 year
colour :
Customized Colour
Price :
US $8.90 - 12.00/ Piece
Packaging Details :
Bundled / Tied in bundles/Optimization of container loading
Surface treatment :
Painted/Galvanized
Payment Terms :
T/T
technology :
CO2 arc welded
Delivery Time :
10-30 workday
thickness :
3.0/3.25mm
Place of Origin :
Hebei,China
peculiarity :
Easy Assembling
Supply Ability :
1000 piece in 10 days
Product name :
Cuplock Scaffolding System
Brand Name :
WKS
Customize or not :
Available in custom or standard sizes
dimension :
1200,1800,2400mm or as your request
MOQ :
200/Piece
Description
High Load Cuplock Scaffolding for Construction and Heavy Support Work
Product Overview

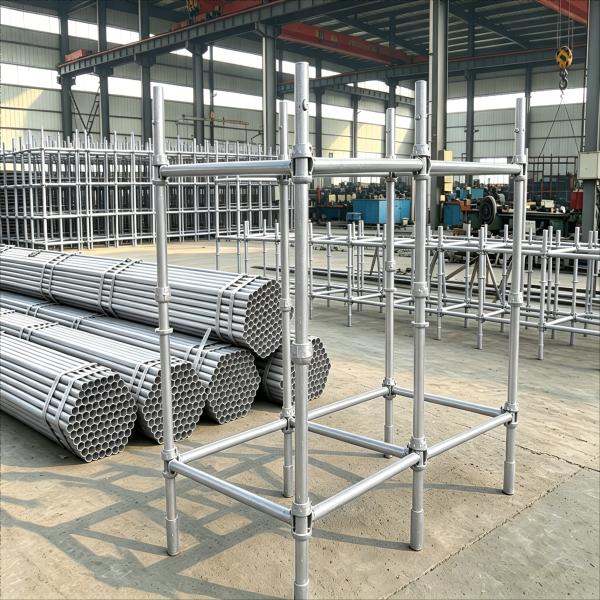

The Cuplock Scaffolding System is a modular steel scaffold featuring a cup-and-blade connection system - simply hammer down the upper cup to lock ledgers in seconds. Manufactured from Q355B steel with hot-dip galvanized finish (≥55μm), it offers up to 120 kN load capacity per standard and complies with EN 12810 standards.

Compared to frame or tube-clamp systems, Cuplock provides faster erection, higher strength, and 20+ years corrosion resistance - making it ideal for general construction and formwork falsework applications.

Key Advantages
  • Fast Connection - Secure joints in under 5 seconds with a hammer
  • 120 kN Load Capacity - Handles heavy concrete formwork and bridge construction
  • Hot-Dip Galvanized - No rust, no painting required, 20+ year service life
  • 90° Fixed Angles - Perfect for rectangular building perimeters
  • EN 12810 Certified - Accepted on international construction projects
Primary Applications
  • Building facade access
  • Slab & beam formwork falsework
  • Bridge pier support
  • Industrial maintenance access
Technical Specifications
Parameter Value
Material Q355B Steel
Pipe Size 48.3mm × 3.2mm
Cup Spacing 1.0m
Finish Hot-dip galvanized (≥55μm)
Max Leg Load Up to 120 kN
Standards EN 12810, EN 12811
System Components

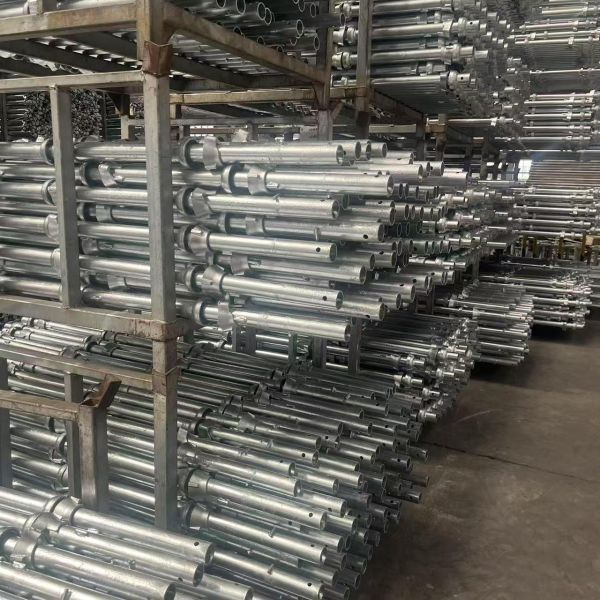

  • Vertical standards (1.0-3.0m)
  • Horizontal ledgers (0.6-2.4m)
  • Diagonal braces / Base jacks / Top jacks
Load Capacity (SWL per standard)
Spacing Height ≤5m
1.2×1.2m 120 kN
1.5×1.5m 80 kN
1.8×1.8m 50 kN
Cuplock vs. Ring Lock Comparison
Aspect Cuplock Ring Lock
Connection Cup + blade Rosette + wedge
Angle 90° only 45° increments
Max Load 120 kN 150 kN
Cost Moderate Higher
