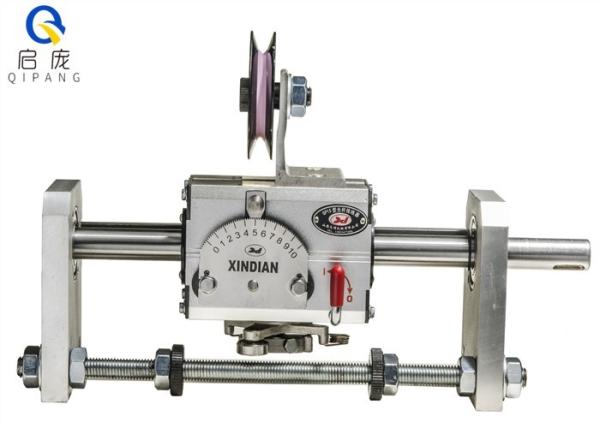

GP3-15 durable jitney rolling ring traverse units with roller guides wholesaler

The principle of operation of the rolling ring traverse units is based on the transformation of the rotational movement of the drive shaft into a linear movement of the folding carriage on a smooth shaft in two directions using the interaction of friction forces between the drive shaft and the collars of the ball bearing mechanism for switching the stroke of the folding carriage.
By changing the angle of the on-clone of ball-clip holders, the speed of movement of the folding carriage on the smooth shaft is regulated.

Type C series: one rolling ring traverse units with accessories ,such as shaft ,guide wheel,bearing block,steady bar ,etc

Principle

The principle of operation of the rolling ring traverse units is based on the transformation of the rotational movement of the drive shaft into a linear movement of the rolling ring traverse units on a smooth shaft in two directions using the interaction of friction forces between the drive shaft and the collars of the ball bearing mechanism for switching the stroke of the rolling ring traverse units.

The main advantages of the rolling ring traverse units principle

1. Highest possible efficiency due to the fact that the gear and the payload are completely supported by roller bearings

2. Automatic traversing movement

3. Variable traversing speeds ranging from 0 m/s to a maximum of 4.2 m/s; can also be separately set for the two directions with constant rotation of the shaft

4. Variable traversing width and traversing position

5. High dynamics at the points of reversal

6. Can be released from the shaft

7. Low operating costs

8. Low maintenance requirements

Business Scope:

Our company mainly products roller guides ,rolling ring traverse units,wire take up machine, wire coil winding machine ,automatic coiling and packaging machine, microcomputer automatic rolled plate machine ,wire straightener , wire straightening and cutting machine, etc. (Some as follow picture show)
