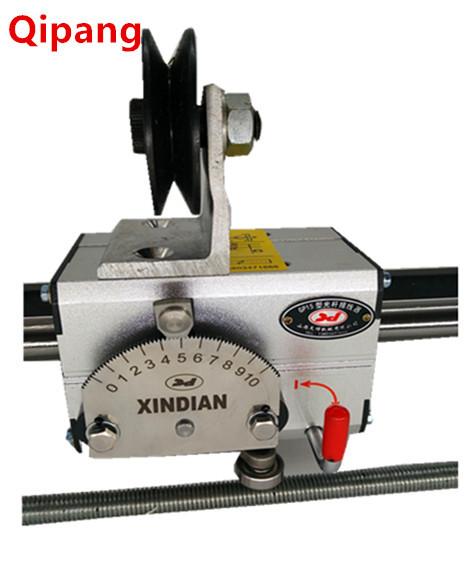

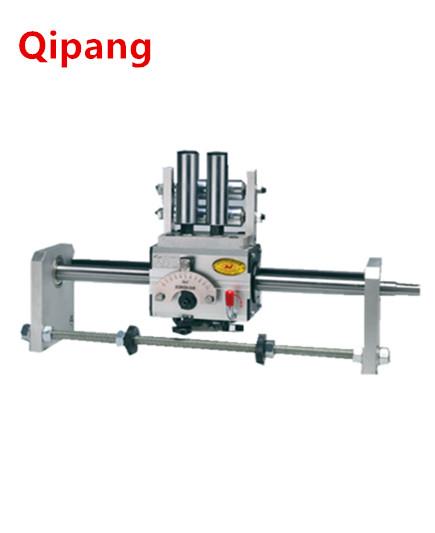

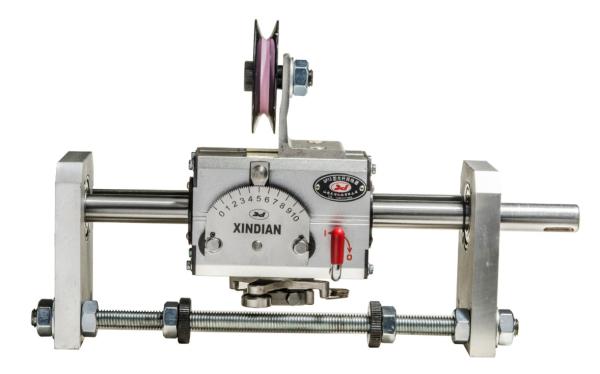

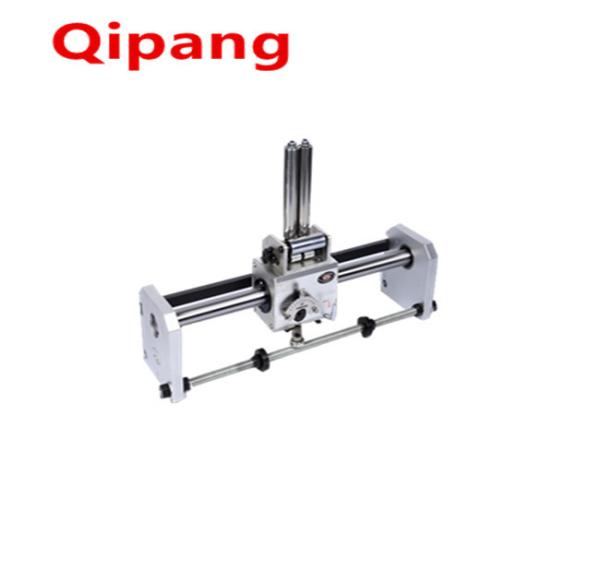

1. Stepless adjustment

the take-up reel transfers a certain speed to the polished shaft.Without changing the rotating speed of the shaft , only by moving the indicator on the scale dial, adjusting the traverse driver's speed of reciprocating motion on the shaft, rang from 0 to the Max. pitch.

2. Instantaneous reversal

with no need to change the shaft speed of rotation, when the reversal trigger roller contacts the end stop, the moval dirction of the traverse driver will be pivoted to its mirror direction with revesal time of not more than 1 second.

3. High traverse speed

THE traverse drive speed of liner motion on the shaft can be up to Max 0.4m/sec. and the applicable speed is usually 0.3m/sec. so it can meet the requirement fo some situations for high traverse speed and frequent reversal.

4. Release assembly

The traverse drive features the release system. it allows the rolling rings to disengage from the shaft wihtout the shutdown and can be manually moved at any position on the shaft, it can be traverse from the end part.

A and B type Installation instruction

C type Installation instruction

---

Types	d1	d2	L1	L2	L3	L4	L5	L6	H1	H2	Md	Keyway(width*depth)
GP3-15	φ15	φ15	430	13	72		47		68	15	M8	5*2.5
GP3-20	φ20	φ14	450	14	102	40	41	25	90	15	2-M8	5*2.5
GP3-22	φ22	φ14	450	14	102	40	41	25	90	15	2-M8	5*2.5
GP3-30	φ30	φ18	500	18	136	78	47	25	105	50	2-M10	6*3
GP3-40	φ40	φ30	880	25	172	112	75	50	140	25	2-M14	8*4
GP3-50	φ50	φ35	880	30	304	264	60	50	168			10*5
GP3-60	φ60	φ45	1130	30	304	264	60	50	170			10*5

Polished shaft rolling ring traverse drives Application Guide

Arranged wire diagram

When using the traverse drive, we have to use a motor to drive it. and make the take-up coil and polished shaft running at the same pace.

Match the proper chiain wheel or belt wheel according to the doameter of wire and cable.

The suitable ratio of number of rotation of polished shaft to number of rotation of take-up axix is from 1:1 to 1:5
