Specifications
Brand Name :
qipang
Model Number :
GP3-15 Type A / B/ C
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 PC per day
Delivery Time :
1-3 working day
Packaging Details :
Carton, wooden box
Brand :
Qipang
Model :
GP3-15
Type :
A / B/ C
Weight :
1.2-6 kg
Material :
Aluminum Alloy
Application :
winding wire
Linear Pitch :
1~10 mm
Axial Thrust :
10 kg
Surface hardness :
HRC°50-60
Voltage :
220V
Description

Shanghai Qipang Precision Rolling Ring Drive GP3-15 Type A / B/ C

Our Company

Shanghai Qi Pang Industrial Co., LTD, is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.

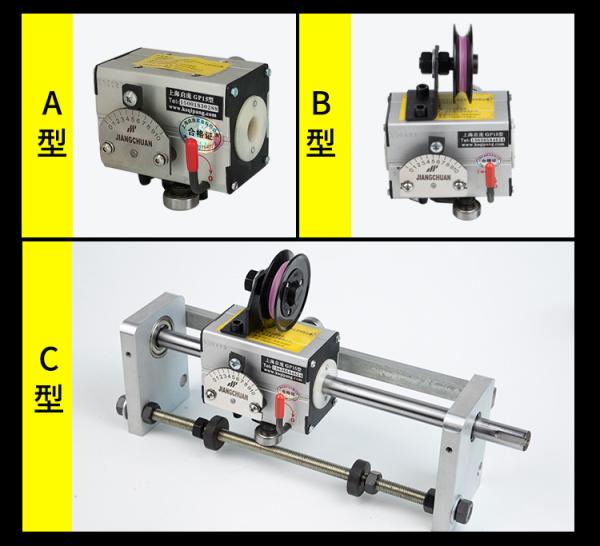

Type A / B/ C

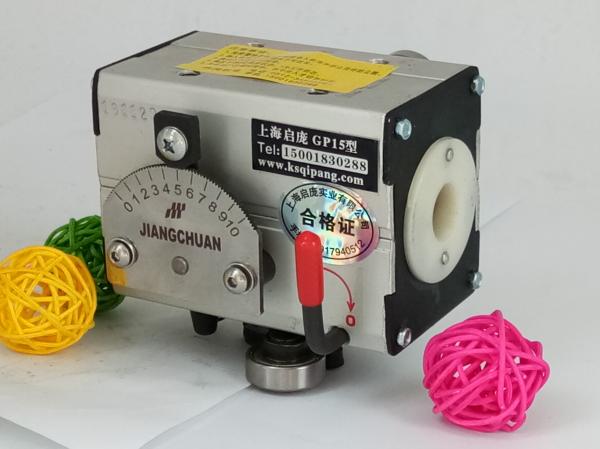

Rolling ring drives Type A Series :just have one Rolling Ring linear drive , which are divided into eight types according to the diameter of the shafts. Our product are widely used in wire,steel wire,electrical wire, cable, textile industry etc.

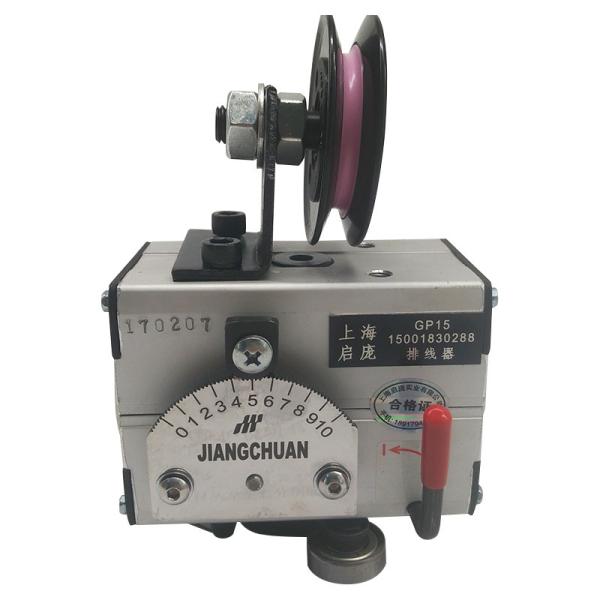

Rolling ring drives Type B Series:He can be placed above guide or guide frame, more convenient to use, can be used for different sizes and materials of the line .

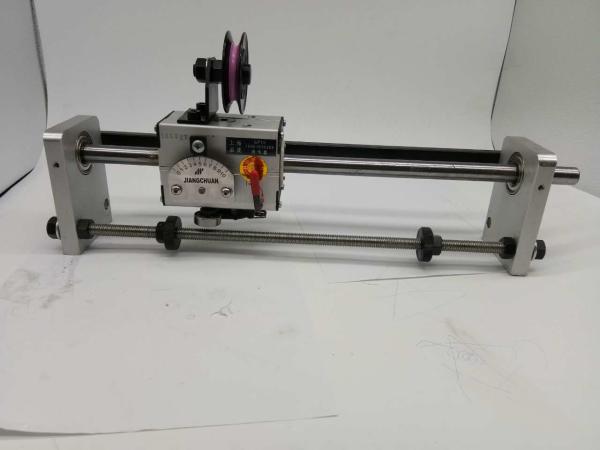

Rolling ring drives Type C Series:He is a combination, is a set of equipment, without your own installation, you can use to buy, easy and simple

Model No: Linear Pitch (mm/r) Axial Thrust (kg) Weight (kg)
GP3-15 1~11 11(110N) 1.2
GP3-20 1~16 16(160N) 2.5
GP3-22 1~16 16(160N) 2.5
GP3-25 1~25 26(260N) 3
GP3-30 1~25 26(260N) 3
GP3-40 1~32 42(420N) 10
GP3-50 2~40 70(700N) 20
GP3-60 2~48 100(1000N) 40

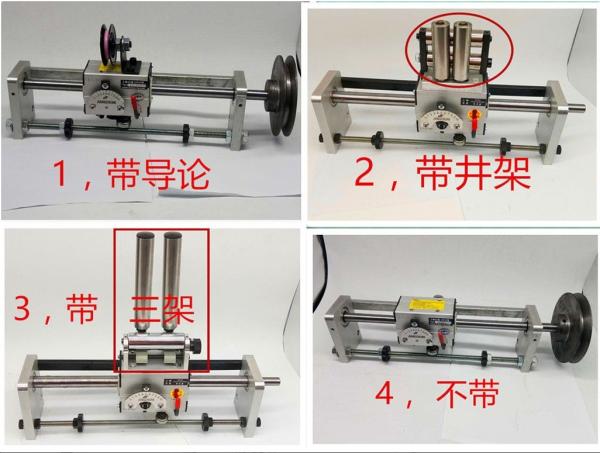

Product display​
Industrial Rolling Ring Drive Ring Traverse Drive Linear Motion Driven

Industrial Rolling Ring Drive Ring Traverse Drive Linear Motion DrivenIndustrial Rolling Ring Drive Ring Traverse Drive Linear Motion Driven

For advantages

Stepless Adjustment The take up reel transfers a certan speed to the polishes shaft Without changing the rotating speed of the shaft though move the indicator on the scale dial , adjust the travers drive's speed of reciprocating motion on the shaft , range from 0 to the maximum pitch setting .

Instantaneous Reversal With no need to change the shaft speed of rotation , when the reversal trigger roller contacts the end stop , the travel direction of the travers drive will be pivoted to its mirror diresction with reversal time of not more than i second .

Hight Traverse Speed The traverse drive speed of linear motion on the shaft can be up to 0.4m/sec. max., and the applicable speed is Usually 0.3m/sec. So it can meet the requirement of some situations for high traverse speed and very frequent reversal.

Release Assembly The traverse drive features the release system. It allows the rolling rings to disengage from the shaft
without the shutdown and so can be manually moved at any position on the shaft. It can traverse from the end part.
Installation instruction
It is important to prepare the polished shaft, the guide bar, the end stop lead screw, the endstops, etc. acc
ording to the installation dimensions of relative types and the technical requirementsof equipment, as the figure shows.

Polished Shaft Surface hardness: HRC50- -60; Tolerance on diameter: h6; True runningtolerance: <0. 1mm/m; Length: not larger than 20- 30 times of the diameter of the shaft; Leadingend chamfer: 2x 30°.
Ratio of take-up reel and the shaft in general, the shaft speed should be smaller than thetake- -up reel speed so that the shaft and traverse drive lives could be increased. It isrecommended that the rotation ratio of the shaft over the take-up reel be 1:1-1:5, with lower ratiofor thicker wires and higher ratio for thinner wires, and the scale indication not being less than 1.
Direction of Shaft Rotation the rotation direction of the shaft transmitted by the take- -up reelmay be either positive or negative, however, there is difference regarding the installation positionsof the reversal arm, or otherwise the direction could not be switched. When facing the scale dial,downward rotation is defined as positive. The reversal may be realized only when the trigger rolleris installed backward. The shaft rotation is presetted and installed as in positive direction at thefactory.
