Qipang Rolling Ring Drive manufacturers GP40/GP3-40 type A made in China traverse unit
For advantages
Stepless Adjustment The take up reel transfers a certan speed to the polishes shaft Without changing the rotating speed of the shaft though move the indicator on the scale dial , adjust the travers drive's speed of reciprocating motion on the shaft , range from 0 to the maximum pitch setting .
Instantaneous Reversal With no need to change the shaft speed of rotation , when the reversal trigger roller contacts the end stop , the travel direction of the travers drive will be pivoted to its mirror diresction with reversal time of not more than i second .
Hight Traverse Speed The traverse drive speed of linear motion on the shaft can be up to 0.4m/sec. max., and the applicable speed is Usually 0.3m/sec. So it can meet the requirement of some situations for high traverse speed and very frequent reversal.
Model type | Linear Pitch mm/r | Thrust N | Weight Kg |
GP3-15 | 11 | 110 | 0.9 |
GP3-20 | 16 | 160 | 1.6 |
GP3-22 | 16 | 160 | 2 |
GP3-25 | 25 | 260 | 3 |
GP3-30 | 25 | 260 | 2.7 |
GP3-40 | 32 | 420 | 11.2 |
GP3-50 | 40 | 700 | 33 |
GP3-60 | 48 | 1000 | 42 |
Model type | Linear Pitch mm/r | Trust N | Weight Kg |
GP4-15 | 11 | 220 | 1.5 |
GP4-20 | 16 | 320 | 3 |
GP4-30 | 25 | 520 | 3.7 |
GP4-40 | 32 | 840 | 13 |
GP4-50 | 40 | 1400 | 38 |
GP4-60 | 48 | 2000 | 45 |
Model | GP15 | GP20 | GP30 | GP40 | GP50 | GP60 |
A*B*C ( mm ) | 92*52*66 | 111*68*85 | 135*85*105 | 160*101*129 | 184*119*149 | 220*132*160 |
D | 215 | 215 | 240 | 360 | 360 | |
E | 30-60 | 30-60 | 32-77 | 37-77 | 37-77 | |
F | 25 | 25 | 32 | 38 | 38 | |
G | 14 | 14 | 14 | 17 | 25 | 25 |
H | 38 | 40 | 42 | 50 | 60 | 60 |
I | 16 | 18 | 20 | 22 | 28 | 28 |
J | 24 | 35 | 55 | 60 | 70 | 70 |
K | 48 | 60 | 70 | 85 | 96 | 101 |
M | 50 | 50 | 65 | 65 | 65 | |
S | 40 | 70 | 70 | 76 | 100 | 100 |
N | 32 | 40 | 60 | 70 | 80 | 80 |
4-M | 4-M6 | 4-M6 | 4-M6 | 4-M12 | 4-M12 | 4-M12 |
Thrust N | 100 | 135 | 265 | 420 | 700 | 1000 |
Weight KG | 1.2 | 2.5 | 8.5 | 11.2 | 33 | 42 |
Moving intercept | 0.1-11 | 0.1-16 | 0.1-25 | 0.5-32 | 1-40 | 1.5-48 |

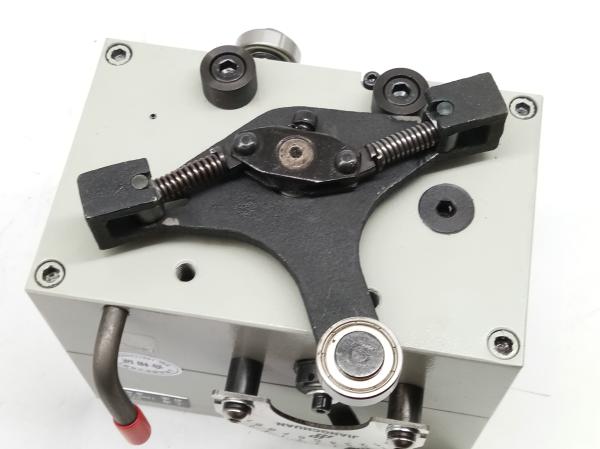

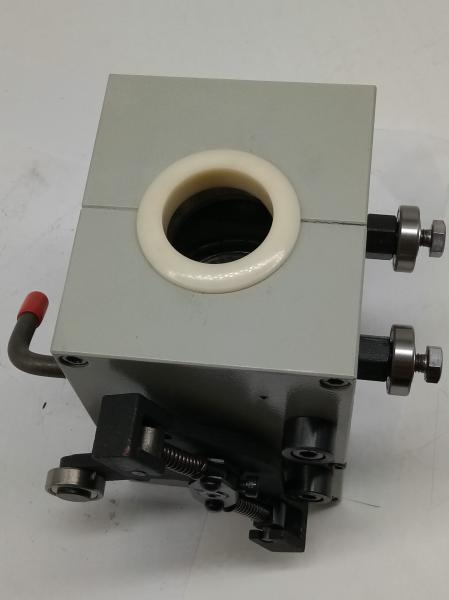

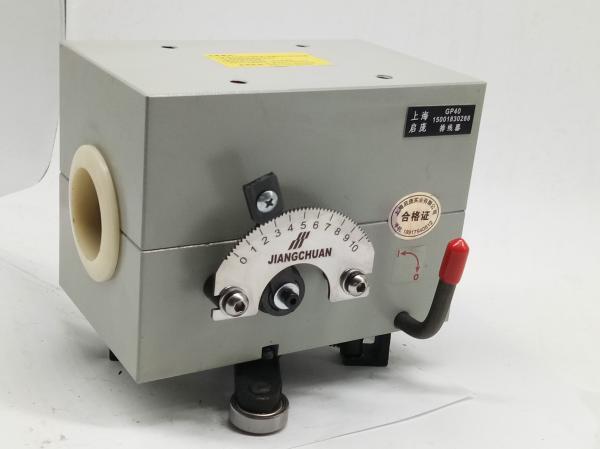

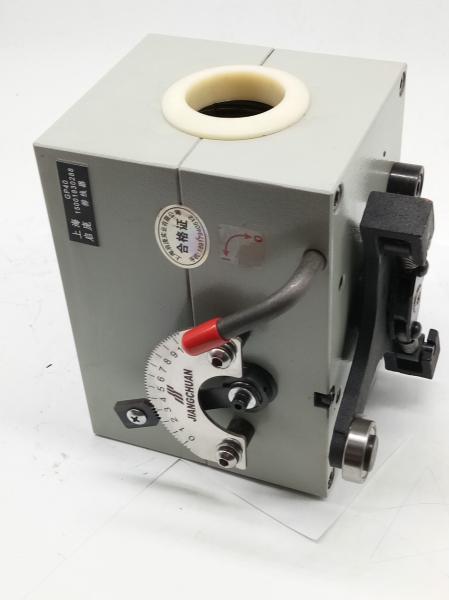

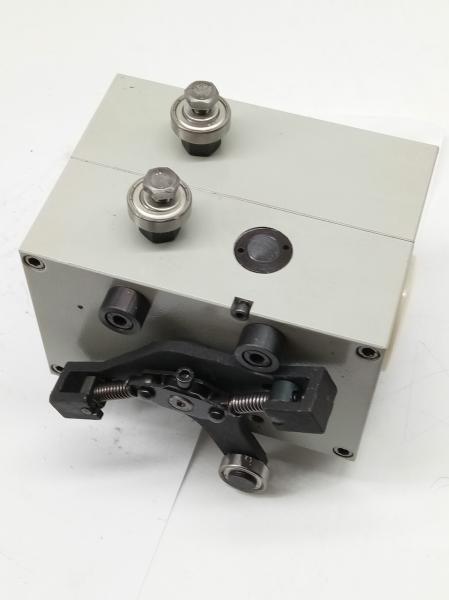

Product display
Installation and Debugging
Release Lever There are two positions, i.e. the working position “1” and the releasing position “0”. When the lever sits at the working position, the bearings above it are at the lifting position and apply pressure to the Smooth Shaft and so make the Traverse Drive generate the thrust force. When the lever sits at the Releasing position, the bearings above it are at the falling position and by pushing with hands you can make the Traverse Drive slide freely on the Smooth Shaft. Before install the Smooth Shaft, pull the Release Lever and check if the bearings can be moved up and down.
Mounting the Smooth Shaft By putting the Release Lever at the released position “0” and adjusting the sheathes at the both sides of the Traverse Drive you can install the Shaft into the Traverse Drive, and then pull the Release Lever to the Working position”1”.
Rotation Speed of Shaft The take-up bobbin speed shall be higher than the shaft speed of the traverse drive. The speed ratio available ranges from 5:1 to 1:1. If the wire size is small the ratio will be large and if the wire size is large the ratio will be small.
Pitch Adjustment The scale values 1-10 on the dial are the adjustment range of pitches, and not the numeric value of pitch. The pitch is matched to the thickness of the wire/cable. When the Indicator is at the left of the Scale Dial, the Traverse Drive dwells on the shaft without any movement. In addition, the adjustment should not be made to the maximum pitch position. When adjustment is made the Indicator shall be disengaged completely from the Serrated Scale Dial.
Mounting the Wire Guide Pulley/Roller When mounting the wire part special care should be taken not to turn the screw too deeply into the box, in order to avoid influence the normal working conditions of the internal mechanism.
Traverse Travel Adjust the positions of two reversal end stops on the lead screw to make the travel match the position and length of the take-up bobbin.
Main technical parameters of standard Rolling Ring Drives
