Specifications
Brand Name :
qipang
Model Number :
RG3-30-2MCRFX
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 PC per day
Delivery Time :
1-3 working day
Packaging Details :
Carton, wooden box
Name :
Rollring Traverse Unit
Model :
RG3-30-2MCRFX
Brand :
Uhing
Weight :
6.5 kg
Suit :
Aluminum welding wire and so on
Application :
winding wire
Axial Thrust :
260 N
Linear Pitch :
30 mm
Color :
Silver grey
Support :
Support custom-made
Description

Qipang Rolling ring drive traves unite RG3-30-2MCRFX with roller Hight Quality

The principle of operation of the folding devices is based on the transformation of the rotational movement of the drive shaft into a linear movement of the folding carriage on a smooth shaft in two directions using the interaction of friction forces between the drive shaft and the collars of the ball bearing mechanism for switching the stroke of the folding carriage.

By changing the angle of the on-clone of ball-clip holders, the speed of movement of the folding carriage on the smooth shaft is regulated.

The principle of operation of the folding devices is based on the transformation of the rotational movement of the drive shaft into a linear movement of the folding carriage on a smooth shaft in two directions using the interaction of friction forces between the drive shaft and the collars of the ball bearing mechanism for switching the stroke of the folding carriage.

By changing the angle of the on-clone of ball-clip holders, the speed of movement of the folding carriage on the smooth shaft is regulated.

Stepless Adjustment The take up reel transfers a certan speed to the polishes shaft Without changing the rotating speed of the shaft though move the indicator on the scale dial , adjust the travers drive's speed of reciprocating motion on the shaft , range from 0 to the maximum pitch setting .

Instantaneous Reversal With no need to change the shaft speed of rotation , when the reversal trigger roller contacts the end stop , the travel direction of the travers drive will be pivoted to its mirror diresction with reversal time of not more than i second .

Hight Traverse Speed The traverse drive speed of linear motion on the shaft can be up to 0.4m/sec. max., and the applicable speed is Usually 0.3m/sec. So it can meet the requirement of some situations for high traverse speed and very frequent reversal.

Release Assembly The traverse drive features the release system. It allows the rolling rings to disengage from the shaft
without the shutdown and so can be manually moved at any position on the shaft. It can traverse from the end part.

Model type Linear Pitch mm/r Thrust N Weight Kg
GP3-15 11 110 0.9
GP3-20 16 160 1.6
GP3-22 16 160 2
GP3-25 25 260 3
GP3-30 25 260 2.7
GP3-40 32 420 11.2
GP3-50 40 700 33
GP3-60 48 1000 42

Model type Linear Pitch mm/r Trust N Weight Kg
GP4-15 11 220 1.5
GP4-20 16 320 3
GP4-30 25 520 3.7
GP4-40 32 840 13
GP4-50 40 1400 38
GP4-60 48 2000 45

Polished Shaft Uhing Ring Traverse Drive Silver Grey 30 Mm Linear Pitch

Model GP15 GP20 GP30 GP40 GP50 GP60
A*B*C ( mm ) 92*52*66 111*68*85 135*85*105 160*101*129 184*119*149 220*132*160
D 215 215 240 360 360
E 30-60 30-60 32-77 37-77 37-77
F 25 25 32 38 38
G 14 14 14 17 25 25
H 38 40 42 50 60 60
I 16 18 20 22 28 28
J 24 35 55 60 70 70
K 48 60 70 85 96 101
M 50 50 65 65 65
S 40 70 70 76 100 100
N 32 40 60 70 80 80
4-M 4-M6 4-M6 4-M6 4-M12 4-M12 4-M12
Thrust N 100 135 265 420 700 1000
Weight KG 1.2 2.5 8.5 11.2 33 42
Moving intercept 0.1-11 0.1-16 0.1-25 0.5-32 1-40 1.5-48

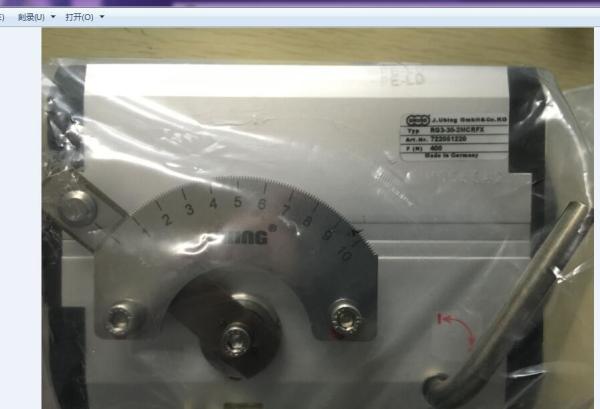

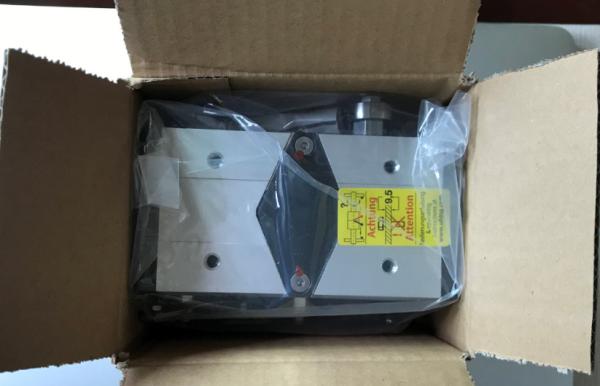

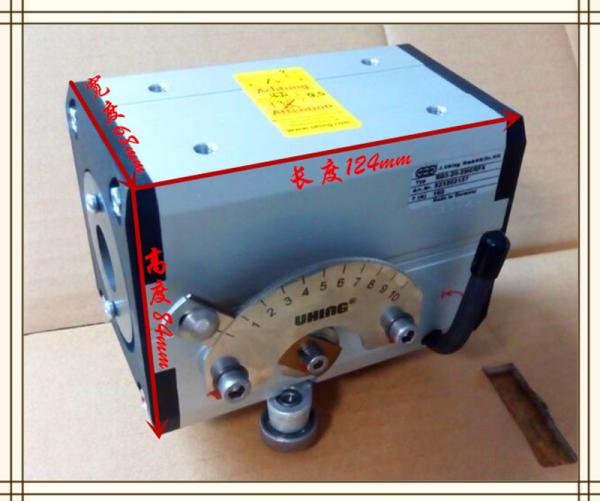

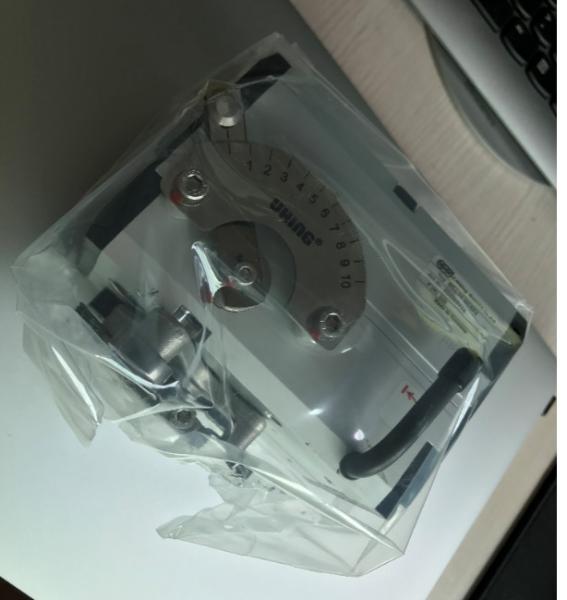

Product display​

Polished Shaft Uhing Ring Traverse Drive Silver Grey 30 Mm Linear PitchPolished Shaft Uhing Ring Traverse Drive Silver Grey 30 Mm Linear PitchPolished Shaft Uhing Ring Traverse Drive Silver Grey 30 Mm Linear Pitch

Installation instruction
It is important to prepare the polished shaft, the guide bar, the end stop lead screw, the endstops, etc. according to the installation dimensions of relative types and the technical requirementsof equipment, as the figure shows.

Polished Shaft Surface hardness: HRC50- -60; Tolerance on diameter: h6; True runningtolerance: <0. 1mm/m; Length: not larger than 20- 30 times of the diameter of the shaft; Leadingend chamfer: 2x 30°.
Ratio of take-up reel and the shaft in general, the shaft speed should be smaller than thetake- -up reel speed so that the shaft and traverse drive lives could be increased. It isrecommended that the rotation ratio of the shaft over the take-up reel be 1:1-1:5, with lower ratiofor thicker wires and higher ratio for thinner wires, and the scale indication not being less than 1.
Direction of Shaft Rotation the rotation direction of the shaft transmitted by the take- -up reelmay be either positive or negative, however, there is difference regarding the installation positionsof the reversal arm, or otherwise the direction could not be switched. When facing the scale dial,downward rotation is defined as positive. The reversal may be realized only when the trigger rolleris installed backward. The shaft rotation is presetted and installed as in positive direction at thefactory.
