Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Specifications
Brand Name :
qipang
Model Number :
GP20C
Certification :
CE
Place of Origin :
CHINA
MOQ :
5UNITS
Price :
USD145
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/Mweek
Delivery Time :
5-8working days
Packaging Details :
wooden
Type :
C type
Usage :
cable and wire winding
Material :
aluminium and iron
Weight :
8kg
Name :
rolling ring drives
Warranty :
1 years
Function :
coiling
Description
Shanghai Qipang Polished Shaft Rolling Ring Drive manufacturers GP20C
Four advasntages:

1. Stepless adjustment

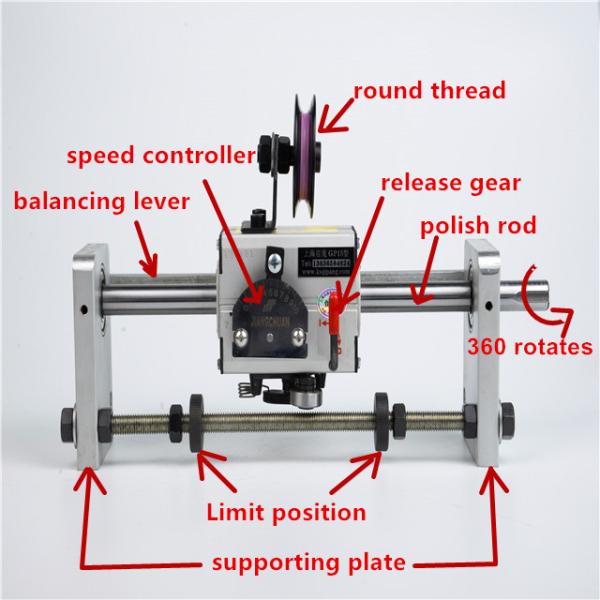

the take-up reel transfers a certain speed to the polished shaft.Without changing the rotating speed of the shaft , only by moving the indicator on the scale dial, adjusting the traverse driver's speed of reciprocating motion on the shaft, rang from 0 to the Max. pitch.

2. Instantaneous reversal
with no need to change the shaft speed of rotation, when the reversal trigger roller contacts the end stop, the moval dirction of the traverse driver will be pivoted to its mirror direction with revesal time of not more than 1 second.

3. High traverse speed
THE traverse drive speed of liner motion on the shaft can be up to Max 0.4m/sec. and the applicable speed is usually 0.3m/sec. so it can meet the requirement fo some situations for high traverse speed and frequent reversal.

4. Release assembly
The traverse drive features the release system. it allows the rolling rings to disengage from the shaft wihtout the shutdown and can be manually moved at any position on the shaft, it can be traverse from the end part.

Types d1 d2 L1 L2 L3 L4 L5 L6 H1 H2 Md Keyway(width*depth)
GP3-15 φ15 φ15 430 13 72 47 68 15 M8 5*2.5
GP3-20 φ20 φ14 450 14 102 40 41 25 90 15 2-M8 5*2.5
GP3-22 φ22 φ14 450 14 102 40 41 25 90 15 2-M8 5*2.5
GP3-30 φ30 φ18 500 18 136 78 47 25 105 50 2-M10 6*3
GP3-40 φ40 φ30 880 25 172 112 75 50 140 25 2-M14 8*4
GP3-50 φ50 φ35 880 30 304 264 60 50 168 10*5
GP3-60 φ60 φ45 1130 30 304 264 60 50 170 10*5

Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years WarrantyPolished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
Polished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years WarrantyPolished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years WarrantyPolished Shaft Rolling Ring Drive For Cable And Wire Winding 1 Years Warranty
