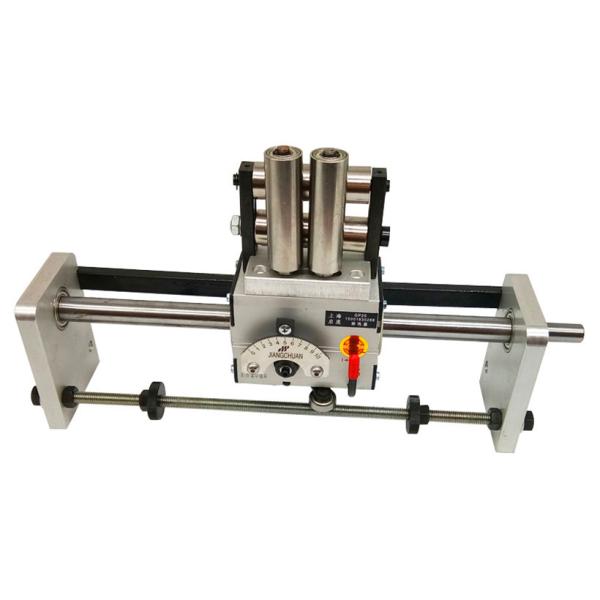

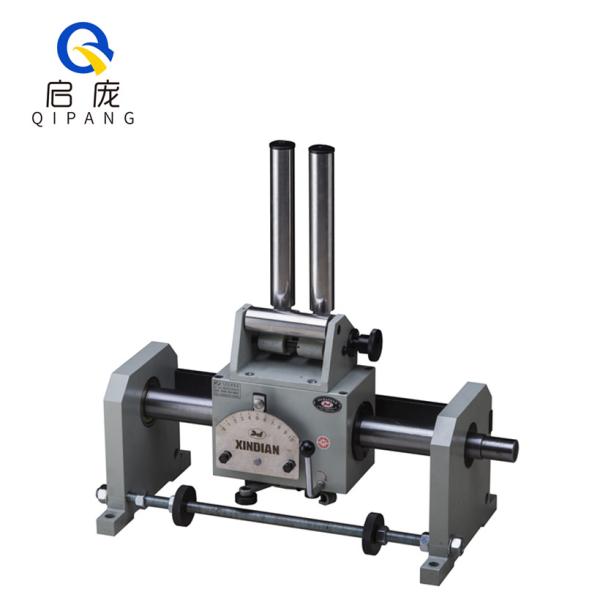

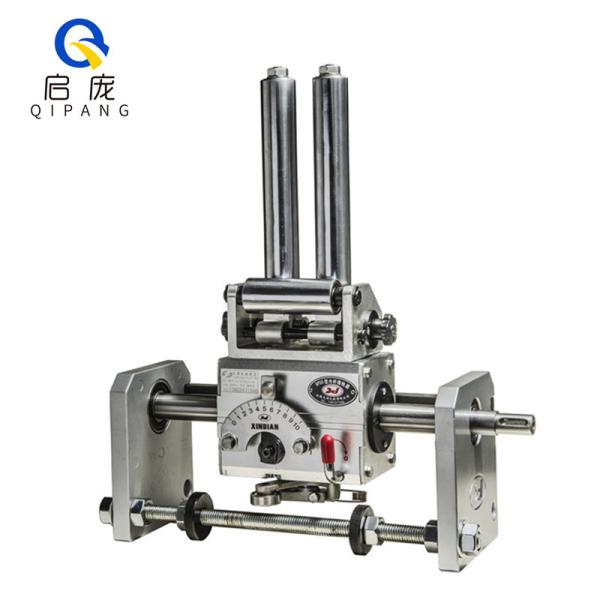

Name: Shaft 40MM C Type Rolling Ring Drive For Wire Winding
Brand: QIPANG
Price: 1 USD

MachineU > China Products > Electrical Equipment & Supplies > Wires, Cables & Cable Assemblies > Cable Manufacturing Equipment

Shaft 40MM C Type Rolling Ring Drive For Wire Winding

Specifications

Brand Name :

QIPANG

Model Number :

GP3-40

Certification :

Place of Origin :

Shanxi, China

MOQ :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

3000 units per month

Delivery Time :

10 working days

Packaging Details :

Wooden box

Name :

GP3-40 C type Rolling Ring Traverse Drive With Guiding Rollers

Other name :

Rolling Ring Traverse Drive

Keywords :

rolling ring drive

Model :

GP3-40

Type :

C type

Brand :

XINDIAN

Origin :

Shanxi, China

Warranty :

1 year

Weight :

7kg

Description

GP3-40 B Type Ring Bearing Rolling Ring Traverse Drive Wire Guiding Roller For Wire Winding Machine China Factory Direct

Principle

The principle of operation of the rolling ring drive is based on the transformation of the rotational movement of the drive shaft into a linear movement of the rolling ring drive on a smooth shaft in two directions using the interaction of friction forces between the drive shaft and the collars of the ball bearing mechanism for switching the stroke of the rolling ring drive.

1 - folding carriage; 2 - roller bracket; 3 - vertical roller; 4 - horizontal roller; 5 - smooth shaft; 6 - support bracket; 7 - guide rail; 8 - hairpin; 9 - restrictive nut carriage stroke; 10 - bolt for adjusting the distance of m/s rollers; 11 - keyway under the pulley

Parameters of linear traverse units
Model	d1	d2*	L1*	L2	L3	L4	L5	L6	Md
GP3-15	15	15	430	13	72	-	47	-	M8
GP3-20	20	14	450	14	102	40	41	25	2-M8
