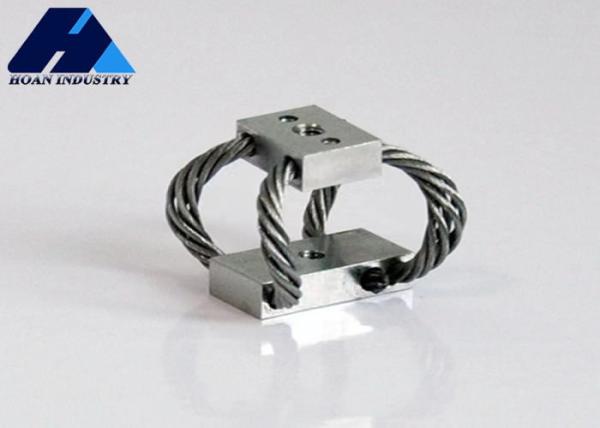

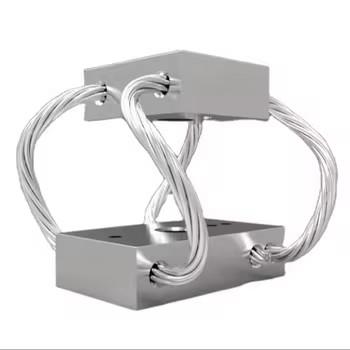

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras
Specifications
Brand Name :
Hoan
Model Number :
GR1-1.8A-A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/P,D/A,T/T,Western Union,MoneyGram
Durability :
High
After Warranty Service :
Online support
Marketing Type :
Hot Product 2024
Type :
Vibration Isolator
Application :
Camera Stabilization
Warranty :
1 Year
Model :
GR1-1.8A-A
Mounting Type :
Screw-in
Port :
Xi'an or Specified
Compatibility :
Universal
Showroom Location :
None
Installation :
Easy
Core Components :
steel wire rope
Description

GR1 Series

Space-constrained? Harsh environments? GR1 Butterfly-Shaped Vibration Isolator Demonstrates Flexible Adaptability


In application scenarios with compact equipment layouts, limited installation space, or harsh environmental conditions, finding an efficient vibration isolation solution is often challenging. Xi'an Hoan Microwave's GR1 steel wire rope vibration isolator (butterfly-shaped vibration isolator), with its exquisite butterfly-shaped design and excellent environmental adaptability, stands out as an ideal choice that balances space efficiency and performance.


GR1 features a compact structure and low installation height. Its butterfly-wing configuration effectively disperses stress, delivering strong vibration isolation performance even in confined spaces. The main body is made of high-performance stainless steel, inherently boasting properties such as corrosion resistance, tolerance to extreme temperatures (covering a wide range from -40℃ to +150℃), and oil resistance—easily withstanding the tests of harsh environments like humidity, salt spray, and industrial dust.


For instance, GR1 performs excellently in offshore platform equipment, field mobile shelters, and operating equipment in extremely cold or hot regions. Under the dual constraints of space and environment, it can continuously provide stable and reliable vibration isolation protection for equipment.

Dimension Parameter Table

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Model

Height(mm)

±1.5

 Width(mm) Weight(kg) Mounting Options Thru Hole(mm) Thread(mm) C'sink(°)
GR1-3.3A-A 17 19 0.05 A,B,C,D,E,S ∅3.3 M3*0.5 90
GR1-2.4A-A 19 20 0.05
GR1-1.8A-A 23 23 0.05
GR1-1.3A-A 26 26 0.05


Static-Load Curve

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR1-3.3A-A 3.3 6.4 3.9 1.9
2 GR1-2.4A-A 2.4 8.4 2.8 1.2
3 GR1-1.8A-A 1.8 11.9 1.8 0.6
4 GR1-1.3A-A 1.3 15 1.3 0.4

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR1-3.3A-A 1.6 8.6 2.1 0.8
2 GR1-2.4A-A 1.1 10.9 1.5 0.4
3 GR1-1.8A-A 0.8 14.7 0.9 0.3
4 GR1-1.3A-A 0.5 18.3 0.5 0.1

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KN/m)

Ks(Shock)

(KN/m)
1 GR1-3.3A-A 1.1 7.9 0.7 0.7
2 GR1-2.4A-A 0.9 9.9 0.4 0.4
3 GR1-1.8A-A 0.7 13.2 0.3 0.3
4 GR1-1.3A-A 0.5 16.3 0.1 0.1


Mounting Options

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras


FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.


Q: How long is your delivery time?

A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days


Q: What's the weight and measurement for the product?

A: Different size with differenct amount, please contact us for details.


Q: Can the products be manufactuered by customer's requirement?

A: Yes, OEM service available


Q: What do you need to know for fast quotation?

A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device


Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China
