GR2 Series

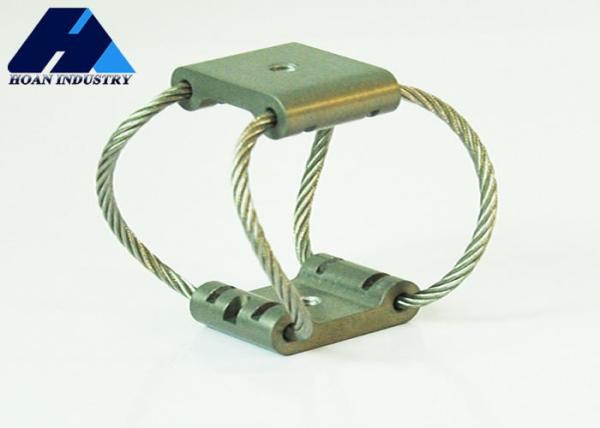

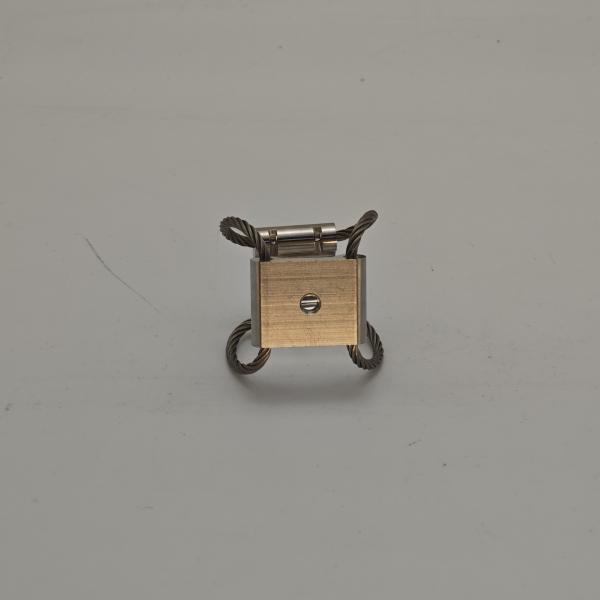

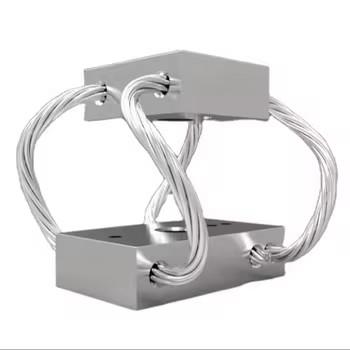

Civilian Responsibility: Decoding the Manufacturing Craftsmanship of Hoan Microwave's GR Series Isolators

The core of manufacturing GR series isolators begins with the ultimate selection of raw materials. Hoan Microwave insists on using high-strength stainless steel wires of specific grades, whose excellent tensile strength, toughness, and corrosion resistance lay the foundation for the product's long service life. The braiding and forming of the wire rope is a key technical step. Through specially designed equipment with precise control, Hoan ensures that the steel wire strands are meticulously wound at preset angles, tensions, and numbers of turns. This process determines the final nonlinear stiffness and damping characteristics of the isolator, directly affecting its vibration isolation performance. The formed components undergo strict heat treatment processes to eliminate internal stress, stabilize the structure, and further enhance the material's mechanical properties and fatigue life.

Hoan Microwave deeply understands that quality control is the lifeline of products. Throughout the entire production process of GR series isolators, strict inspections based on the "Three Same Principles" (same material, same process, same standard) are implemented. From the diameter uniformity and braiding tightness of the wire rope to key parameters of the final product such as static/dynamic stiffness, load-bearing capacity, and fatigue characteristics, all undergo multi-batch and multi-link verification using high-precision testing equipment. This ensures that every delivered "butterfly" meets design specifications and customer requirements. Such meticulous pursuit of manufacturing processes has earned Hoan's GR series isolators wide trust in fields such as nuclear power monitoring, precision manufacturing, and high-end experimental equipment.

Dimension Parameter Table

Static-Load Curve

Product Applications

FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?

A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days

Q: What's the weight and measurement for the product?

A: Different size with differenct amount, please contact us for details.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, OEM service available

Q: What do you need to know for fast quotation?

A:I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.We are located in Xi'an, Shaanxi, China
