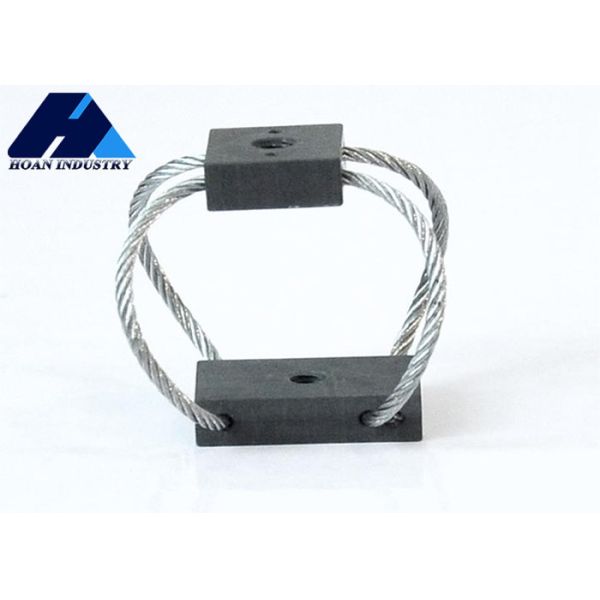

GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
Specifications
Brand Name :
Hoan
Model Number :
GR2-12A-A
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
4
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Design Style :
Industrial
Material :
Rubber
After Warranty Service :
Online support
Machinery Test Report :
Not Available
Port :
Xi'an or Specified
Core Components :
Gear
Waterproof :
No
Showroom Location :
None
Condition :
New
Mounting Type :
Screw-in
Shock Absorption :
Yes
Application :
Helicopter, Drone, UAV Camera, Gimbal
Warranty :
1 year
Marketing Type :
New Product 2024
Package Contents :
1 x Camera Vibration Isolator
Description
GR2-12A-A Camera Vibration Isolator
Precision Protection with Unique Butterfly Design
The GR series wire rope isolators from Xi'an Hoan Microwave Co., Ltd. provide superior vibration and shock control for precision instruments with their innovative butterfly-shaped design and exceptional performance characteristics.
Attribute Value
Design Style Industrial
Material Rubber
Warranty 1 year
Mounting Type Screw-in
Shock Absorption Yes
Applications Helicopter, Drone, UAV Camera, Gimbal
Package Contents 1 x Camera Vibration Isolator
Technical Advantages
  • Elaborately braided spiral stainless steel wire rope structure for superior damping
  • Nonlinear damping system converts mechanical energy into heat energy
  • Excellent broadband vibration isolation capability
  • Superior load-bearing capacity and fatigue resistance
  • Resistant to high/low temperatures, oil, and corrosion
  • Long service life with minimal maintenance requirements
Dimension Parameters
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
Model Height(mm) ±1.5 Width (mm) Weight (kg) Mounting Options Thru Hole (mm) Thread (mm) C'sink (°)
GR2-12A-A 16 20 0.06 A,B,C,D,E,S ∅3.3 M3*0.5 90
Static-Load Performance
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
Model Max Static Load (mm) Max Deflection (mm) Kv(Vibration) (KN/m) Ks(Shock) (KN/m)
GR2-12A-A 12 5.8 11 6.1
Mounting Bar Options
Material: Stainless Steel or Aluminum
Surface Treatment for Aluminum:
  • White Anodizing: Standard surface hardening treatment maintaining aluminum's natural color
  • Hard Anodizing: Enhanced surface hardness with darker finish for demanding applications
Customer Installation Example
GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
