Specifications
Usage :
Absorbing Shock
Delivery Time :
7 working days for stock orders
Mounting Thread Size :
M5
Maintenance :
Low
Warranty :
1 Year
Shock Resistance :
100g/6ms
Feature :
Vibration isolation
Product Load Capacity :
Customizable
Wire Diameter :
0.5mm
Model Number :
JZP-1.0C
Place of Origin :
Shaanxi, China
Brand Name :
Hoan
Certification :
ISO9001:2015
MOQ :
4 Pieces
Payment Terms :
L/C,D/A,D/P,T/T
Vibration Reduction :
High
Description

JZP-1.0C Rubber Shock Absorber for High Vacuum Systems


The JZP-1.0C is a prefabricated rubber shock absorber designed for continuous vibration and noise isolation in industrial, railway and precision-equipment installations. Its 1.0 kg nominal load rating and low-maintenance construction make it a reliable isolator where clean operation and stable damping are both required.


Anti-Cold-Welding for High Vacuum Systems


Inside vacuum chambers, clean metallic surfaces can cold-weld together under load, seizing joints and damaging hardware. The JZP-1.0C is formulated so its contact surfaces resist this adhesive behaviour even under sustained vacuum and compression. Components that rest against the absorber therefore separate cleanly during service instead of galling or sticking.


Anti-Cold-Welding and Non-Sticking in High Vacuum


The compound also delivers non-sticking performance in high vacuum. It resists adhesion driven by surface contact, so the isolator keeps its freedom of movement and does not bond to mating metal faces. Together with a stable resonant frequency of 35±3 Hz and high internal damping, this keeps vibration isolation predictable throughout the life of the chamber.


Technical Parameters (JZP-1.0C)


Model JZP-1.0C
Pz Nominal Load (Kg) 1.0
Deformation Displacement (mm) ≤0.3
Resonant Frequency (Hz) 35±3
Working Temperature (℃) -45 to +65
Shock (Ks) 100g/6ms
Peak Response (G) ≤3.6km/s2
Vibration (Kv) Accord with National Standard GJB150-16
Mounting Thread M5 threaded hole


JZP-C Series Load Reference


Technical Parameter JZP-0.3C JZP-0.5C JZP-0.8C JZP-1.0C JZP-1.2C JZP-1.5C JZP-1.8C JZP-2.0C JZP-2.5C JZP-3.0C
Pz Nominal Load (Kg) 0.3 0.5 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0

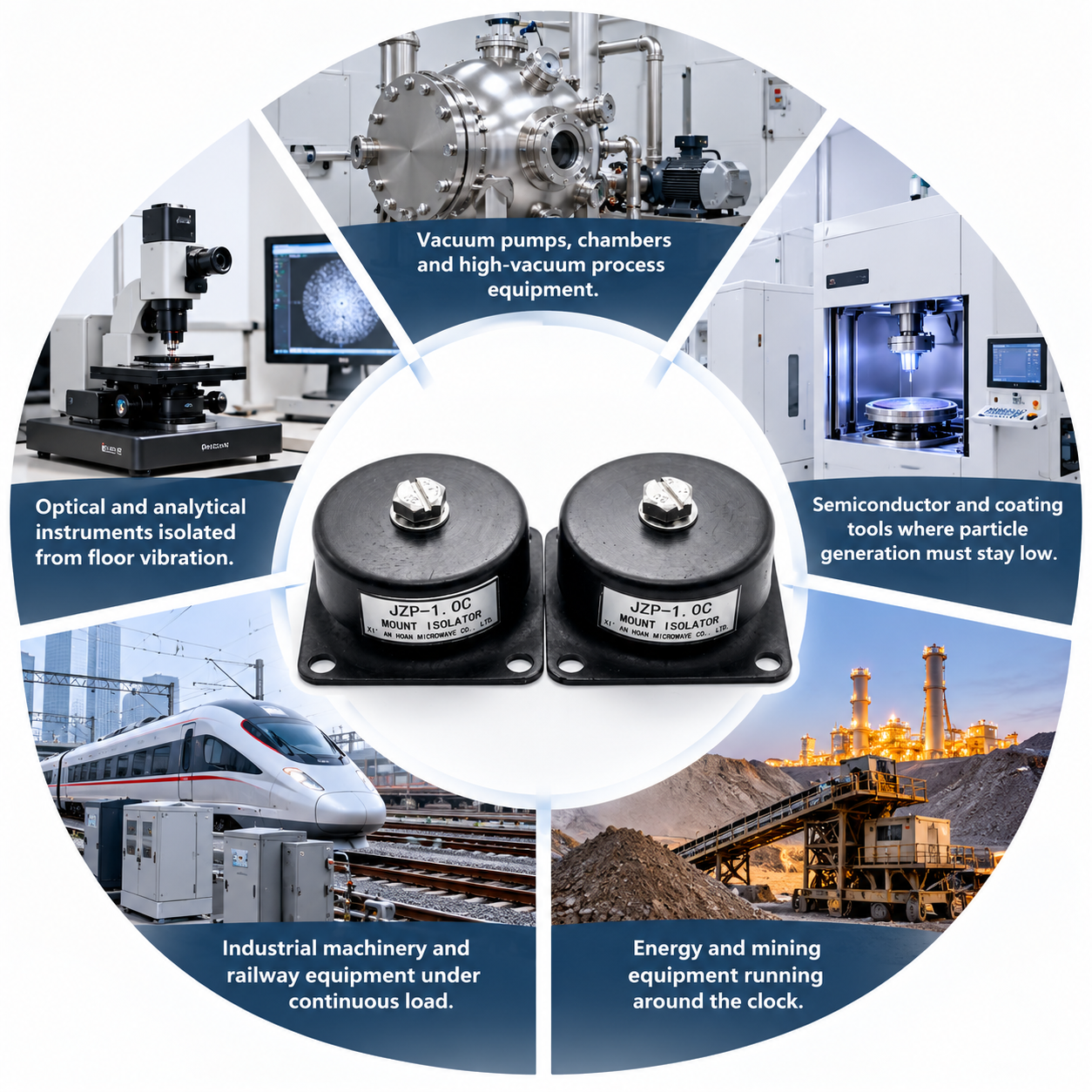

Typical Applications
