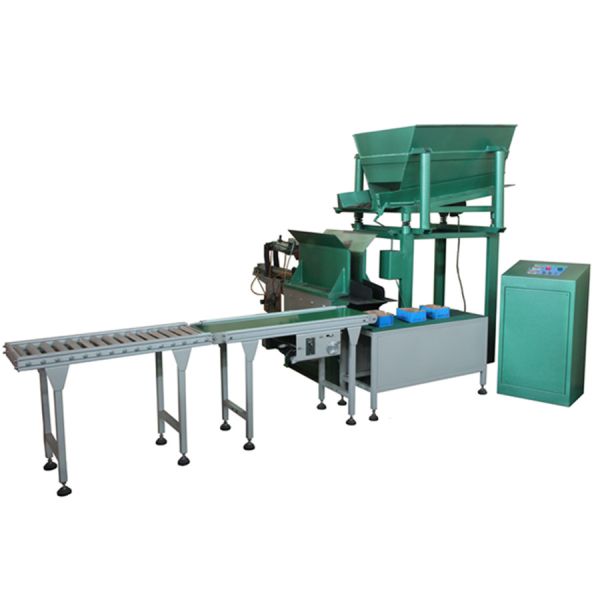

Semi-Automatic Nail Packing Collator with Flexible Manufacturing and 1.5kw Power for Efficient Wire Nail Packing
Semi-Automatic Nail Packing Collator with Flexible Manufacturing and 1.5kw Power for Efficient Wire Nail Packing
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DURA
MOQ :
1
Voltage :
as per user's local power system
Automatic grade :
Semi-Automatic
Driven type :
Electric
Nail length range :
60-120 mm
Capacity :
3-4 boxes/min
Box weight range :
1-6 kg
Air pressure :
4 kg/cm2
Total power :
1.5 kW
Hopper capacity :
300 kg (NP-F1), 500-800 kg (NP-F2)
Press-down stroke :
200 mm
Cylinder diameter :
φ63 mm
Cylinder stroke :
710 mm
Dimensions :
2000 x 600 x 1400 mm
Weight :
1000 kg (NP-F1), 1500 kg (NP-F2)
Packaging material :
Paper
Description
Product Description
WIRE NAIL PACKING COLLATOR
Applications: Wire nail packing collator, a compact packing device which is mainly used to pack the wire nails to boxes or small cartons/cases by way of electromagnetic parallel alignment. It can help to fill the cartons with paralleling nails fitly side by side. In the past, the way of packing was filling cartons/cases with nail dispersedly, by contrast with it; this new-type unit can make the encasement regular.
Semi-Automatic Nail Packing Collator with Flexible Manufacturing and 1.5kw Power for Efficient Wire Nail Packing
Product Paramenters

Features

This collator is an auxiliary packing machine for the packing of the nails. In the past, manual packing & sorting were a normal way adopted by most nail makers, but it has many disadvantages: slower speed, more labor and the workers were often stabbed by the disordered nails. Now the collator provides parallel alignment of wire nails and regular filling, which reduces the laboring intensity and largely increases the productivity. Accordingly, it reduces the volume of package too, so does the cost of package. At present, this machine is deeply popular with the small or medium-sized nail producers.
Model    &   Descriptions
NP-F1
NP-F2
Range of the length of packed nails(mm)
60-120
60-120
Capacity(boxes/min)
3-4
3-4
Scope of the weight of a box(kg)
1-6
1-6
Pressure of the compressed air(kg/cm2)
4
4
Total power(kw)
1.5
1.5
Loading capacity of vibrating hopper(kg)
300
500-800
Adjustable speed conveyor and a digital scale
No
To carry 10 boxes on the conveyor stand
Stroke of press-down cylinder(mm)
200
200
Internal diameter of push-out cylinder(mm)
φ63
φ63
Stroke of the cylinder(mm)
710
710
Overall dimensions(mm)
2000 x 600 x 1400
2000 x 600 x 1400
Total weight(kgs)
1000
1500
