Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DURA
MOQ :
1
Price :
CN¥96,818.40-103,734
Weight :
1500 KG
Function :
FILLING, Labeling, Sealing
Packaging type :
Bags, Film
Packaging material :
Plastic
Automatic grade :
Automatic
Driven type :
Electric
Voltage :
as per user's local power supply system
Dimensions :
2100*900*2350
Filling Material :
Solid
PLC brand :
Delta or as user required
Machine appearance :
Outside Stainless Steel; inside Carbon steel frame
Film materials :
OPP/PE;PET/PE; PA/CPP;OPP/PE;and OPP/CPP
Plastic bag size :
Length 50-200mm, Width 50-140mm
Conveyor adjustability :
Length & height adjustable
Printing capability :
Thermal transfer printing, real time/incremental info-auto-adjusting
Description
Product Description

Product Application

Plastic bag packing for nails, screws, rivets, bolts, nuts and other hardware and spare parts.


Mixed filling & packing of workpiece of different sizes and materials is availble under request.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution

Detailed Images
High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

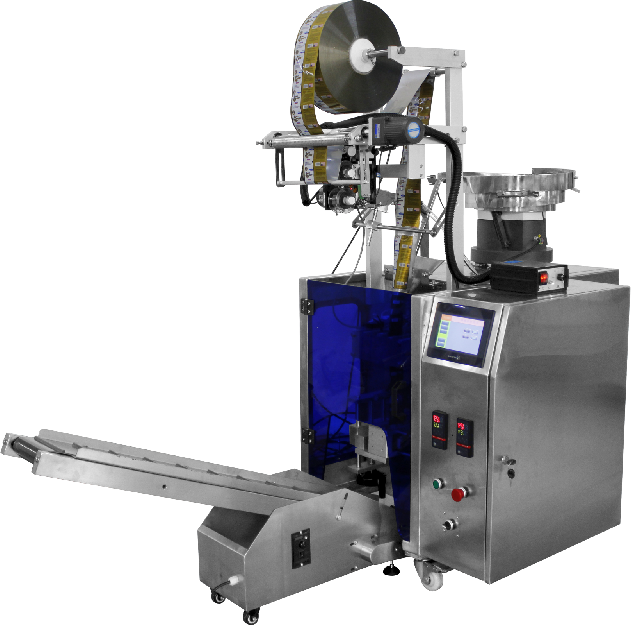

Plastic Bag Packing Main Machine


PLC & touch screen: Delta or as user required.


Appearance of machine: Outside Stainless Steel; inside Carbon steel frame


Film materials: OPP/PE;PET/PE; PA/CPP;OPP/PE;and OPP/CPP etc.
Plastic bag size: Length 50-200mm, Width 50-140mm

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

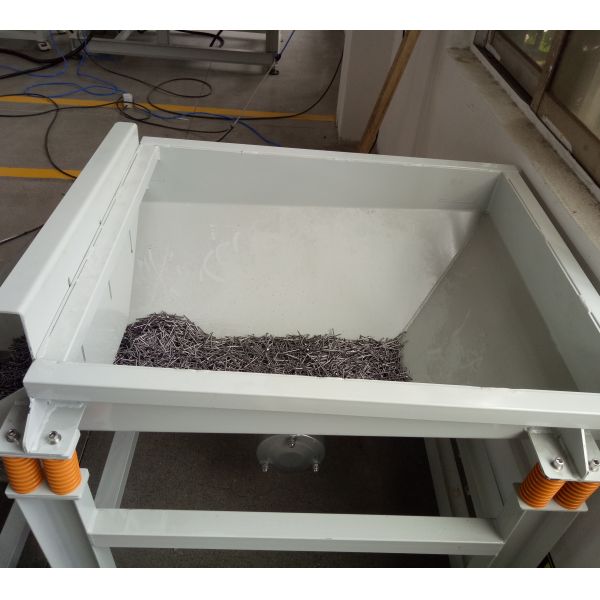

Vibrating Tank

Feature: large loading capacity, convenient for inputing and feeding of single type filling. If fillings are of different types or sizes or materials, then vibrating bowl feeding shall be applied

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

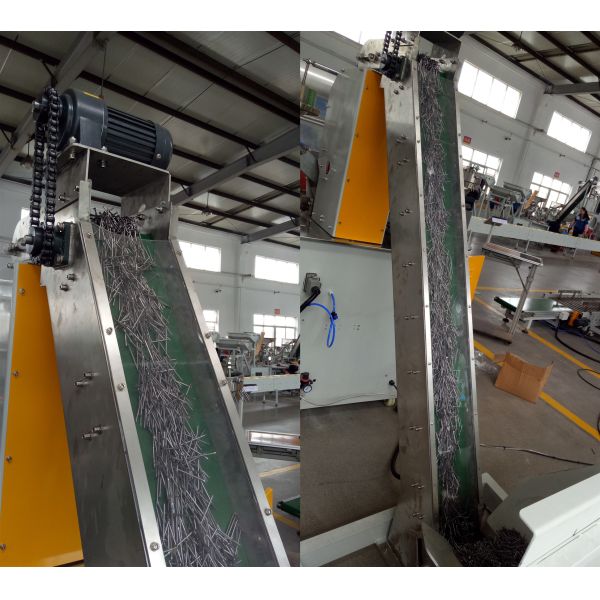

Magnetic Lifting Machine


- for magnetic-lifting the hardware into the main machine

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

Vibrating Hoppers


Function: precise material adding for accurate weighing & packing.

When mixed filling of workpiece of different sizes and materials, vibrating bowls are needed to feeding the fillings separately.

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

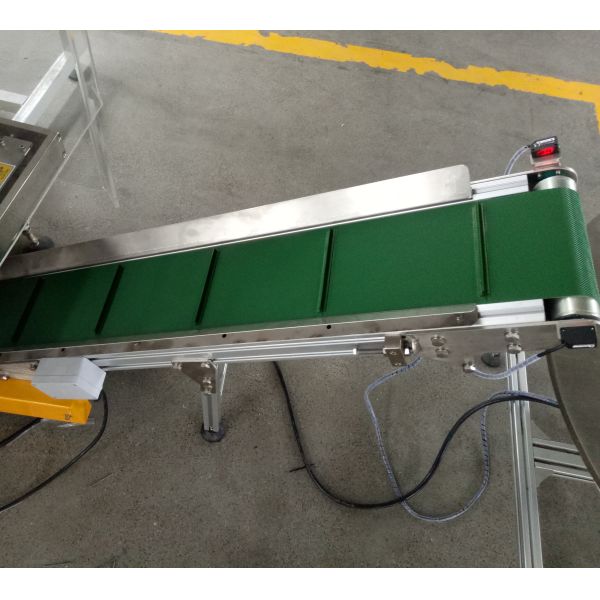

Conveyor

Function: for conveying output bags into carton or working table.


- Length & height adjustable

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

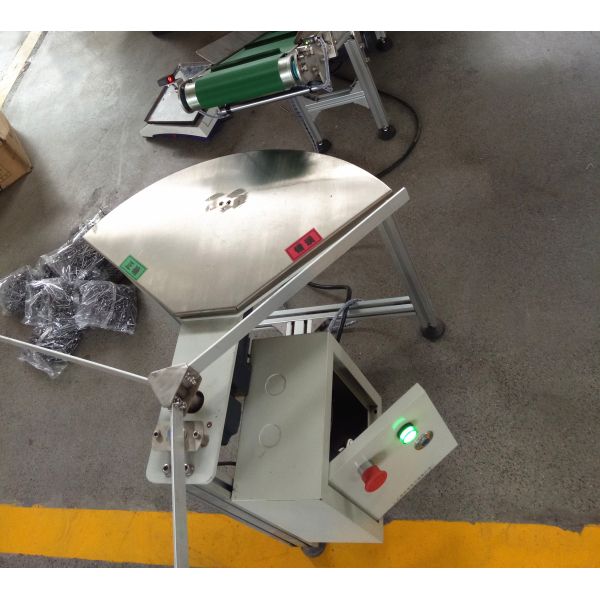

Recheck Scale/Inspection Table


Function: for rechecking the weight of the package and push them to one side for easy selection or further packing. This device is needed when package filling is by weight.

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

Intelligent Code Printer

- thermal transfer printing, real time/incremental info-auto-adjusting(date/number), letter, text, bar code, QR code and picture.

Packing & Delivery
High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts
High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts
High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts
Related Products
Our Service
High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

Pre-Sales Service

* Inquiry and consulting support.

* Customized packing line design supported

* Sample testing support.

* View our Factory.

High-Accuracy Automatic Fastener Packing Machine with PLC Control for Nails Screws Rivets Nuts Bolts

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
