Specifications
Brand Name :
TeXin
Model Number :
TX-C050VGHN
Certification :
SGS,ISO9001,ROHS
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8 days
Packaging Details :
Durable case or box
Brand :
Texin
Power :
50W
Frequency :
400MHz 500MHz 800MHz
Voltage :
24-28V
Gain :
47dbm
Type :
Drone jammer module
Connector :
N type
Size :
225*74*23.5MM
Weight :
833g
Description
Customized Large Size LoRa Digital 50W 74mm Wide Drone Jammer Module
This 50W high-power, customized LoRa digital drone jamming module features a 74mm wide-body design and a rated output power of 50W. It is designed to stably suppress drone remote control, image transmission, and navigation signals, and is suitable for professional scenarios such as security, no-fly zone protection, and vehicle-mounted/fixed anti-drone systems.
Key Features
  • 50W High Power Output: With a high power design of 50W, it offers wider signal coverage and more effective interference distance. With a single click, the drone's remote control, image transmission, and positioning can be cut off, enabling it to be driven away or forced to land.
  • Large Size 74mm Width: The widened structure provides a larger heat dissipation area, supporting long-term continuous operation.
  • LoRa Digital Solution: With LoRa digital technology, more effective interference capable of disrupting FPV DIY and other drone models for short periods.
  • Customized Service: Any requirement can be customized by Texin, which has more than 10 years of experience in the RF field.
Technical Specifications
Item Data Unit
Frequency Customized MHz
Test Voltage 24-28 V
Current 5 A
Output 50 W
Gain 47 dB
Output Stability 1 dB
Connector N/Female
Output Connector VSWR ≤1.30 (No power and VNA test)
Standard Input 0-10DB
Power Supply Wire Red+Black+Enable wire
Enable Control High ON Low Off

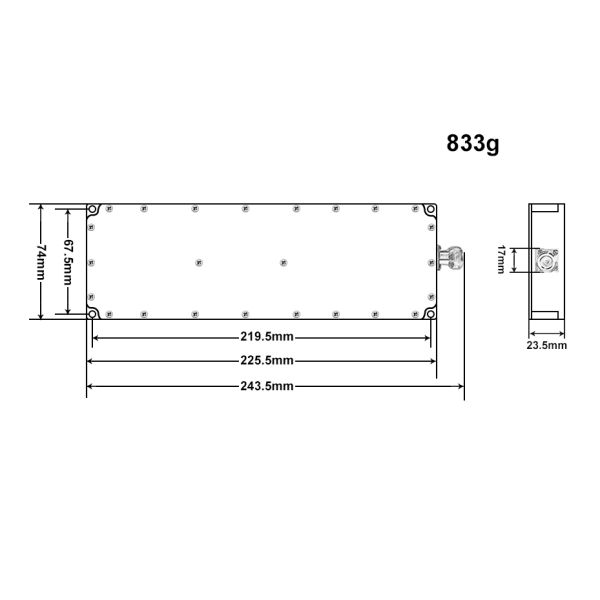

Out Shell Size 225*74*23.5 mm
Mount Hole 225*74 mm
Weight 883 g
Work Temperature -40~+65 ℃
Out Shell Material Aluminum
Vibration Need Car load OK
Applications
  • Security in key areas
  • No-fly zone protection for airports, prisons, and government facilities
  • Vehicle-mounted and fixed anti-drone systems
  • Security integration projects
  • Airspace security for large-scale events, competitions, and factory areas
  • OEMs requiring customized jamming modules
After Service

Purchased Texin products come with a 1-year warranty.

Includes technical specifications and user manual.

We provide technology support after purchasing our products.

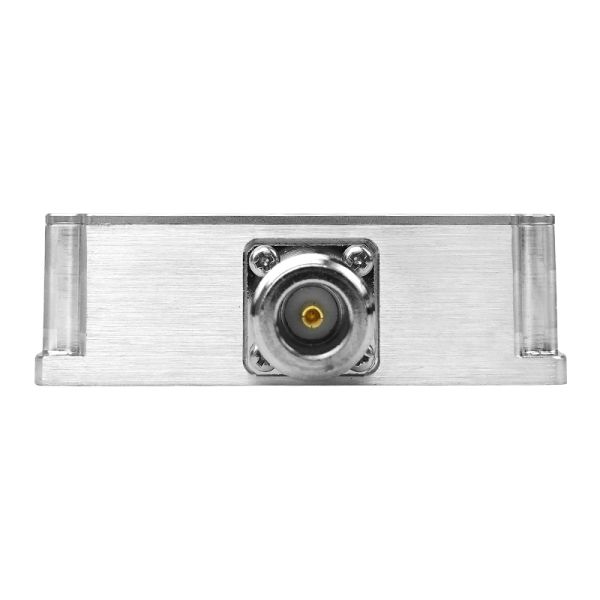

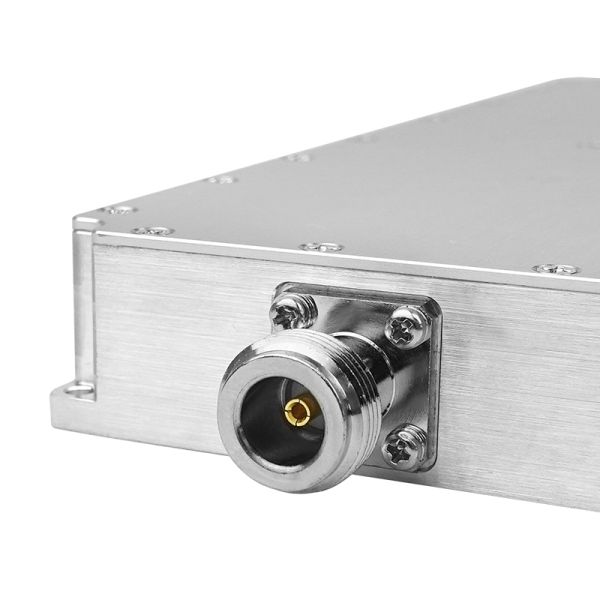

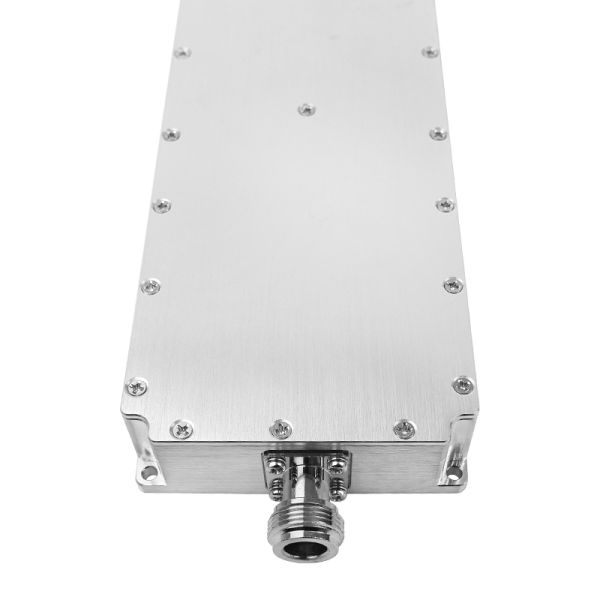

Product Images
Customized large size lora digital 50W 74mm wide drone jammer module Customized large size lora digital 50W 74mm wide drone jammer module Customized large size lora digital 50W 74mm wide drone jammer module Customized large size lora digital 50W 74mm wide drone jammer module
Frequently Asked Questions
How much does this drone signal jammer module cost?
The newest price please contact us, we use tiered pricing; the more you buy, the better the value for money.
What is the minimum purchase quantity?
One order is supported; free samples are not available.
What is the delivery time?
Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
