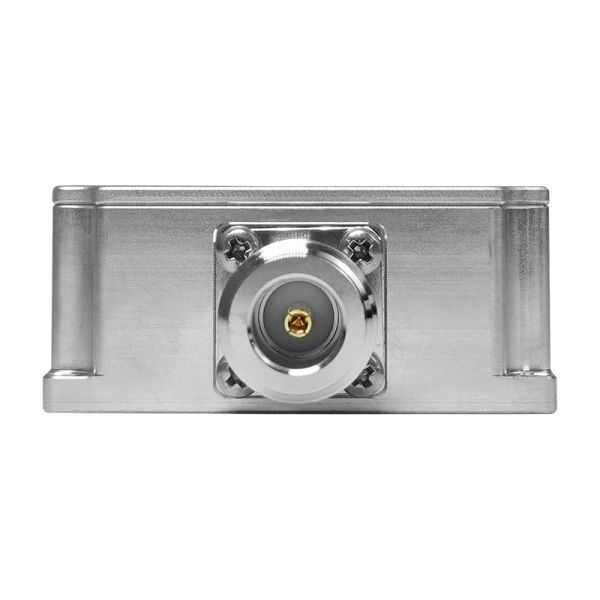

GaN 100W N type power amplifier drone wirelesss signal jammer module
GaN 100W N type power amplifier drone wirelesss signal jammer module
GaN 100W N type power amplifier drone wirelesss signal jammer module
GaN 100W N type power amplifier drone wirelesss signal jammer module
GaN 100W N type power amplifier drone wirelesss signal jammer module
GaN 100W N type power amplifier drone wirelesss signal jammer module
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-E8
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
Drone signal jammer module
Power :
100W
Frequency :
2G,3G, 4G,5G,GPS,Wifi,Customized
Application :
Government jail school
Jamming Range :
500-1000 meter(depends on the real environment)
Marterial :
Durable Alluminum Alloy

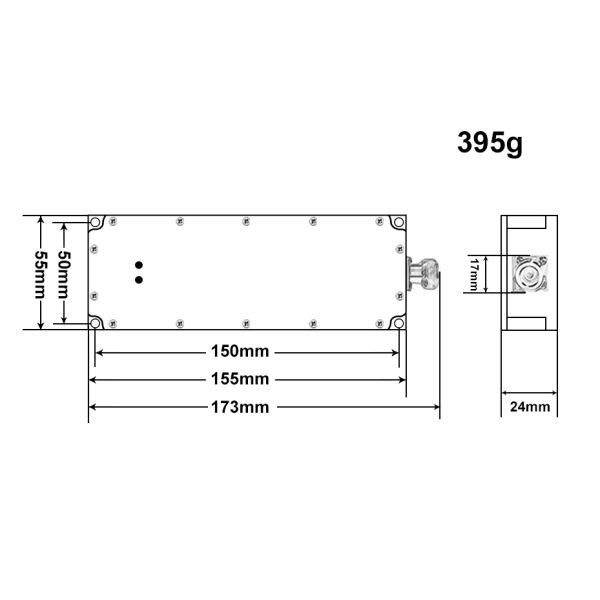

Size :
155*55*24 mm
Weight :
395g
Description

GaN 100W N type power amplifier drone wirelesss signal jammer module

This is a drone amplifier jamming module developed and manufactured by Texin Electronics. Jamming modules are an important component of drone countermeasure systems. The module can affect the jamming distance and effectiveness; choosing a high-quality module can accurately shoot down illegal drones.

GaN 100W N type power amplifier drone wirelesss signal jammer module is adopt low consumption high efficient GaN solution,it need operate 24-28V voltage .The inside PCB borad and chip totally hand welded that 100% guaranteed .400mhz 500mhz 600mhz 1.2ghz 2.4ghz ,the frequency band can be customized .

Feature

1. High power output signal to cut off specifical frequency signal of drone FPV

2. The signal to block can be customized according to different model of UAV

3. GaN solution low cosumption

4. N type connector more stable

5. Aluminum outshellgoos heat dissipation

6. Light weight and portable carry

7.Highly efficient to jamming the drone FPV

Jamming Specifications

100W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency Customized MHZ
2 Work Temperature -20~+70 ℃
3 Max Output Power 100 W
4 Work Voltage DC24-28 V
5 Max Gain 53 dB
6 Flatness ±1 dB　
7 Max Current 6 A
8 Output VSWR ≤1.5
9 Output Connector N/F 50Ω Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control high low
level current		 V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃
14 Size 155*55*24 mm
15 Weight 395 g


Application

Archaeological Study, Prison, Infrastructure, Stadium&Events, Conference, Military, Police

School, Libraries, Transportation, Yacht, Sea Port, Airports, VIP&Privacy, etc.

Precautions for use

  • Power supply needs to carry 28V 8A
  • If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
  • When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
