Specifications
Brand Name :
TeXin OEM
Model Number :
TXS100
Certification :
CE ISO
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Brand :
Texin
Frequency :
700-1000mhz
Power :
100W
Max Current :
6A
VSWR :
≤1.5
Material :
Exterior aluminum alloy shell
Size :
130*55*24 mm
Weight :
0.31Kg
Description

ODM &OEM 100W VCO Modulation 700-1000mhz drone fpv Signal Blocker For security protection

1. Product Introduction

This 100W anti drone signal jammer module is suitable for use in important places such as prisons and conference rooms ,workplace ,classroom, family . It can shield illege fpv drone in few second and the frequency cover 700-1000mhz in one module . Compare with regular module ,this 700-1000mhz wider jamming range and higher cost. The shielding frequency band can be customized according to your region and needs .

2. Product Feature

For This 100W 700-1000mhz :

* 16 high-gain omnidirectional antennas, which can be quickly shielded after installation and power-on;

* Built-in heat sink and external air vents have good heat dissipation effect, which can help the shield to better play the shielding effect;

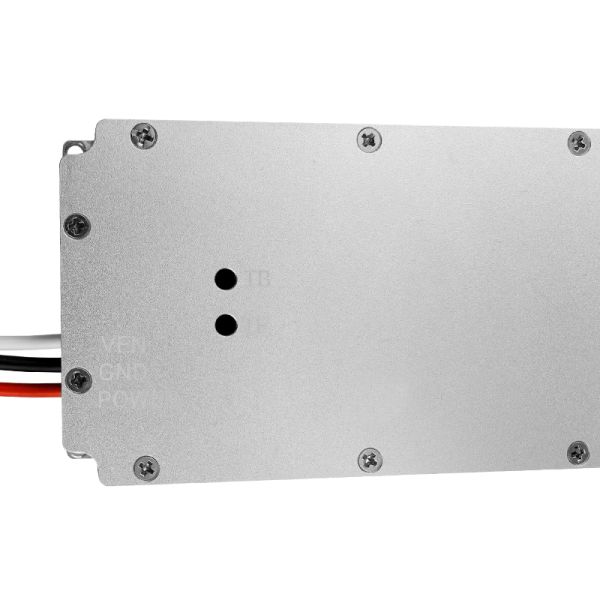

* Metal Housing, can withstand pressure, heat, water and corrosion;

*The overlapping shielding frequency bands can be customized, and the shielding effect is stronger;

*When shielding the mobile phone signal, only the downlink channel signal is shielded, and it will not have any adverse effect on the base station.

3.Specifications:

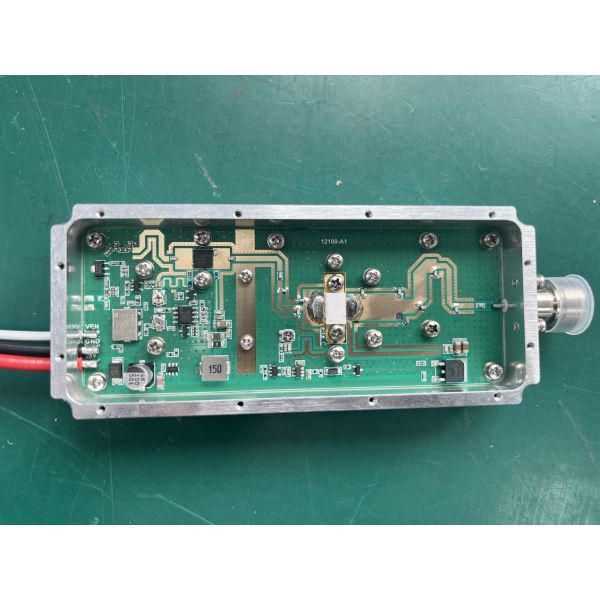

700-1000MHz 100W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency 700-1000 MHZ
2 Work Temperature -20~+70 ℃
3 Max Output Power 100 W
4 Work Voltage DC24-28 V
5 Max Gain 50 dB
6 Flatness ±1 dB　
7 Max Current 6 A
8 Output VSWR ≤1.5

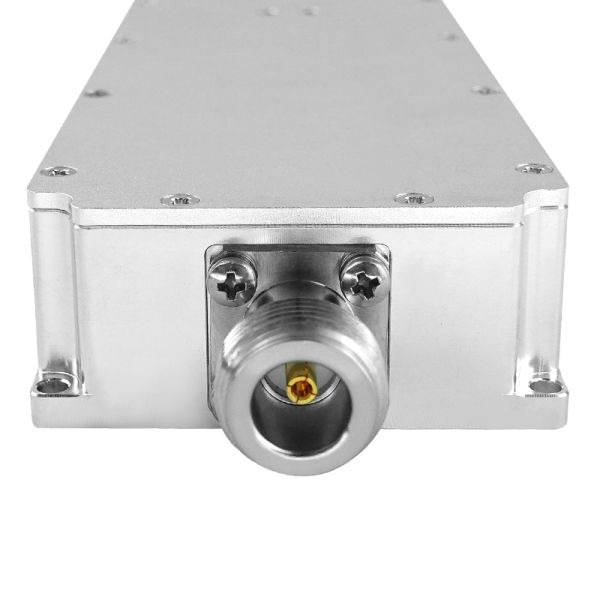

9 Output Connector SMA/F 50Ω Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control high low
level current		 V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃
14 Size 130*55*24 mm
15 Weight 0.31 Kg

4. Product Application

* It can be used in examination rooms, conference rooms, libraries, churches and other places where the use of drone is prohibited to prevent students from cheating and mobile phone noise pollution;

* It can be used in gas stations, gas stations, oil depots and other places to prevent fire or explosion caused by drone here;

*It can be used in serious places such as government bases and courts to prevent leaks;

* It can be used in companies or factories to prevent work accidents caused by the use illege drone .

Pictures:

ODM &OEM 100W VCO Modulation 700-1000mhz anti drone fpv jammer module For security protectionODM &OEM 100W VCO Modulation 700-1000mhz anti drone fpv jammer module For security protectionODM &OEM 100W VCO Modulation 700-1000mhz anti drone fpv jammer module For security protection
