High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
Specifications
Brand Name :
TeXin
Model Number :
TX-P100VGHN
Certification :
SGS,ISO9001,ROHS
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8 days
Packaging Details :
Durable case or box
Brand :
Texin
Power :
100W
Frequency :
400-3800MHz
Voltage :
24-28V
Gain :
50dbm
Type :
jammer module
Application :
Key area protection
Size :
130*53*19
Weight :
263g
Description
High Quality 24-28V GaN 50dBm Voltage Stabilization Drone Signal Jammer Module
This high-performance 100W drone signal jamming module uses a high-efficiency gallium nitride (GaN) chip and integrates voltage regulation and anti-interference design. It provides a stable 50dBm output power with a 24-28V DC input voltage, exhibiting strong anti-interference and voltage fluctuation resistance capabilities. It is widely used in low-altitude safety protection, signal control, and key area defense scenarios.
Key Features

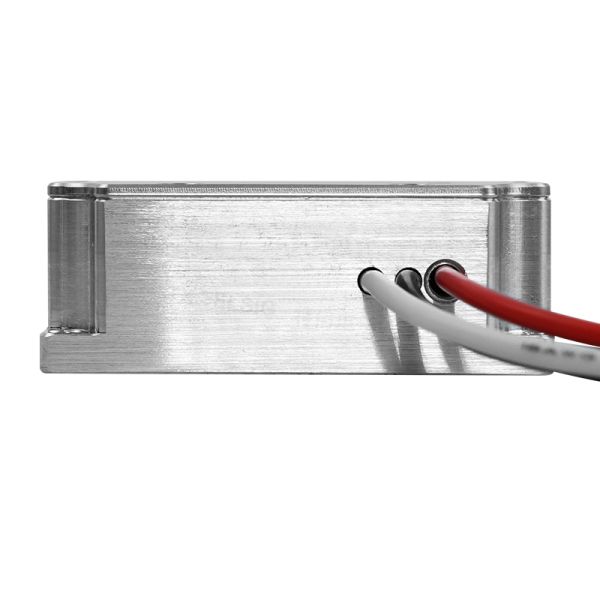

  • DC 24V-28V interchangeable operation - no separate boost power supply required

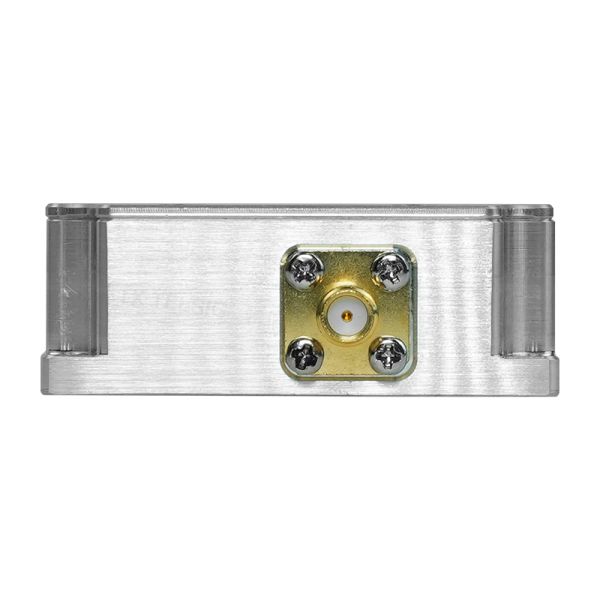

  • N connector and SMA connector options for better adaptation to different interference devices
  • Highly effective jamming of FPV, 1.2GHz, 2.4GHz, and 3.3GHz frequencies
  • High-performance aluminum material for excellent heat dissipation during prolonged operation
  • GaN chip technology for lower power consumption
  • Effectively suppresses power noise and external interference, ensuring output consistency and reliability
  • Strong transmission capability for effective control and suppression of target signals
Technical Specifications
No. Item Data Unit Notes
1Frequency400-3800MHz
2Work Temperature-20~+70℃
3Max Output Power100W
4Work VoltageDC24-28V
5Max Gain50dB
6Flatness±3dB
7Max Current7A
8Output VSWR≤1.5
9Output ConnectorSMA/F 50ΩCustomized
10Power Amplifier Efficiency45when Max Output
11Switch Controlhigh low level currentV0V off /0.6 on
12Standing Wave ProtectionOK
13Temperature Protection75°℃

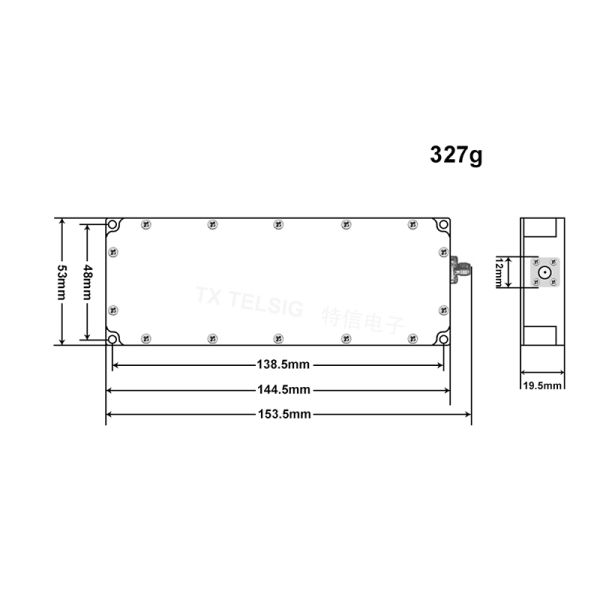

14Size53*139*19mm
15Weight0.263Kg
Applications
  • VIP privacy protection: Preventing illegal drones from tracking important clients
  • Airports: Preventing drone interference with flight paths
  • Agriculture: Preventing drone-based crop poisoning
  • Schools: Educational materials for student learning
  • Downtown areas: Combating terrorist drone attacks
  • Government security departments: Combating illegal and criminal activities
High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module High quality 24-28V GaN 50dBm Voltage Stabilization drone signal jammer module
Frequently Asked Questions
What frequency does this 24-28V drone signal jammer module operate at?
This drone signal jammer module is produced by ShenZhen Texin Electronics Co., Ltd. and can be customized according to your requirements.
How much does this 24-28V drone signal jammer module cost?
If you are interested in this drone signal jammer module, please contact us as pricing varies based on quantity.
What is the delivery time?
Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
