Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
Specifications
Brand Name :
Texin
Model Number :
TX-PD 50W
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, ,Paypal,etc
Supply Ability :
10000pcs per month
Delivery Time :
1-3 days
Packaging Details :
Durable case or box
Brand :
Texin
Type :
Jamming module
power :
50W
frequency :
5.8ghz
Features :
5.8ghz 50W circulator
Connector :
SMA / Female
Application :
Office,Hotel , Car ,etc
Advantage :
Gan circulator
Voltage :
28V
Current :
4.8A
Weight :
1050G
Description

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system

It is a wirelessRF drone signal shield security module dedicated to 5725~5850MHz signals. This module has the advantages of high average output power (50W output in stable operation), good in-band flatness, and small offset between upper and lower sidebands.

We are a professional signal jammer module manufacturer , support frequency band customization based on the customers' requirements

Parameters

No.ItemDataUnit
1Frequency5800MHz
2Test voltage28V
3Current4.2A
4Output50W
5Gain47dB
6Output stability1dB
7ConnectorN / male
8Output connector VSWR≤1.30 (No power and VNA test)
9Power supply wireRed+Black+Enable wire
10Enable ControlHigh ON Low Off
11Out shell Size150*53*20mmmm
12Mount hole48*126mm
13Weight316g
14Work Temperature-40~+65℃
15Out shell materialAluminum
16Vibration needCar load OK

Features:


*Working frequency band: 5.7~5.9GHz
*Working voltage: 32V
*Maximum output power (P1dB): 50W (47dBm)
*Working current: 4500mA@Pout 47dBm 28V
*Average efficiency: 40%
*Working temperature: -20℃～60℃


Physical Structure

  • Shell size: 53*130*19mm
  • RF interface: the output end is SMA external thread and internal needle
  • Power supply port: red and black wire
  • Shell: aluminum material, natural color oxide sandblasting
  • Fixed holes: four fixed positions around the shell
  • Net weight: 0.254KG

Pictures:

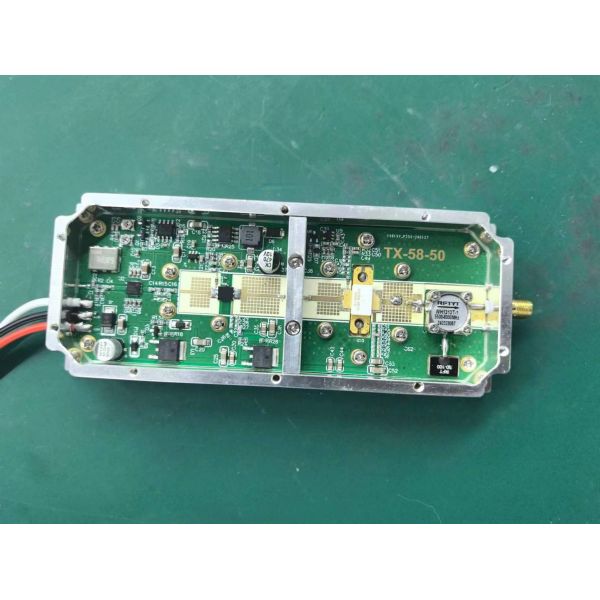

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone systemSignal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system

Signal Blocking28V 50W SMA female circulator 5.8ghz transmit module for anti drone system
