Texin RF Amplifier Module 12-24V GPS WIFI 5.8G 2.4G Jammer Module for Anti Drone Solution

Specifications

Brand Name :

TeXin

Model Number :

TX-H14K

Certification :

ISO9001,SGS

Place of Origin :

Shenzhen,China

MOQ :

Price :

Negotiated

Payment Terms :

L/C, D/A, D/P, T/T,

Supply Ability :

10000pcs per month

Delivery Time :

1-3 days

Packaging Details :

K=K 5 layer paper carton

Frequency :

Customized

Test voltage :

12-24V

Current :

1.2A

Output :

Gain :

39dB

Output stability :

1dB

Connector :

SMA / Female

Output connector VSWR :

≤1.30 (No power and VNA test)

Power supply wire :

Red+Black+Enable wire

Enable Control :

High ON Low Off

Out shell Size :

89*43*15 90mm

Weight :

90g

Work Temperature :

-40~+65℃

Out shell material :

Aluminum

Vibration need :

Car load OK

Description

8W Jammer Module RF Amplifier Module (12-24V DC)

This module amplifies signals in both directions (transmit and receive), making it ideal for building repeaters, two-way radios.This module is of the high average output power, good in-band flatness and the small offset between upper and lower side band. The frequency band and output power of the module can be customized according to customer needs.

1.Key Features:

Bidirectional Operation
Wide Voltage Input: 12-24V DC, compatible with vehicles and batteries
Stable Performance: Reliable gain and low noise
Compact & Easy to Integrate

2.Attention

• Power supply better carry about 28V 1.8A when itself 1.2A for its stable work

• Heat dissipation measure is necessary including the thermal glue, suitable-size heat sink and cooling fans

• Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

3.Main Uses:

Signal repeaters, two-way communication systems, RFID range extension, and custom wireless data links.

A simple, ready-to-use solution for boosting the performance and range of your RF applications.

4.Parameter

No.	Item	Data	Unit
1	Frequency	800-915(Customized)	MHz
2	Test voltage	12-24	V
3	Current	1.2	A
4	Output	8	W
5	Gain	39	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

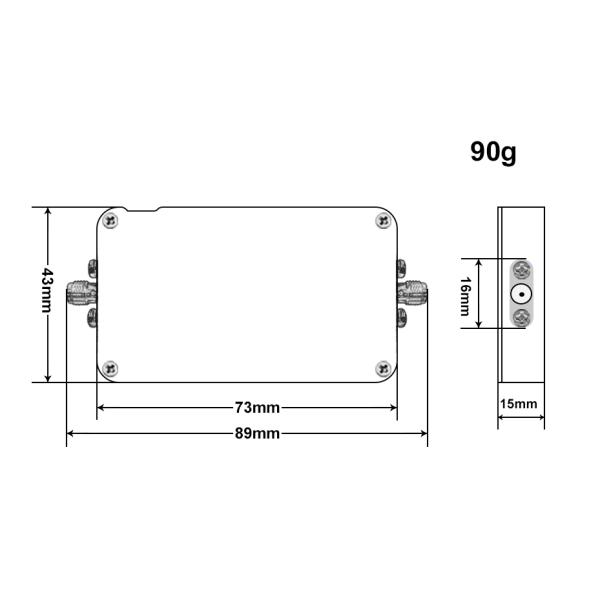

11	Out shell Size	894315	mm
13	Weight	90	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load ok

Texin RF Amplifier Module 12-24V GPS WIFI 5.8G 2.4G Jammer Module for Anti Drone Solution

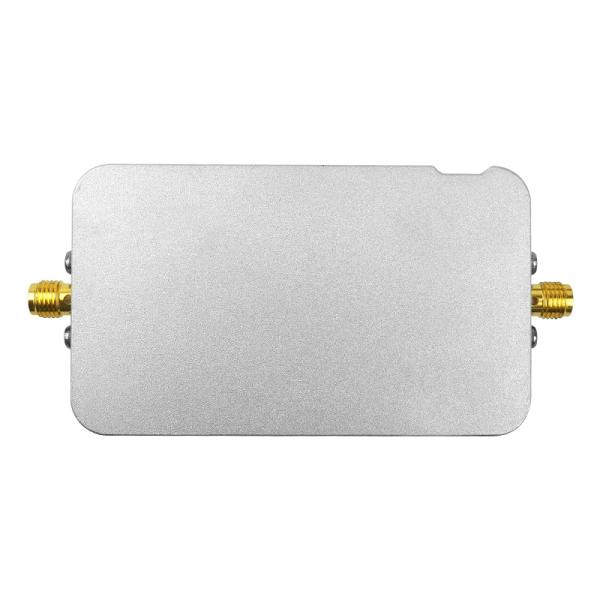

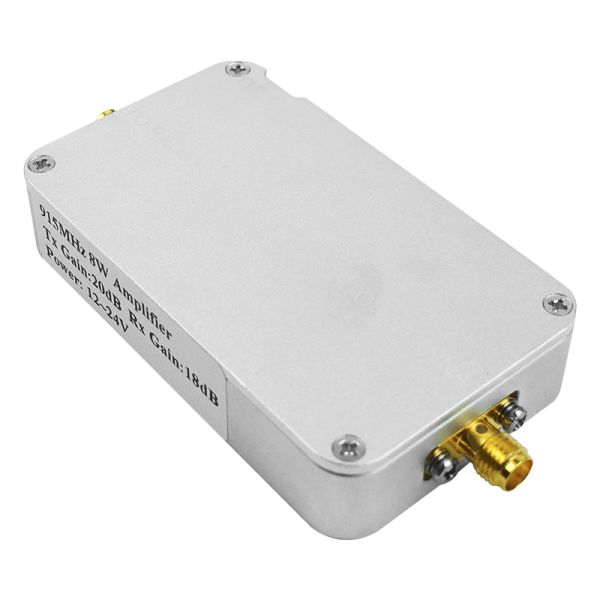

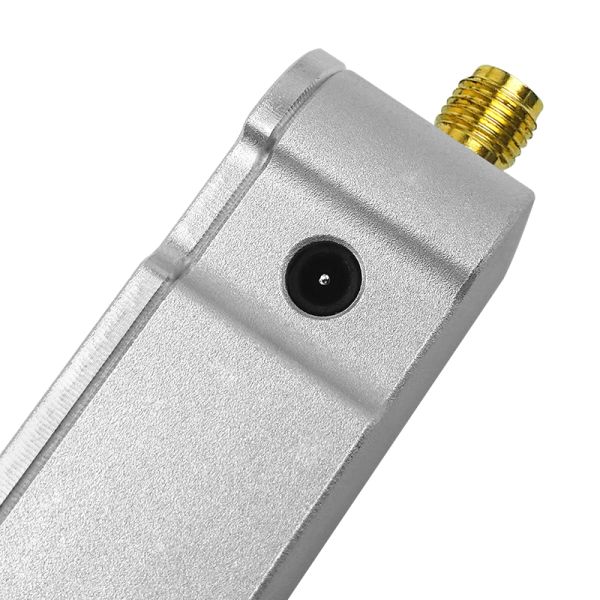

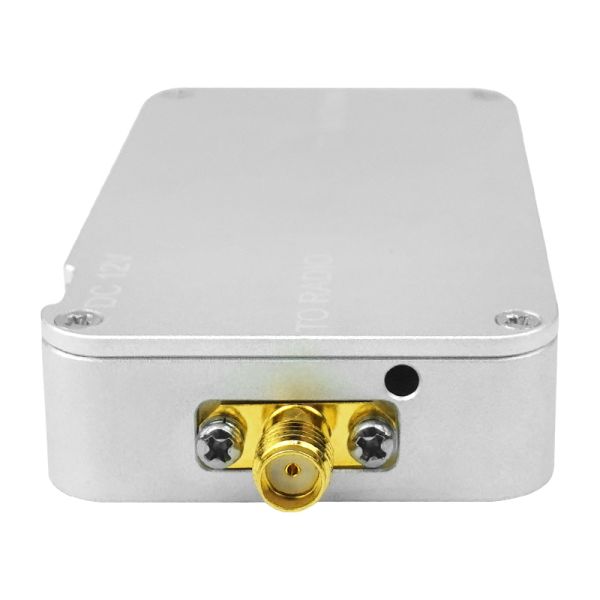

5.More picture

Texin RF Amplifier Module 12-24V GPS WIFI 5.8G 2.4G Jammer Module for Anti Drone Solution
