Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-CM12
Certification :
SGS, ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, T/T, Paypal,etc.
Supply Ability :
100,000pcs/month
Delivery Time :
2 Days
Packaging Details :
Foam Box
Brand :
Texin
Product type :
dual band drone signal extender
Frequency :
Wifi 2.4 5.8ghz
Warranty :
1year
Max Output Power :
10w
Applications :
FPV Signal Booster Drone Signal Extender
Description

Waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender outdoors Drone enthusiasts

The waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender can enhence the image transmit of drone .Outshell using high performance waterproof material that Unaffected by harsh environments.The wifi 2.4ghz 5.8ghz dual band drone signal extender each output 10W .It is more competitive than ordinary 5W drone power boosters on the market.
Product Feature :

Maximum output power 10W

Ultra-large capacity battery, 6400mAh

2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching

All-aluminum shell, better cooling effect

Specifications :

Number Items Specifications
1 Frequency Range 2400-2500MHz 5150-5850MHz
2 Max Output Power 40dBm(10W) 40dBm(10W)
3 Antenna Gain 15dB±1 18dB±1
4 Battery Capacity 6400mAh
5 Receiving Gain 16dB±1 16dB±1
6 Transmission Gain: 18dB±1 18dB±1
7 Input Trigger Power Min:3dBm Max:23dBm Min:3dBm Max:23dBm
8 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9 Noise Figure ＜2.5dB ＜2.5dB
10 Current Supply 2.2A@Pout 40dBm 12V 2.2A@Pout 40dBm 12V
11 TX/RX Switch Time Delay ＜1 us
12 Charging Voltage 22V/1.2A
13 RF Connector N
14 Operating Temperature -30℃～+70℃
15 Storage Temperature -40℃～+150℃
16 Operating Humidity Up to 95% rel. humidity
17 Shell Size (mm)
18 Shell Material Aluminum
19 Net Weight Kg

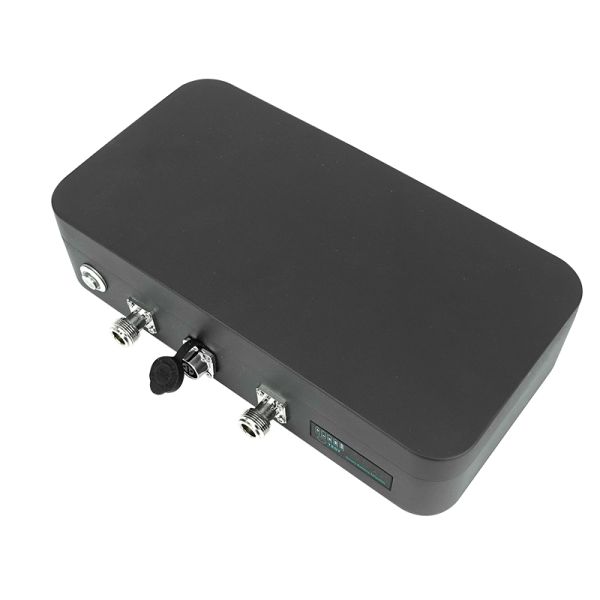

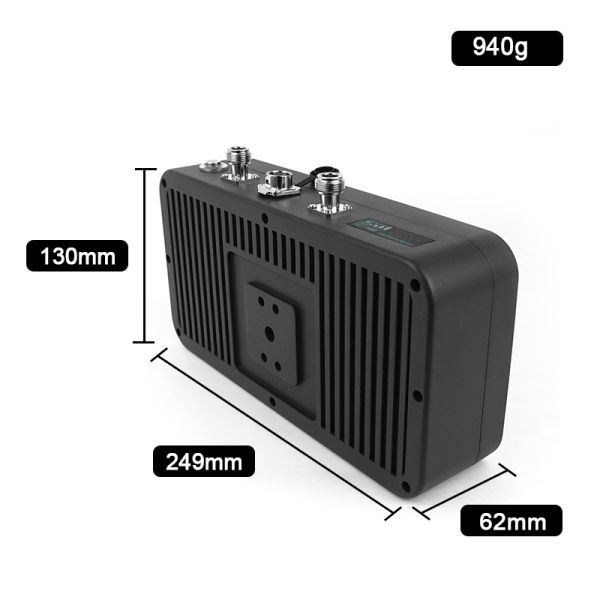

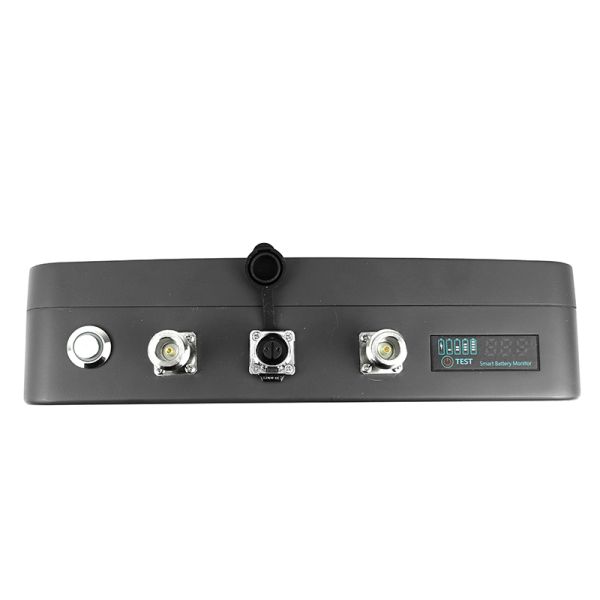

Pictures :

Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiastsWaterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiastsWaterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
