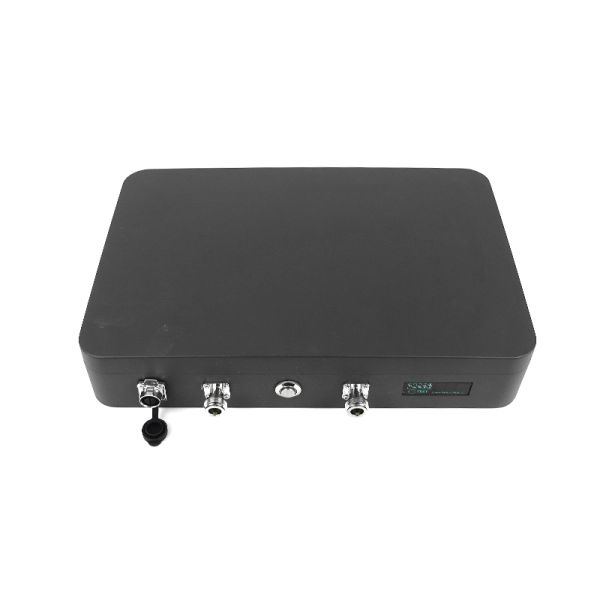

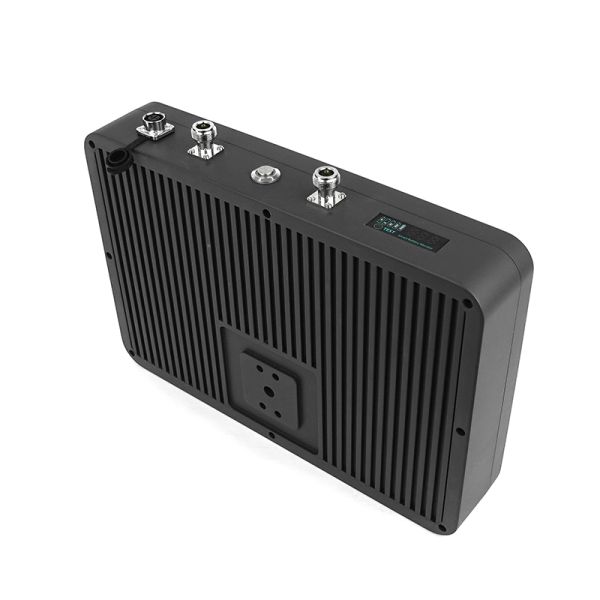

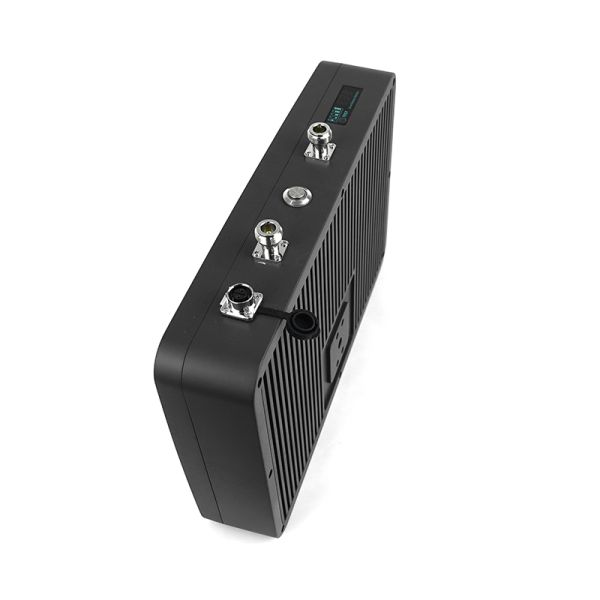

10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-CM12
Certification :
SGS,ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Product name :
Cute Cat-shape 12 Channel Desktop Signal Jammer
Size :
32*35.5*10
Weight :
4.6kg
Jamming bands :
Customized Such As Phone 2345G VHF UHF WiFi Lojack,etc
Shield Range: :
10-50 meters
Warranty :
1 year
Description

Desktop Cute Cat-Shape 12 Channel WiFi Signal Jammers Blocker RF 5G Jammer

Product introduction:

The TXRC2452T is a dual band bidirectional UAV signal booster (2.4GHz, 5.2GHz, and 5.8GHz). It is a bidirectional power amplifier specifically developed for 2.4GHz, 5.2GHz, and 5.8GHz wireless image transmission applications, conforming to wireless image transmission standards. This product employs leading single-carrier modulation technology, offering extremely long air transmission distances and strong anti-interference capabilities. It is compatible with frequency spreading technologies such as Direct Sequence Segmentation (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), significantly extending wireless RF communication distances while maintaining the same wireless device transmission rate. The product features small size, high efficiency, good linearity, and stable reliability.

a) Temperature: -40～+70℃;

b) Operating relative humidity: 5%～95%, non-condensing;

c) Atmospheric pressure: (70～106) kPa;

d) Humidity and heat: Can operate in high-temperature and high-relative-humidity environments with temperatures not lower than 40℃ and relative humidity not lower than 95%;

e) Storage temperature: -40～+125℃;

f) Storage humidity: 5%～98%, non-condensing.

Product Specification

Number Items Specifications
1 Frequency Range 2400-2500MHz 5150-5850MHz 5150-5350MHz
2 Max Output Power 40dBm(10W) 40dBm(10W) 40dBm(10W)
3 Antenna Gain 15dB±1 18dB±1 18dB±1
4 Battery Capacity 6400mAh
5 Receiving Gain 16dB±1 16dB±1 16dB±1
6 Transmission Gain: 18dB±1 18dB±1 18dB±1
7 Input Trigger Power Min:3dBm Max:23dBm Min:3dBm Max:23dBm Min:3dBm Max:23dBm
8 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9 Noise Figure ＜2.5dB ＜2.5dB ＜2.5dB
10 Current Supply 2.2A@Pout 40dBm 12V 2.2A@Pout 40dBm 12V 2.2A@Pout 40dBm 12V
11 TX/RX Switch Time Delay ＜1 us
12 Charging Voltage 22V/1.2A
13 RF Connector N
14 Operating Temperature -30℃～+70℃
15 Storage Temperature -40℃～+150℃
16 Operating Humidity Up to 95% rel. humidity

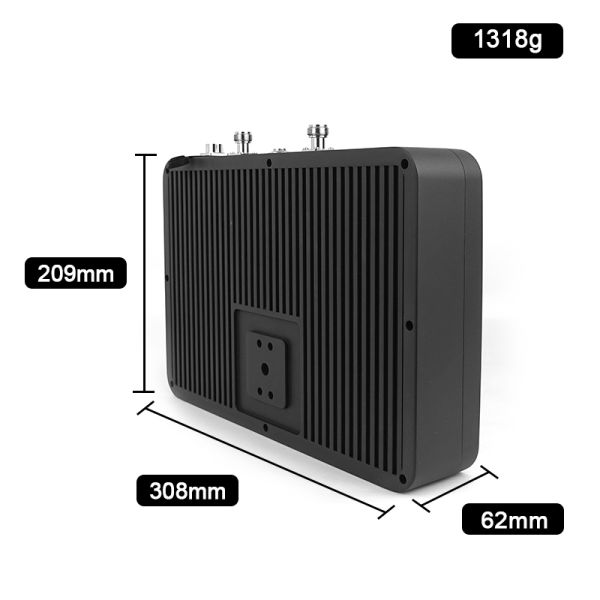

17 Shell Size (mm)
18 Shell Material Aluminum
19 Net Weight Kg

Pictures:

10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone10W 6400mAh 2.4G/5.2G/5.8G Signal Booster extender with inside battery for fpv drone
