Specifications
Brand Name :
TeXin
Model Number :
TXSYC3000
Certification :
CE,SGS,IOS9001
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, etc.
Supply Ability :
10000pcs per month
Delivery Time :
1-7 days
Packaging Details :
Neutral kraft paper box with 5 layer K=K kraft paper carton
Type :
Omni antenna
Fequency :
3500-3700mhz
Power :
50W
Polarization :
vertical
Dimensions­mm(Height/Width/Depth) :
ɸ93*19mm
Weight :
0.61kg
Horizontal Beamwidth(0º) :
360º
Cable type :
RG316
Vertical Beamwidth(0º) :
55±5º
Description

Small-size high-frequency 5.5dBi 3GHz anti-interference FPV omnidirectional transmission clover antenna

> The small size 3500-3700mhz four leaf clover antenna .It can transmit signals in all directions in complex environments, and is lightweight and compact. It can be used in key areas such as wireless communication, radio frequency microwave, and drone countermeasures.It can cover a frequency range of 3500-3700. For best results, install and use it according to the instructions.

> TeXin is a professional manufacturer for signal jammer in Shenzhen city, China

We are the expert and supplier for the drone signal jammer, drone jammer module

antenna , RF jammer module chips and other signal jammer parts and accessory.

> Customer could buy or purchase us the signal jammer blocker by online payment way

such as the TT, Credit card, Visa, Paypal, WestUion, etc

Electrical Specifications
Frequency Range 3500-3700 MHz
Gain 5.5dBi
VSWR <1.5
Polarization Vertical
Non-circularity ±2dB
Input lmpedance 50Ω
Max Input Power 50W

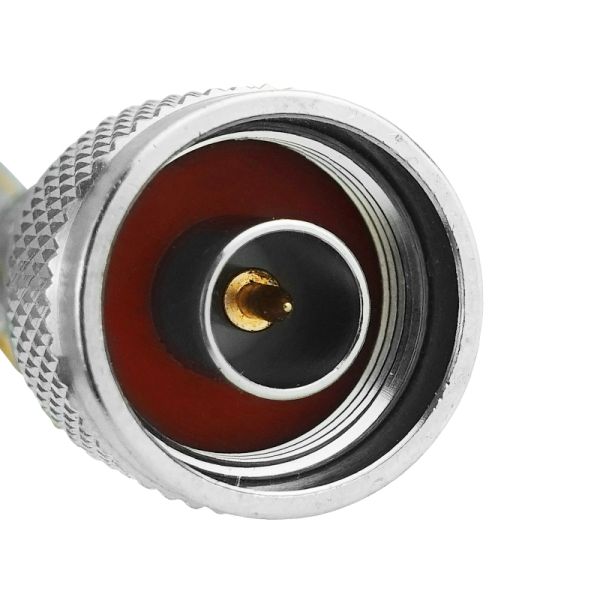

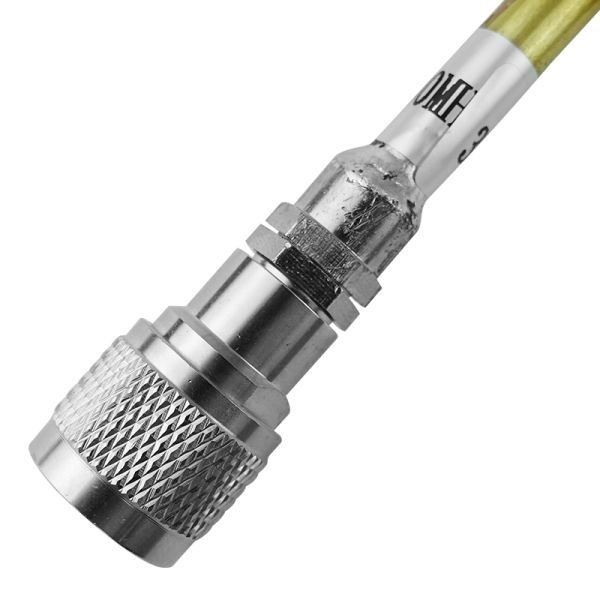

Connector N Female
Mechanical Specifications

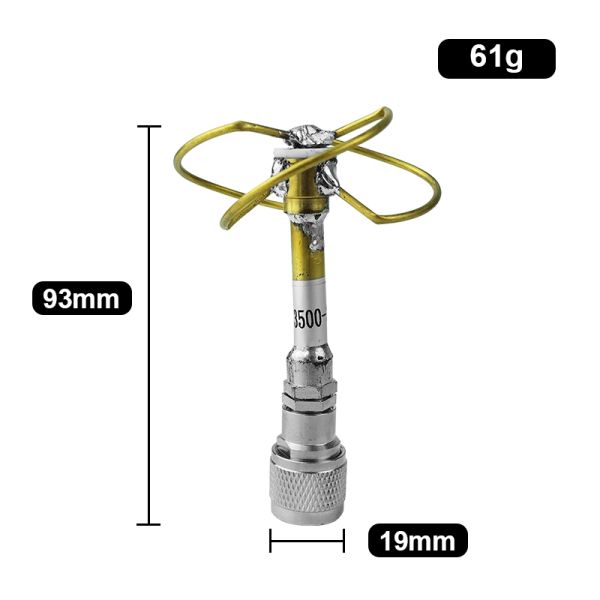

Dimensions 93*19 mm
Weight 84g
Radome Material Copper
Radome Color Gold

Main Feature

*High-gain clover antenna, universal for transmission/reception.

*Antenna adopts circular polarization design, anti-interference.

* Ultra-low standing wave ratio, high gain.

*360-degree omnidirectional coverage, no dead angle.

*Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle.

*The antenna root is reinforced, and the connection is more reliable and durable.

Application

1. Industrial router

2. outdoor AP

3. Communication base station

4. Wireless module

5. Antenna radio

6. Digital map transmission
