Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-SYC12001300
Certification :
SGS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Product name :
four leaf clover antenna
Shield bands :
customized
power :
100W
Warranty :
1 year
Size :
93*19mm
Weight :
83g
polarization :
Vertical
Connector :
N-female
Description

Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female omnidirectional antenna

Product introduction:

TX-SYC12001300 is specially use in outdoor four leaf clover antenna ,the antenna support different frequency band customization such as 300mhz 400mhz 500mhz 1200mhz 2.4ghz 5.8ghz .Taking vertical polarization Its anti-interference performance in complex electromagnetic environments has been further optimized.On the other hand, the antenna adopts a waterproof structure, making it more suitable for outdoor use.widely used in the family ,cars ,etc, better protect one's privacy .

Specifications :

Electrical Specifications
Frequency Range 1200-1300MHz
Gain 3.5dBi
VSWR <1.5
Polarization Vertical
Non-circularity ±2dB
Input lmpedance 50Ω
Max Input Power 100W

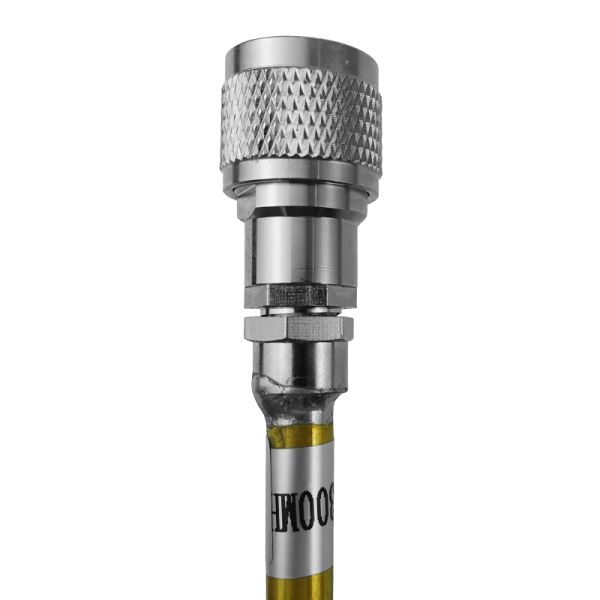

Connector N Female
Mechanical Specifications

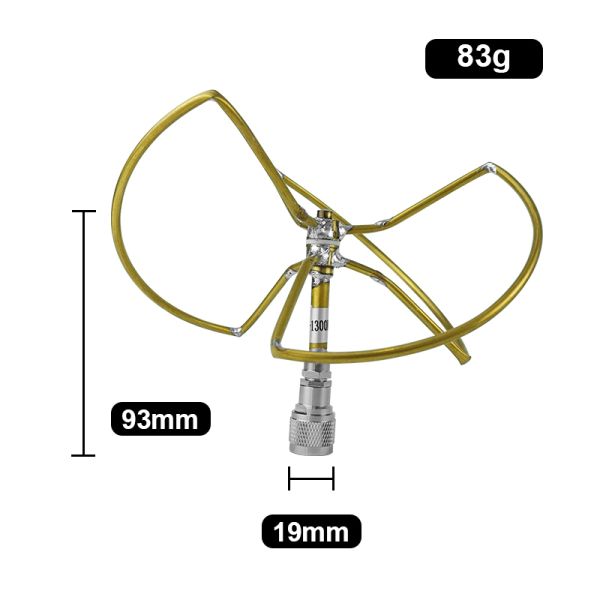

Dimensions 93*19mm
Weight 84g
Radome Material fiberglass
Radome Color Gold

Product features :

  1. 1. The frequency band customized as requirement, can be compatible multi-signal at the same time;
  2. 2. Shaped like a four-leaf clover, radiating in all directions
  3. 3. Outshell is a fiberglass , wear-resistant, scratch-resistant, good heat dissipation;
  4. 4. Updated high gain vertical four leaf clover antenna ;
  5. 5. Pocket size, compact design;
  6. Out door use highly efficient to jamming wireless signal such as drone UAV FPV DJI;
  7. Made of high-quality materials, with low wear and tear and limited durability.
  8. Reduces energy loss at high altitudes; interference effect is significant.
  9. Support signal of 2g 3g 4g 5g and wifi gps VHF UHF Lojack ect.
  10. Packing with kraft box and internal with foam, more safety for shipment

Pictures:

Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional

Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional

Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
