UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
Specifications
Brand Name :
TeXin
Model Number :
TXWSYC200300
Certification :
CE ISO
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
100000/month
Delivery Time :
Within 3 work days
Packaging Details :
Durable case or box
Warranty :
1 year
Function :
Jamming signal bands
Size :
380*280*78mm
Weight :
2.72Kg
Shield bands :
Customized such as 100MHZ 200MHZ 800MHZ 900MHZ
Shield range :
100-200 square meters
Description

UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna

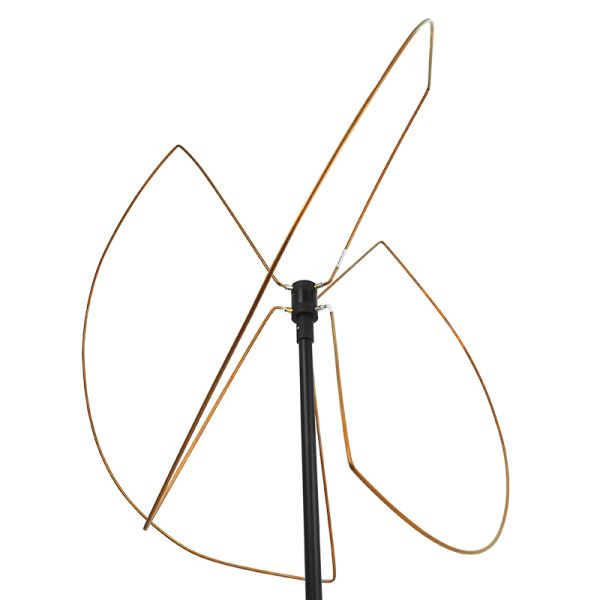

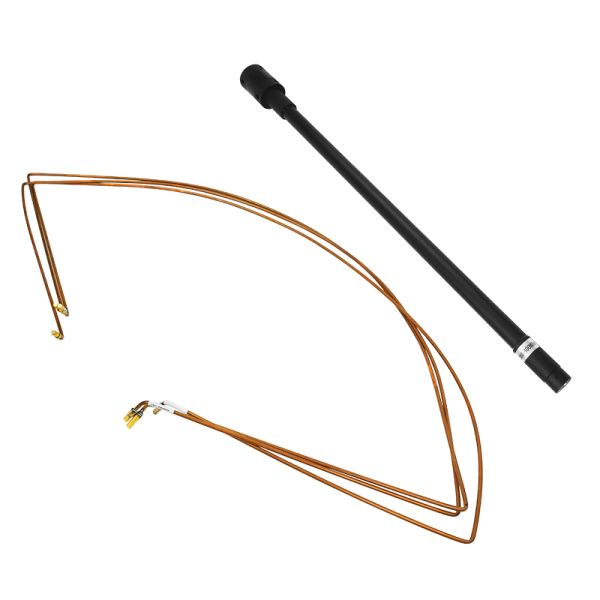

This large, four-leaf clover-shaped anti-drone antenna uses a high-quality copper core and is hand-welded, giving it superior signal transmission capabilities and enabling long-distance transmission. It supports low-altitude or high-altitude installation and can effectively intercept high-definition image-transmitting remotely controlled drones and FPV devices, protecting privacy and security.

FrequencyRange Customized
Gain(dBi) 8±1dBi
VSWR ≤1.5
Polarization Vertical
Horizontal Beamwidth(0º) 360°
Vertical Beamwidth(0º) 65±10º
ovality(dB) ≤±2dB
Input Impedance(Ω) 50Ω
Maximum input power(W) 100W
Inpur connector type N-J
Packing size(mm) 380*280*78mm
Antenna weight(kg) 2.72Kg
Rated Wind Velocity(m/s) 60m/s
Operational Humidity(％) -30～70 º

Product features:

1. The jamming radius is up to 100-200 meters , which can meet daily needs

2. With high output power , the total power is 100Watt .

3. Support signal bands customization such as 800mhz 900mhz 1.2ghz 2345G, WiFi 5.8G , WiFi2.4G, GPS

4. Four leaf clover antenna design, easy to use, space saving, convenient and fast
5. Original designed and the size power frequency band can be customized
6. Engineering and durable shell: waterproof, wear-resistant and heat-resistant
7. Convection vent and built-in efficient radiator and fan prevent local heat accumulation and efficient heat removal
8. Simple appearance, small volume and small space occupation
9. Simple and convenient installation

UAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antennaUAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antennaUAV signal blocker 200-300mhz 100W outdoor windproof waterproof four leaf clover antenna
