Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-H14K
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
50,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Brand :
Texin
type :
Drone capture device
Jamming Type :
2G,3G, 4G,5G,GPS,Wifi,Customized
Customized Frequency :
20Mhz-6.5Ghz by different country&customer need
Jamming Range :
5-20 meter
Marterial :
Durable Alluminum Alloy
Size :
330*230*56 mm
Weight :
5.0kg
Description

Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area

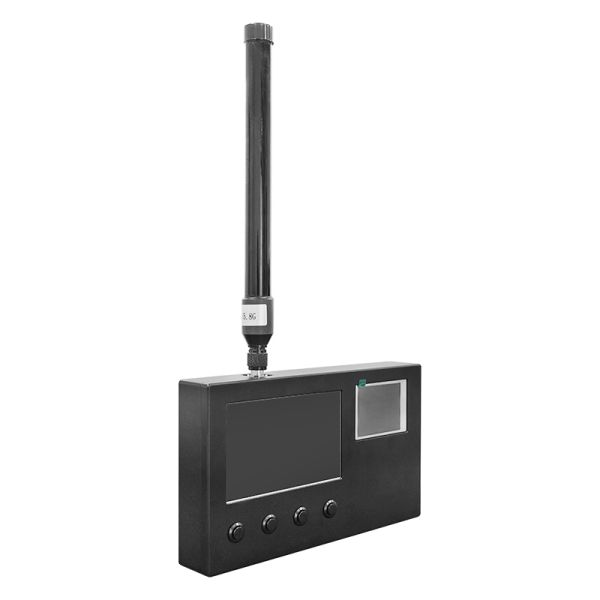

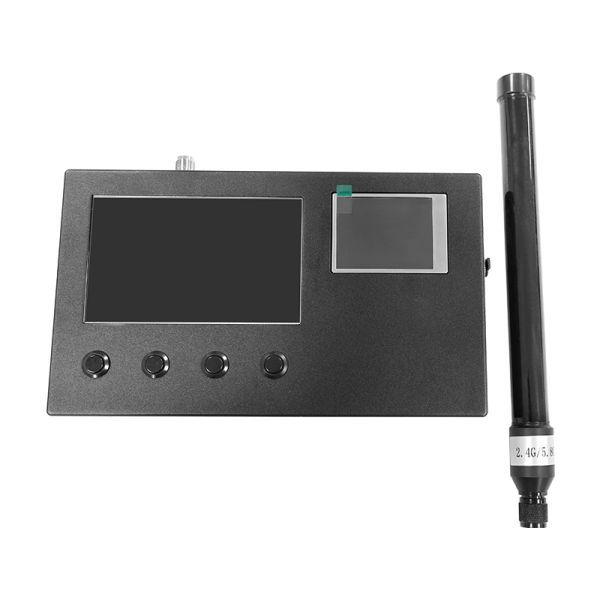

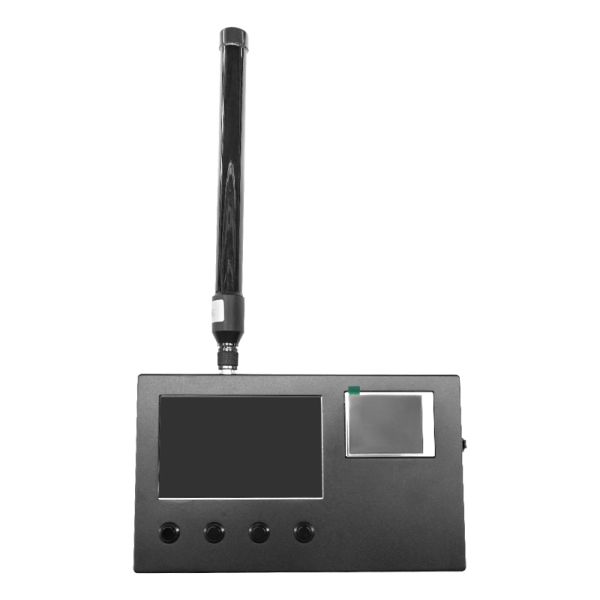

The Texin handheld FPV image Hawkeye is a portable device with high sensitivity and high-definition interception. The Hawkeye uses analog modulation to transmit wireless video signals, which can detect and identify various FPV drone image transmission signals with high reliability. In addition, the device has a wide operating frequency band and uses base band signal analysis. In addition to the conventional image transmission 1.2GHz, 2.4GHz,and 5.8GHz frequency bands, it is also applicable to 720MHz, 2.6GHz, 3.3GHz, 4.4GHz, 4.9GHz, and 6.2GHz FPV image transmission signals.

The device has a built-in 12V battery, which can work continuously for 10 hours when fully charged, and supports charging while the device can display the detected FPV image in real time with the CVBS signal input, and scan other targets while monitoring the target object.

Product Feature

  • Video signal CVBS signal input has high sensitivity and standard definition image transmission

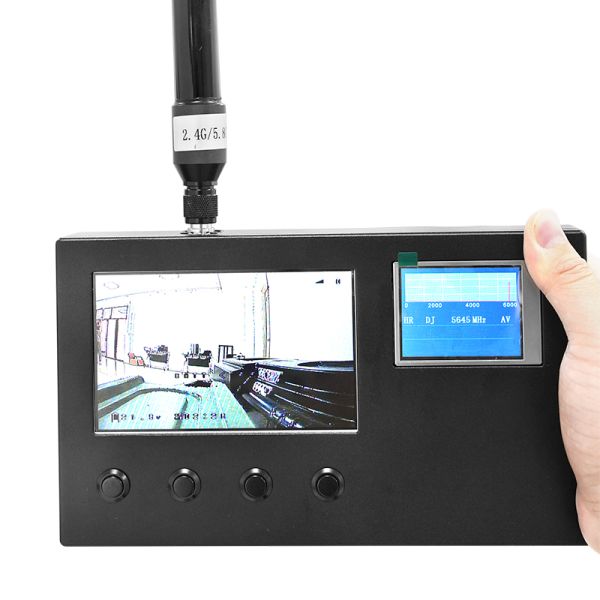

  • Can project FPV images in real time and scan multiple targets
  • Supported frequency bands 1.2GHz, 2.4GHz, 5.8GHz, 720MHz, 2.6GHz, 3.3GHz, 4.4GHz, 4.9GHz, 6.2GHz
  • Integrated frequency band port, all frequency bands use the same RF signal input port

Specification


Name Mini Standard value Max Remark
Input frequency range 700MHz —— 6300MHz Continuous coverage
Detection and recognition sensitivity(@BW=18MHz) -92dBm -94dBm —— 700-1400MHz
-91dBm -93dBm —— 1400-4300MHz
-89dBm -91dBm —— 4300-6300MHz
RF Input Impedance —— 50 Ω ——
RF Input damage level +33dBm(2W) —— —— Continuous Wave 60s
Supply voltage 12V DC
Power consumption —— 4.5W ——
Temperature adaptability -40℃ —— +70℃ Shell needs＜90℃


Application

1. School, Exam Room, Prison, Club, Government

2. Conference Room, Auditoriums, Law court

3. Cinema, Theater museum

4. Place where mobile and other signals are prohibited such as service station, hospital

border petrol, Customs, etc.

Standard drone capture 2.4ghz 5.2ghz 5.8ghz High-definition snow screen anti drone area
