Specifications
Supply Ability :
100,000pcs/month
Type :
Drone Detection module
Model Number :
TXA3-36
Detection distance :
2KM
MOQ :
1
Delivery Time :
In 2 work day
Size :
70*40*9mm
Payment Terms :
T/T,Paypal,Etc.
Frequency Range :
700-6300MHz
Weight :
25g
Price :
Negotiation
Application :
Drone fpv detector
Certification :
SGS,ISO9001
Place of Origin :
China
Packaging Details :
Durable case or box
Brand Name :
TX TELSIG
Description
Full-band 400MHz 500MHz 6.2GHz 7.2GHz UAV Detection Module
The full-band FPV detection and identification module is a high-performance radio receiving and analysis device, specifically designed for various wireless video signals using analog modulation methods. It is especially suitable for highly reliable detection, identification, and alarm of FPV racing drone video transmission signals in various standard and non-standard frequency bands.
Key Features
  • Full-band FPV detection and recognition module
  • Utilizes a low-noise, high-dynamic-range front-end signal conditioning solution
  • Offers a wide operating frequency range and lower power consumption
  • Covers common FPV image transmission frequency bands
  • Supports wide voltage (4.75~36V)
  • Supports various display devices with CVBS signal input to display real-time video images transmitted by the detected target
Technical Specifications
Model TXA3-36
Frequency Bands 2400-2485MHz, 5000-6300MHz, 700-1500MHz, 3000-4000MHz, 4000-5000MHz
Target Drones DJI, Quadrotor, Fixed Wing, DIY, FPV
Detection Range 2km OFDM / 4km FPV 5.8G 2W
Working Angle 360°
Voltage DC 2.7~5V
Power Consumption 3.5W
Charging Method DC 5V

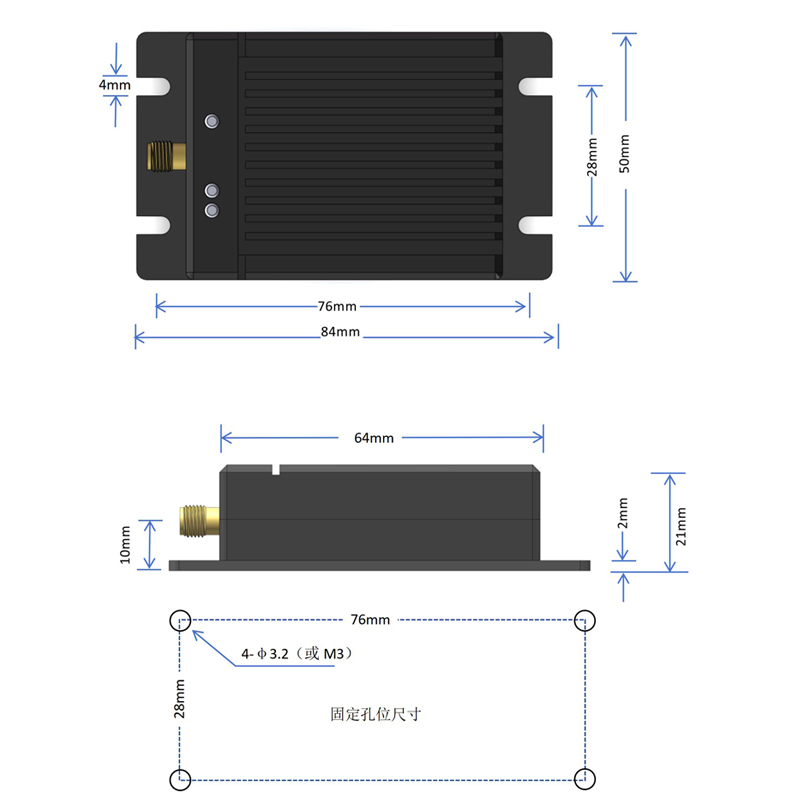

Dimensions 84×50×21mm
Weight 125g
Identification Type OFDM High-definition image transmission, FPV analog image transmission
Advantages
  • Outputs frequency, signal strength, timestamp, and alarm signal
  • TCP/UDP Ethernet port + GPIO alarm interface for easy connection to host computer, jammer, and direction finding unit
  • Supports external direction finding antenna array to acquire target azimuth information
  • Wide temperature and voltage power supply, supporting fixed-point and vehicle-mounted field deployment
  • Covers 400-500MHz ELRS remote control and 6.2-7.2GHz modified FPV image transmission, identifying modified racing drones missed by traditional detection equipment

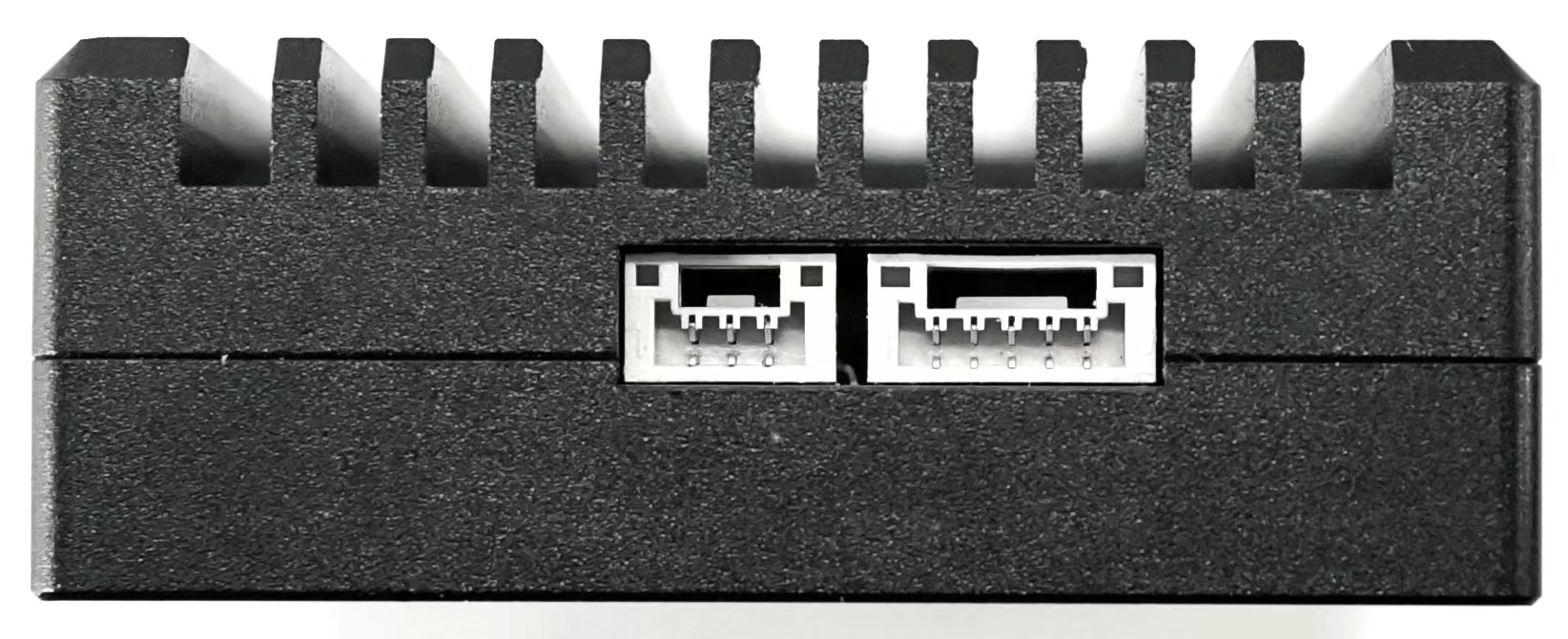

Product Images
700-6300MHz UAV Detection Module with 2KM Detection Distance and 360° Working Angle for Drone Signal Detection 700-6300MHz UAV Detection Module with 2KM Detection Distance and 360° Working Angle for Drone Signal Detection
Frequently Asked Questions
Does it support customization?
Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.
Are you the manufacturer?
Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.
How do you handle shipping?
If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.
