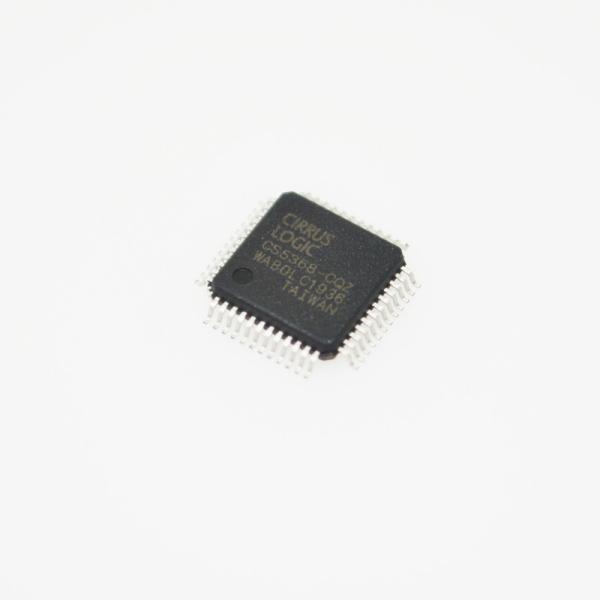

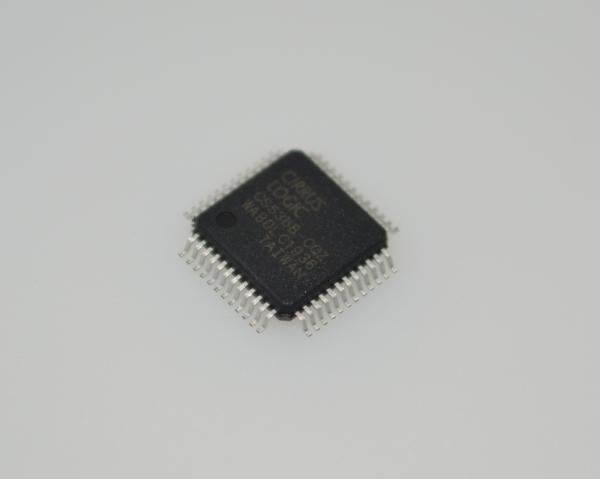

CS5368-CQZ 8-Channel 24-Bit ADC 114dB SNR 192kHz Sampling I2S/TDM 3.3V LQFP-48 -40anddeg;C to +85anddeg;C

andnbsp;

Features
andnbsp; Advanced Multi-bit Delta-Sigma Architecture
andnbsp; 24-Bit Conversion
andnbsp; 114 dB Dynamic Range
andnbsp; -105 dB THD+N
andnbsp; Supports Audio Sample Rates up to 216 kHz

andnbsp; Selectable Audio Interface Formats

andnbsp; andnbsp; -Left-Justifed, 2S, TDM
andnbsp; andnbsp; -8-Channel TDM Interface Formats

andnbsp; Low Latency Digital Filter
andnbsp; Less than 680 mW Power Consumption
andnbsp; On-Chip Oscillator Driver

andnbsp; Operation as System Clock Master or Slave

andnbsp; Auto-Detect Speed in Slave Mode

andnbsp; Differential Analog Architecture

andnbsp; Separate 1.8 V to 5 V Logic Supplies forControl and Serial Ports
andnbsp; High-Pass Filter for DC Offset Calibration
andnbsp; Overflow Detection
andnbsp; Footprint Compatible with the 4-ChannelCS5364 and 6-Channel CS5366

andnbsp;

Additional Control Port Features
Supports l2C or SPiandtrade;m Control interface perspecifications on page 17 and page 18
Individual Channel HPF Disable
Overflow Detection for Individual Channels
Mute Control for individual Channels
Independent Power-Down Control per ChannelPair

andnbsp;

Applications

1.Professional Audio Equipment
andnbsp; Multi-Microphone Array Systems: 8-channel synchronous sampling for beamforming inconference systems/smart speakers
andnbsp; High-End Recording Devices: 24-bit/192kHz + 114dB SNR for studio-grade audio quality

andnbsp; Audio Interfaces: 12S/TDM compatibility for DSP/FPGA digital processing
2.Industrial Test andamp; Measurement
andnbsp; Acoustic Analyzers: Multi-channel vibration/noise synchronous acquisition

andnbsp; Medical Ultrasound Front-Ends: High dynamic range signal capture
3. Automotive Electronics
andnbsp; Active Noise Cancellation (ANC): Real-time multi-point cabin noise sampling

andnbsp; In-Car Surround Sound: Supports multi-channel HD audio decoding

andnbsp;

INFORMATION

andnbsp;

Drawing
