NLAS2750MUTAG Low On-Resistance (0.6Ω) High-Speed Switching 1.8V-5.5V Wide Voltage ESD Protection Tiny SOT-23 Package RoHS Compliant Ideal for Portable & IoT Devices

Features

• Capable to Switch Negative Swing Audio Signals Without Requiring a DC Blocking Capacitor

• Low On−resistance (RON)

• Low Voltage Digital Control Logic: (VINH = 1.4 V @ VCC = 2.7 V to 4.3 V)

• Low Power Consumption (ICC ≤ 250 nA)

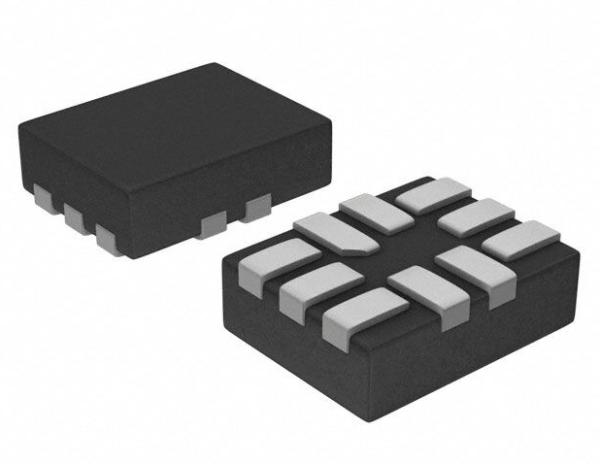

• Space Saving 1.4 mm x 1.8 mm Package UQFN Package

• This is a Pb−Free Device

Typical Applications

• Cellular Phones

• Portable Media Players

Description

The NLAS2750MUTAG is a high-efficiency, low-voltage single-pole double-throw (SPDT)analog switch designed for portable devices, loT applications, and signal routing systems.With an ultra-low on-resistance (0.62 typical) and minimal power consumption, this switchensures high signal integrity while reducing voltage drop and distortion.

Key Features & Benefits

1. Ultra-Low On-Resistance (0.62)- Minimizes signal loss and power dissipation, making itideal for precision analog and digital switching.
2. Wide Voltage Range (1.8V to 5.5v)- Supports multiple logic levels, ensuring compatibilitywith battery-powered devices (Li-ion, 3.3V/5V systems).
3. High-speed switching (Fast Turn-On/Off)- Enables quick signal routing for dataacquisition, audio switching, and multiplexing applications.
4. Robust ESD Protection (±8kV HBM) - Enhances reliability in harsh environments, protectingsensitive circuits from electrostatic discharge.
Compact SOT-23 Package - Saves board space in wearables, smartphones, and loT sensors5.
while allowing easy PCB integration.
6. Low Power Consumption (Near-Zero Leakage Current)- Extends battery life in portableelectronics.
7. RoHS Compliant & Lead-Free- Meets global environmental standards for safemanufacturing and disposal.

INFORMATION

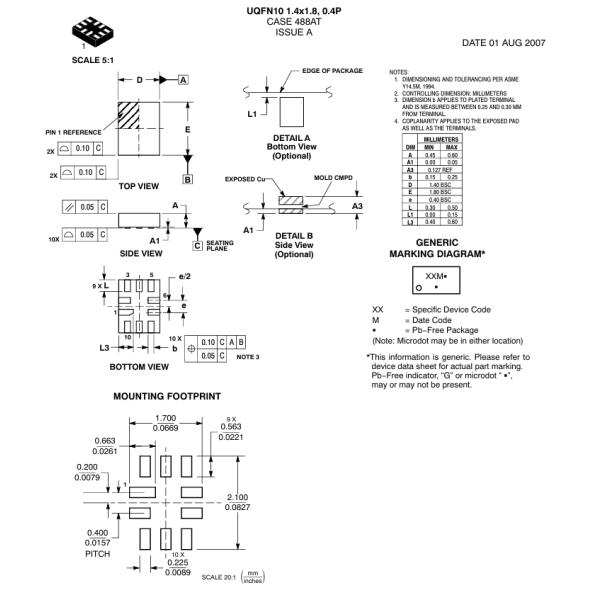

Drawing
