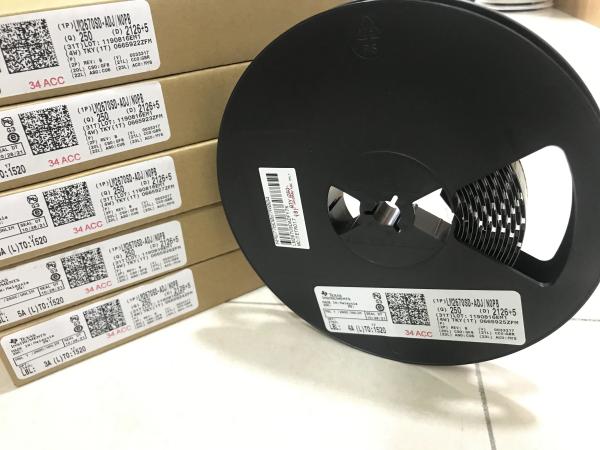

LM2670SD-ADJ

1 Features 1 andbull; Efficiency Up to 94% andbull; Simple and Easy to Design With (Using Off-the Shelf External Components) andbull; 150-mandOmega; DMOSOutput Switch andbull; 3.3-V, 5-V, 12-V Fixed Output and Adjustable (1.2 V to 37 V) Versions andbull; 50-andmicro;A Standby Current When Switched OFF andbull; andplusmn;2%Maximum Output Tolerance Over Full Line and Load Conditions andbull; WideInput Voltage Range: 8 V to 40 V andbull; External Sync Clock Capability (280 kHz to 400 kHz) andbull; 260-kHz Fixed Frequency Internal Oscillator andbull;andndash;40to 125anddeg;C Operating Junction Temperature Range

2 Applications andbull; Simple-to-Design, High Efficiency (andgt;90%) Step Down Switching Regulators andbull; Efficient System Preregulator for Linear Voltage Regulators andbull; Battery Chargers andbull; Communications and Radio Equipment Regulator With Synchronized Clock Frequency

3 Description The LM2670 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics. High efficiency (andgt;90%) is obtained through the use of a low ON resistance DMOS power switch. The series consists of fixed output voltages of 3.3-V, 5-V, and 12-V output version. The SIMPLE SWITCHERandreg; concept provides for a complete design using a minimum number of external components. The switching clock frequency can be provided by an internal fixed frequency oscillator (260 kHz) or from an externally provided clock in the range of 280 kHz to 400 kHz which allows the use of physically smaller sized components. A family of standard inductors for use with the LM2670 are available from several manufacturers to greatly simplify the design process. The external sync clock provides direct and precise control of the output ripple frequency for consistent filtering or frequency spectrum positioning. The LM2670 series also has built-in thermal shutdown, current limiting and an ON/OFF control input that can power down the regulator to a low 50‑andmicro;A quiescent current standby condition. The output voltage is ensured to a andplusmn;2% tolerance.

andnbsp;

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
