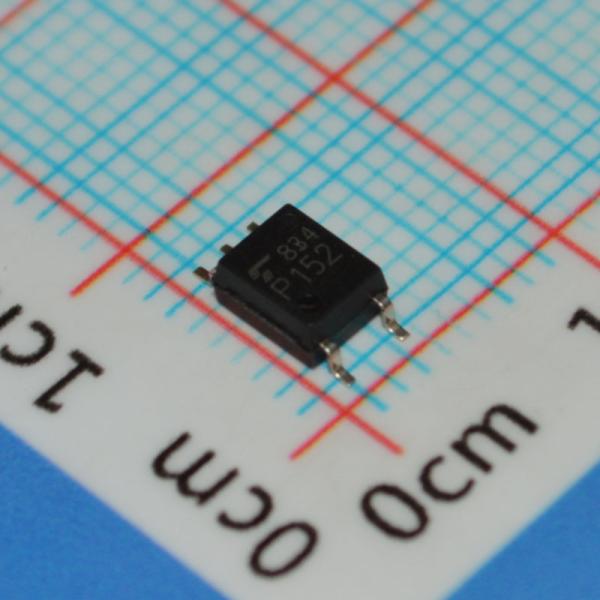

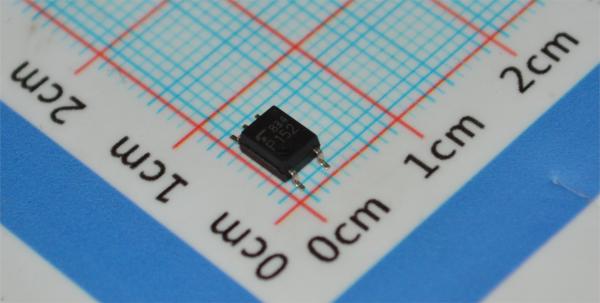

TLP152

Features

Buffer logic type (totem pole output)

Output peak current: ±2.5 A (max)

Operating temperature: -40 to 100

Supply current: 3.0 mA (max)

Supply voltage: 10 to 30 V

Threshold input current: 7.5 mA (max)

Propagation delay time: tpHL = 190 ns (max), tpLH = 170 ns (max)

Common-mode transient immunity: ±20 kV/µs (min)

Isolation voltage: 3750 Vrms (min)

Safety standards

UL-approved: UL1577, File No.E67349

cUL-approved: CSA Component Acceptance Service No.5A File No.E67349

VDE-approved: EN60747-5-5, EN60065 or EN60950-1 (Note 1)

: EN62368-1 (Pending) (Note 1)

CQC-approved: GB4943.1, GB8898 Thailand Factory

Applications

• Plasma Display Panels (PDPs)

• Industrial Inverters

• MOSFET Gate Drivers

• IGBT Gate Drivers

Description

The TLP152 is a photocoupler in an SO6 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. The photodetector IC chip has an internal shield to provide a high common-mode transient immunity of ±20 kV/µs and thus superior noise immunity between the input and output pins. The TLP152 has a totem-pole output that can both sink and source current. It is suitable for directly driving a small IGBT or power MOSFET.

Information

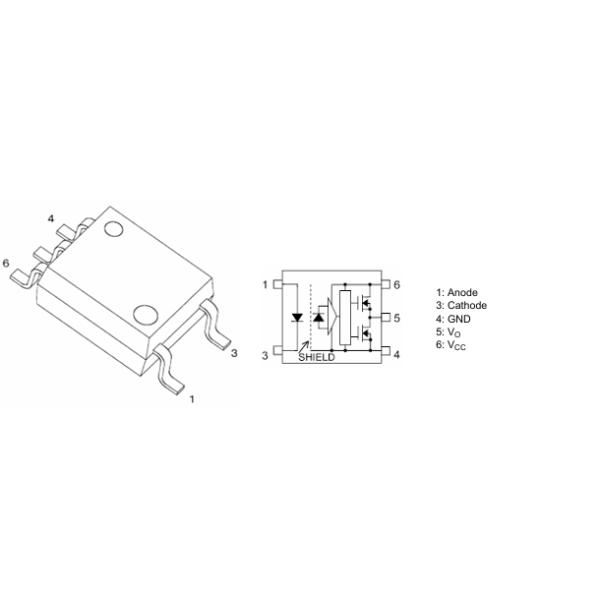

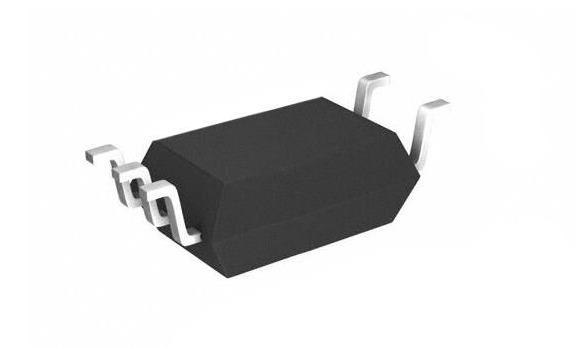

Drawing
