LTC4364IMS-1 4V-80V Surge Stopper Overvoltage/Overcurrent Protection Reverse Supply Protection Undervoltage Lockout -60V Reverse Input Automotive AEC-Q100 MSOP-16 for Industrial and Automotive

Features

• Wide Operating Voltage Range: 4V to 80V

• Withstands Surges Over 80V with VCC Clamp

• Adjustable Output Clamp Voltage

• Ideal Diode Controller Holds Up Output Voltage During Input Brownouts

• Reverse Input Protection to –40V

• Reverse Output Protection to –20V

• Overcurrent Protection

• Low 10μA Shutdown Current at 12V

• Adjustable Fault Timer

• 0.1% Retry Duty Cycle During Faults (LTC4364-2)

• Available in 4mm × 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages

• AEC-Q100 Qualified for Automotive Applications

Applications

• Automotive/Avionic Surge Protection

• Hot Swap/Live Insertion

• Redundant Supply ORing

• Output Port Protection

Description

The LTC®4364 surge stopper with ideal diode controller protects loads from high voltage transients. It limits and regulates the output during an overvoltage event, such as load dump in automobiles, by controlling the voltage drop across an external N-channel MOSFET pass device. The LTC4364 also includes a timed, current limited circuit breaker. In a fault condition, an adjustable fault timer must expire before the pass device is turned off. The LTC4364-1 latches off the pass device while the LTC4364-2 automati cally restarts after a delay. The LTC4364 precisely moni tors the input supply for overvoltage (OV) and undervolt age (UV) conditions. The external MOSFET is held off in undervoltage and auto-retry is disabled in overvoltage. An integrated ideal diode controller drives a second MOSFET to replace a Schottky diode for reverse input protection and output voltage holdup. The LTC4364 con trols the forward voltage drop across the MOSFET and minimizes reverse current transients upon power source failure, brownout or input short.

INFORMATION

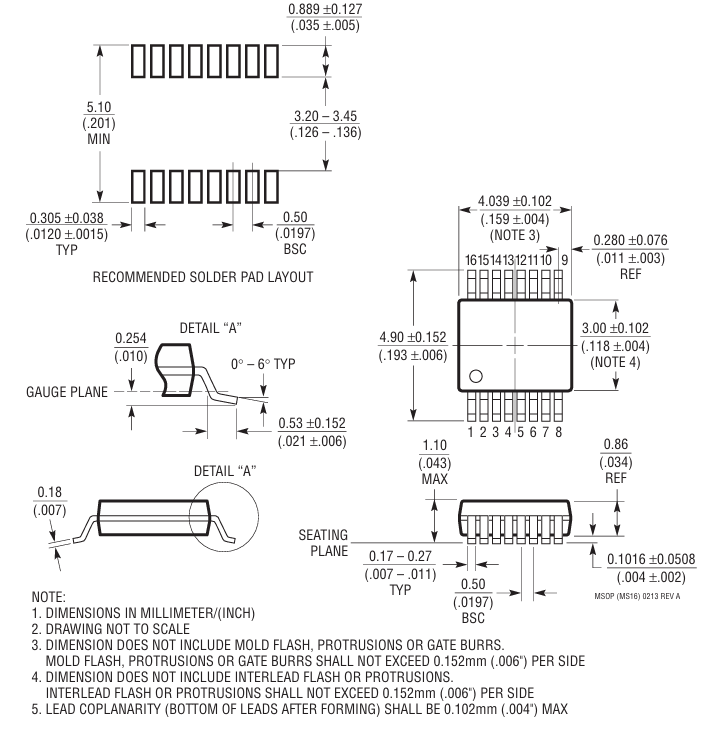

Drawing
