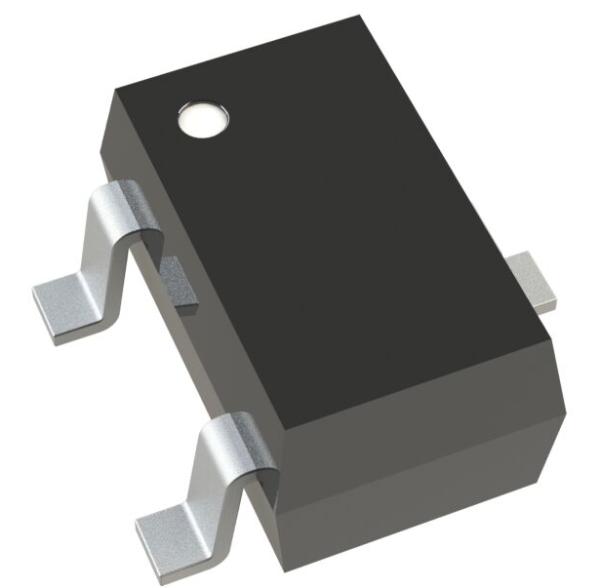

BAS16W 100V 200mA Switching Diode with 4ns Reverse Recovery Dual Series Configuration SOT-323 Package and Tape andamp; Reel Packaging for High-Speed Circuit Design

andnbsp;

Features

Very high switching speed

Low junction capacitance

Low leakage current

Compliant to RoHS (w/o exemp.)

REACH, Conflict Minerals *)

andnbsp;

Applications

Signal processing,High-speed

Switching, Rectifying

Commercial /industrial grade and#39;)

Suffix -Q: AEC-Q101 compliant and#39;)

Suffix -AQ: AEC-Q101 qualified and#39;)

andnbsp;

Description

The BAS16W is a dual series-configuration general-purpose switching diode in a SOT-323 package, designed for high-speed switching applications. lt features a high reverse breakdown voltage of 100V and a continuous forward current capability of 200mA, ensuring stable performance in high-frequency circuits. With an ultra-fast reverse recovery time (4ns), it significantly reduces switching losses and improves system efficiency.

The dual series configuration integrates two diodes in a compact form factor, supporting highdensity PCB layouts. lts miniature sOT-323 package is compatible with automated assembly processes, and the tape and reel packaging meets mass production requirements. Compliant with RoHs standards, this diode is ideal for high-speed rectification, clamping, and logic control circuits in consumer electronics, communication devices, and power management modules.
