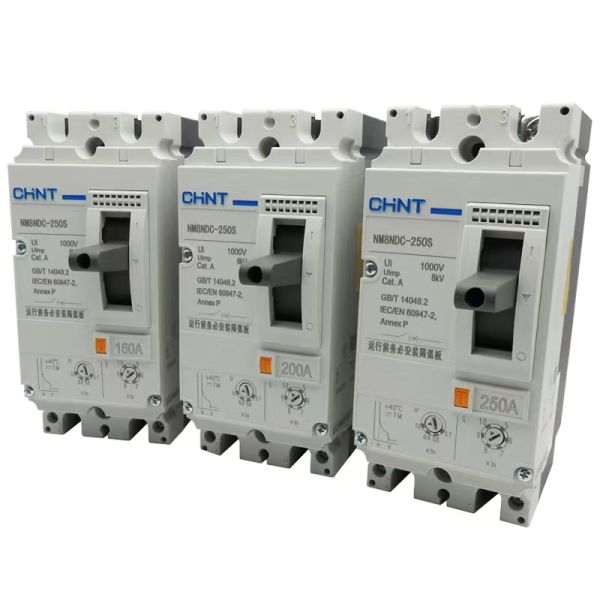

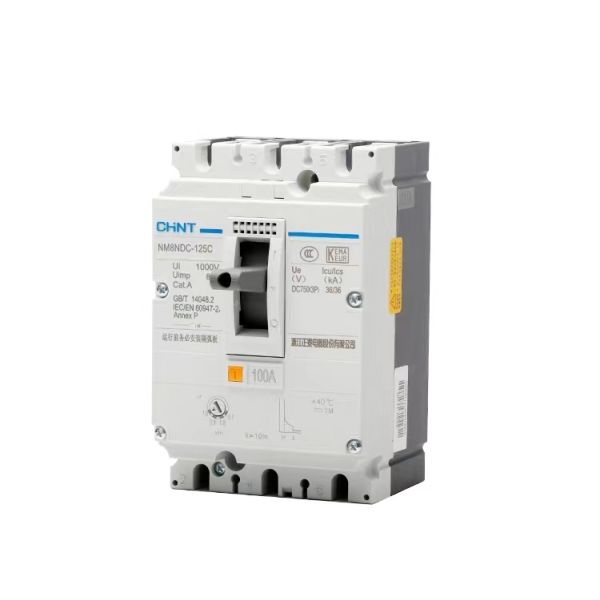

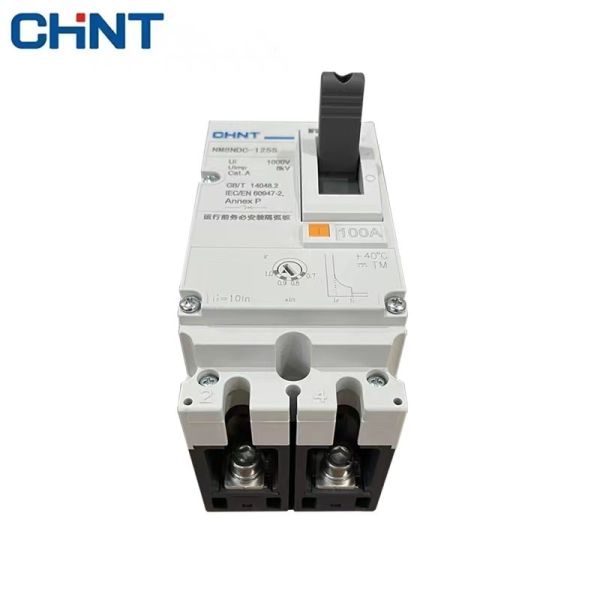

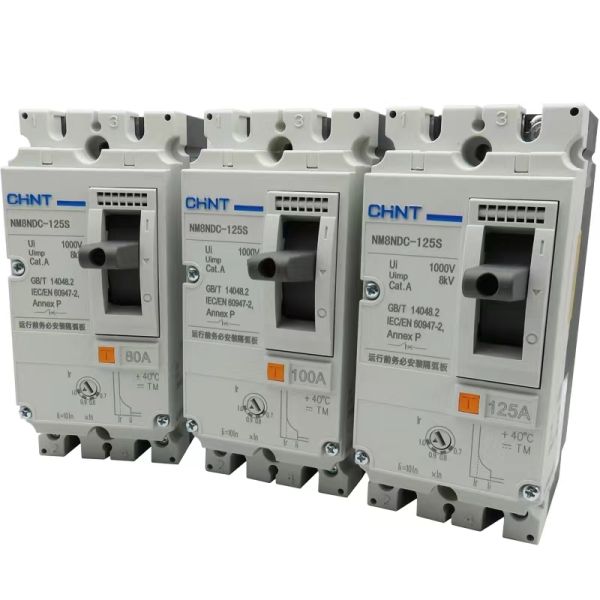

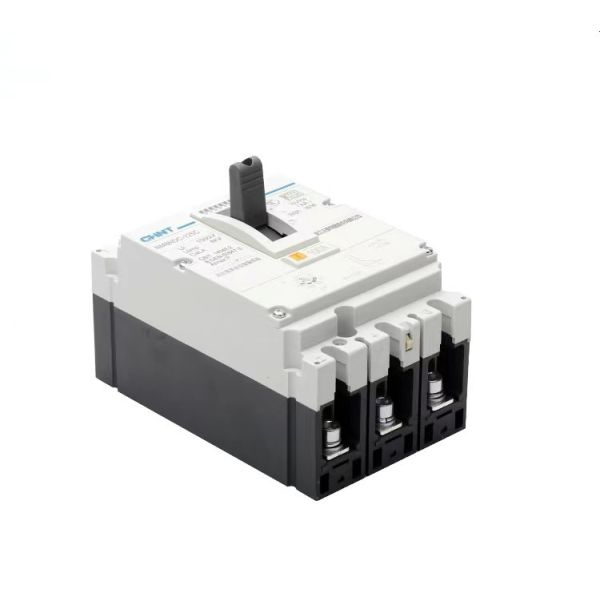

The NM8NDC Series DC MCCB is a specialized circuit breaker engineered specifically for the demands of Direct Current (DC) power systems. Unlike standard AC breakers, the NM8NDC is optimized for the unique arc-quenching requirements of high-voltage solar PV arrays, battery energy storage systems (BESS), and electric vehicle charging infrastructure.

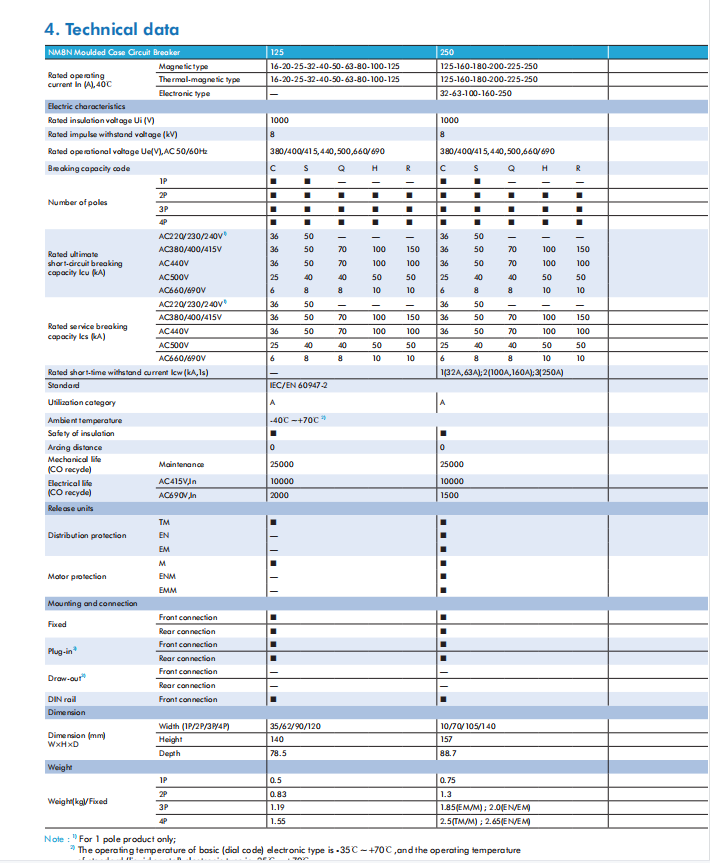

Rated for currents from 50A up to 250A, this 2-pole breaker provides essential protection against overloads and short-circuits. It is designed to handle the high-energy arcs characteristic of DC circuits, ensuring rapid fault isolation to protect expensive inverters and lithium battery banks. With a compact frame and non-polarized wiring capability (on specific models), it is the premier choice for modern renewable energy installations.

• Optimized DC Arc Extinction: Features a reinforced magnetic blow-out system and a specialized arc-chute design that forces the DC arc away from the contacts, extinguishing it safely and extending the device's electrical life.

• High Breaking Capacity: Engineered to handle high short-circuit currents common in large-scale PV strings, providing a high safety margin for utility-scale and commercial solar projects.

• Non-Polarized Wiring: Flexible installation options allow for bi-directional current flow, making it ideal for battery systems that alternate between charging and discharging states.

• Thermal-Magnetic Trip Unit: Provides reliable protection against low-level overloads (thermal) and instantaneous isolation during massive short-circuits (magnetic).

• Industrial-Grade Durability: Housed in a high-strength, flame-retardant molded case that operates reliably in the high-temperature environments typical of outdoor solar combiner boxes.

1. Solar PV String Protection: Installed in combiner boxes or between the PV array and the inverter to isolate high-voltage DC strings.

2. Battery Energy Storage (BESS): Main circuit protection for lithium-ion or lead-acid battery banks in off-grid and hybrid solar systems.

3. EV Charging Stations: DC-side protection for rapid chargers, ensuring safe power delivery from the grid to the vehicle.

4. DC Microgrids: Reliable power management for industrial DC distribution networks and telecommunication power hubs.

• Silver-Alloy Contacts: Every unit is equipped with high-conductivity silver-alloy contacts to minimize voltage drop and prevent contact welding during heavy-load switching.

• Adjustable Settings: Higher amperage models offer adjustable thermal settings, allowing for precision coordination with the specific current ratings of your solar panels or battery BMS.

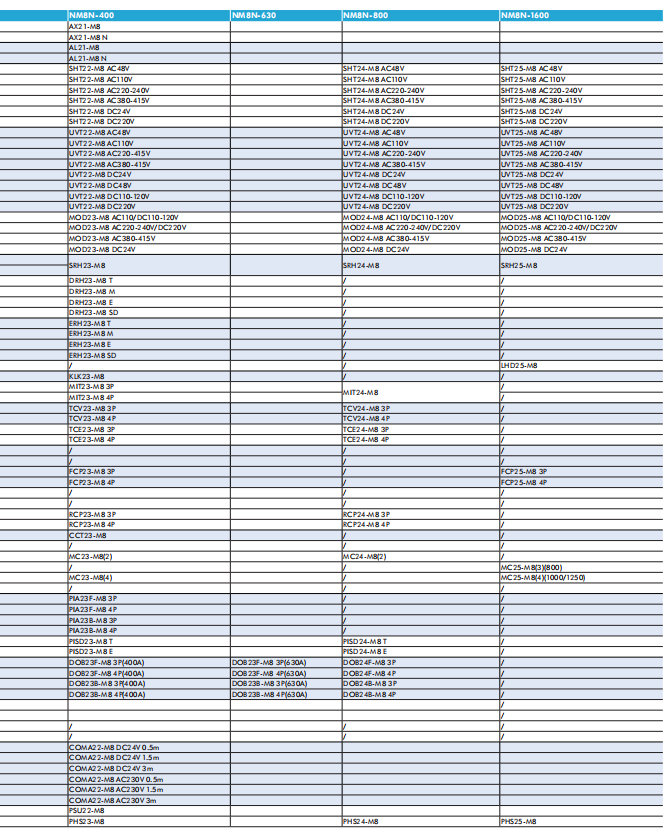

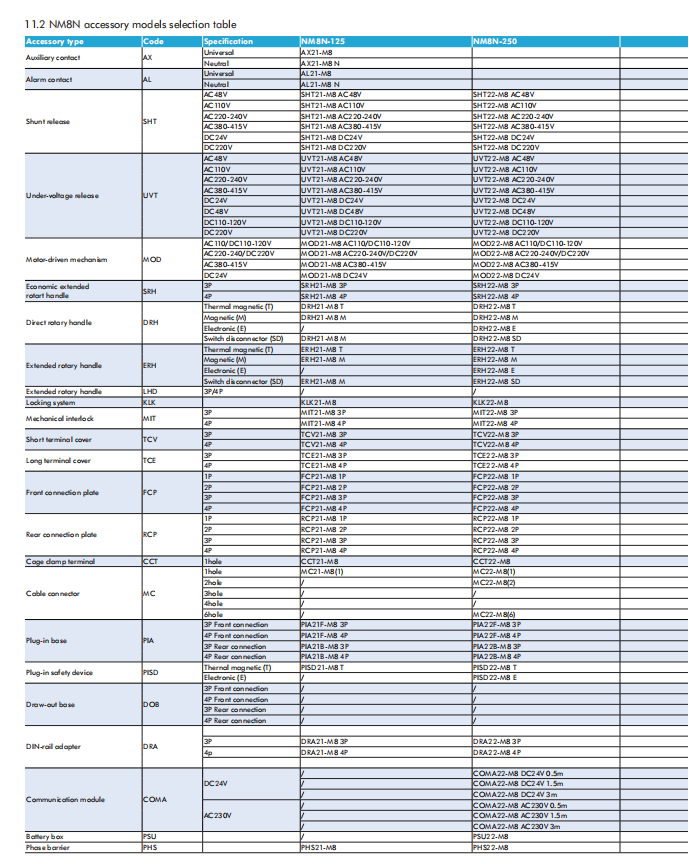

• Accessory Support: Compatible with a full range of internal accessories, including Shunt Trips (for remote emergency shutdown), Auxiliary Contacts, and Alarm Switches.

• Safe Isolation: The toggle handle provides clear "ON/OFF/TRIP" status indication, ensuring maintenance crews can verify the circuit status at a glance.
